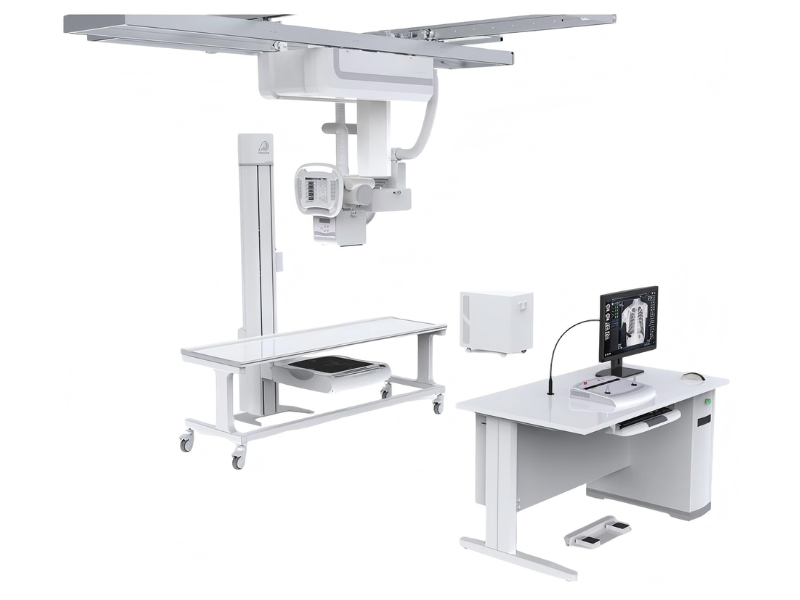

Perlove Ceiling Mounted Dynamic DRF System PLD7600I #

Ceiling Mounted Design with Dynamic Imaging & Mobile Bed – High-Power Flexibility
The PLD7600I features a ceiling mounted tube assembly with a dynamic DRF1717V flat panel detector and a SYC40B mobile bed, combined with a powerful 85kW generator — delivering exceptional output and reliable imaging at a competitive price point.

High-Power Generator for Superior Performance
Powered by an 85kW high-frequency generator with a 500kHz inverter frequency, the system delivers exceptional X-ray output, ultra-short exposure times, and optimized radiation dose for even the most demanding clinical applications.

Extended Exposure Parameters

• Radiography Tube Voltage: 40–150kV

• Radiography Tube Current: 10–1000mA

• Radiography mAs: 0.1–1000mAs

• Fluoroscopy Tube Voltage: 40–125kV

• Continuous Fluoroscopy Current: 0.5–20mA

• Pulsed Fluoroscopy Current: 5–40mA

Supports both standard radiography and dynamic fluoroscopic imaging with extended output capacity.

High-Capacity X-Ray Tube – Maximum Thermal Performance

• Model: E7689X

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 600kHu

• Tube heat capacity: 2000kHu

• Anode speed: 9700rpm

Engineered for sustained high workload with exceptional thermal management and extended tube life.

High-Resolution Dynamic Detector

• Detector model: DRF1717V (dynamic wired)

• Detector size: 17"x17"

• Pixel pitch: 139μm

• Pixel matrix: 3072×3072

• Spatial resolution: 3.7 lp/mm

• Gray scale: 16-bit

• Detector rotation: 0–110°

• Effective coverage: 427mm × 427mm

Captures both static radiographic images and real-time fluoroscopic sequences with reliable clarity.

Mobile Bed (SYC40B) for Simple, Stable Operation

• Load capacity: 200kg

• Detector rotation range: 0–110°

• Chest stand vertical travel: ≥1500mm

The mobile bed design reduces complexity and cost while maintaining patient accessibility.

Comprehensive Ceiling Mounted Positioning

• Suspension lateral travel: ≥1950mm

• Suspension longitudinal travel: ≥2250mm

• Suspension vertical travel: ≥1500mm

• Tube assembly rotation around transverse arm: ±120°

• Ball column rotation: ±135°

Provides full coverage of all standard radiographic and fluoroscopic projections with effortless overhead tube positioning.

Fixed Grids for Consistent Image Quality

• Table grid: 18"x18", 103 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 200 LP/inch, 10:1 ratio, 180cm SID

Ensures scatter radiation is minimized for cleaner, more diagnostic images.

Optional Add-Ons for Enhanced Functionality

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
