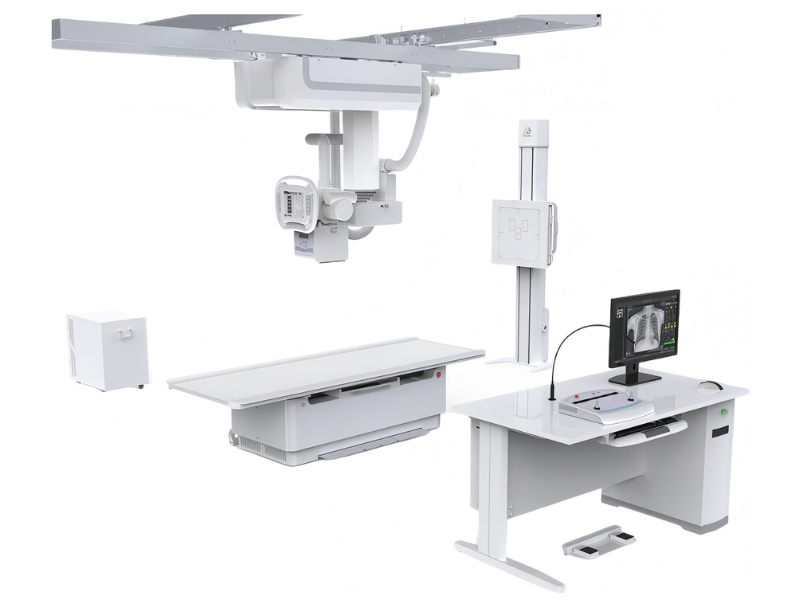

Perlove Ceiling Suspended Digital X-Ray Machine PLD7100A #

Ceiling Suspended Design for Maximum Workflow Efficiency
The PLD7100A features a ceiling suspended tube assembly with a SYC30E lifting bed, offering exceptional coverage and flexibility for high-volume radiology departments. The overhead tube suspension allows unrestricted movement around the patient table.

High-Power Generator for Superior Performance
Powered by a 65kW high-frequency generator with a 500kHz inverter frequency, the system delivers stable X-ray output, short exposure times, and optimized radiation dose for demanding clinical applications.

Wide Exposure Parameter Range

• Radiography Tube Voltage: 40–150kV

• Radiography Tube Current: 10–800mA

• Radiography mAs: 0.1–800mAs

Supports a broad spectrum of diagnostic applications, from pediatric to bariatric and orthopedic imaging.

Canon X-Ray Tube – High Thermal Capacity

• Model: E7254FX

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 400kHu

• Tube heat capacity: 1339kHu

• Anode speed: 9700rpm

Engineered for sustained high workload with excellent thermal management and long tube life.

Dual Detector Configuration for Enhanced Workflow

• Primary detector: PLD1717X (wired, 139μm, 3072×3072, 3.7 lp/mm)

• Secondary detector: PLD1717V3 (wired, 139μm, 3072×3072, 3.7 lp/mm)

• Both detectors: 17"x17" size, 16-bit gray scale

Provides consistent, reliable image quality across both table and chest stand examinations.

Ergonomic Lifting Bed (SYC30E) for Patient Comfort

• Load capacity: 200kg

• Lifting range: 560mm – 880mm (320mm total)

• Longitudinal travel: 1000mm

• Horizontal travel: 260mm

• Box moving longitudinal stroke: 500mm

Easily adjust bed height for patient comfort, accessibility, and operator convenience — ideal for elderly or mobility-impaired patients.

Comprehensive Ceiling Suspension Positioning

• Suspension lateral travel: ≥1950mm

• Suspension longitudinal travel: ≥2250mm

• Suspension vertical travel: ≥1500mm

• Tube assembly rotation around transverse arm: ±120°

• Ball column rotation: ±135°

• Chest stand vertical travel: ≥1500mm

Provides full coverage of all standard radiographic projections with effortless overhead tube positioning.

Fixed Grids for Consistent Image Quality

• Table grid: 18"x18", 103 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 103 LP/inch, 10:1 ratio, 180cm SID

Ensures scatter radiation is minimized for cleaner, more diagnostic images.

Optional Add-Ons for Enhanced Functionality

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
