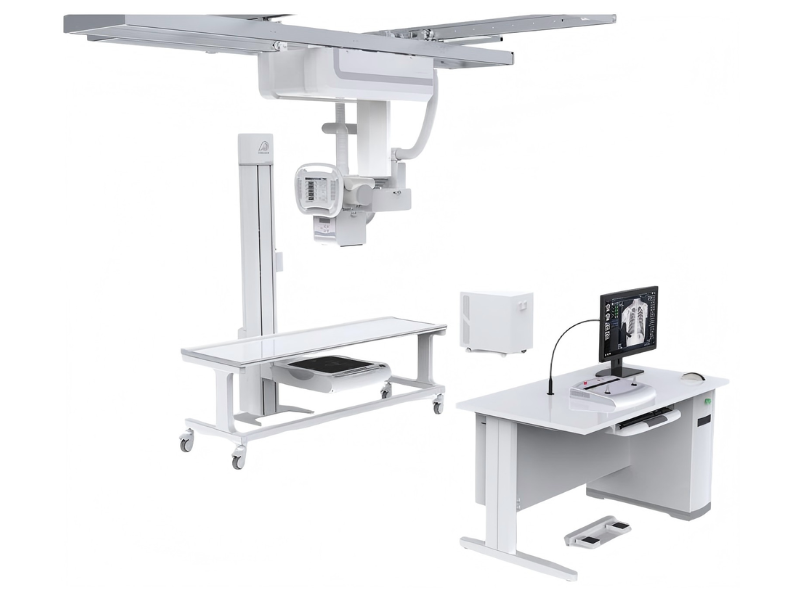

Perlove Ceiling Suspended Digital X-Ray Machine PLD7100F

Ceiling Suspended Design with Wireless Detector & Mobile Bed – Flexible & Cost-Effective
The PLD7100F features a ceiling suspended tube assembly with a wireless PLD1717XE flat panel detector and a SYC40B mobile bed, offering cable-free convenience and overhead tube flexibility at a more accessible price point.

High-Power Generator for Superior Performance
Powered by a 65kW high-frequency generator with a 500kHz inverter frequency, the system delivers stable X-ray output, short exposure times, and optimized radiation dose for demanding clinical applications.

Wide Exposure Parameter Range

• Radiography Tube Voltage: 40–150kV

• Radiography Tube Current: 10–800mA

• Radiography mAs: 0.1–800mAs

Supports a broad spectrum of diagnostic applications, from pediatric to bariatric and orthopedic imaging.

Canon X-Ray Tube – High Thermal Capacity

• Model: E7254FX

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 400kHu

• Tube heat capacity: 1339kHu

• Anode speed: 9700rpm

Engineered for sustained high workload with excellent thermal management and long tube life.

Wireless Detector for Maximum Flexibility

• Detector model: PLD1717XE (wireless)

• Detector size: 17"x17"

• Pixel pitch: 100μm (ultra-fine)

• Pixel matrix: 4267×4267

• Spatial resolution: 5.0 lp/mm

• Gray scale: 16-bit

• Detector rotation: 0–110°

• Effective coverage: 427mm × 427mm

The wireless design allows effortless detector positioning for table, upright, and off-table exams — no cable management required.

Mobile Bed (SYC40B) for Simple, Stable Operation

• Load capacity: 200kg

• Detector rotation range: 0–110°

• Chest stand vertical travel: ≥1500mm

The mobile bed design reduces complexity and cost while maintaining patient accessibility.

Comprehensive Ceiling Suspension Positioning

• Suspension lateral travel: ≥1950mm

• Suspension longitudinal travel: ≥2250mm

• Suspension vertical travel: ≥1500mm

• Tube assembly rotation around transverse arm: ±120°

• Ball column rotation: ±135°

Provides full coverage of all standard radiographic projections with effortless overhead tube positioning.

Fixed Grids for Consistent Image Quality

• Table grid: 18"x18", 103 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 103 LP/inch, 10:1 ratio, 180cm SID

Ensures scatter radiation is minimized for cleaner, more diagnostic images.

Optional Add-Ons for Enhanced Functionality

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
