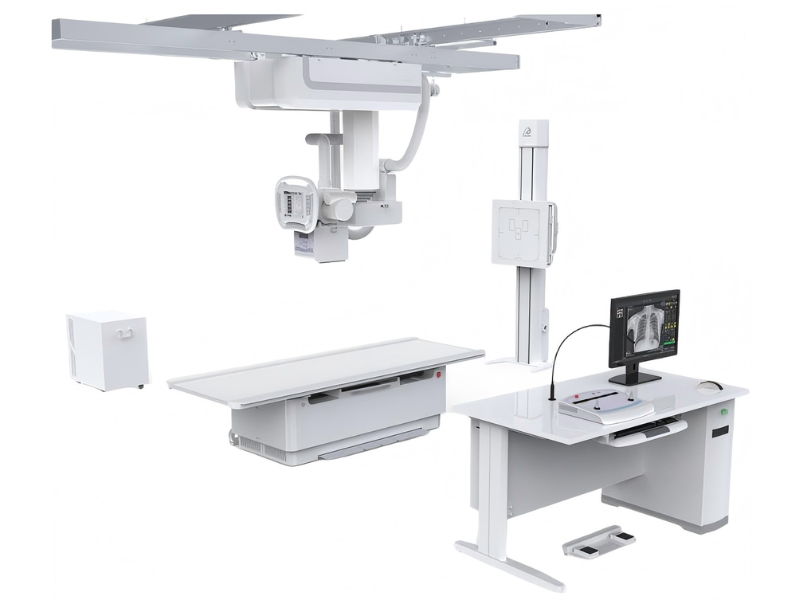

Perlove Ceiling Suspended Digital X-Ray Machine PLD7100I #

Ceiling Suspended Design with Dual Imported Detectors – High-Power Premium Solution
The PLD7100I features a ceiling suspended tube assembly with dual imported FDXA4343R flat panel detectors and a SYC30E lifting bed, combined with a powerful 85kW generator — delivering the highest level of image quality, workflow efficiency, and output capacity for leading hospitals and high-volume imaging centers.

High-Power Generator for Superior Performance
Powered by an 85kW high-frequency generator with a 500kHz inverter frequency, the system delivers exceptional X-ray output, ultra-short exposure times, and optimized radiation dose for even the most demanding clinical applications.

Extended Exposure Parameters

• Radiography Tube Voltage: 40–150kV

• Radiography Tube Current: 10–1000mA

• Radiography mAs: 0.1–1000mAs

Supports a full spectrum of diagnostic applications, from pediatric to bariatric and orthopedic imaging.

High-Capacity X-Ray Tube – Maximum Thermal Performance

• Model: E7689X

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 600kHu

• Tube heat capacity: 2000kHu

• Anode speed: 9700rpm

Engineered for sustained high workload with exceptional thermal management and extended tube life.

Imported Dual Detectors for Premium Image Quality

• Detector model: FDXA4343R (two units, wired)

• Detector size: 17"x17" each

• Pixel pitch: 140μm

• Pixel matrix: 3040×3036

• Spatial resolution: 3.7 lp/mm

• Gray scale: 16-bit

• Effective coverage: 426mm × 425mm

Delivers outstanding image clarity, uniformity, and low noise for confident diagnosis across table and chest stand exams.

Ergonomic Lifting Bed (SYC30E) for Patient Comfort

• Load capacity: 200kg

• Lifting range: 560mm – 880mm (320mm total)

• Longitudinal travel: 1000mm

• Horizontal travel: 260mm

• Box moving longitudinal stroke: 500mm

Easily adjust bed height for patient comfort, accessibility, and operator convenience — ideal for elderly or mobility-impaired patients.

Comprehensive Ceiling Suspension Positioning

• Suspension lateral travel: ≥1950mm

• Suspension longitudinal travel: ≥2250mm

• Suspension vertical travel: ≥1500mm

• Tube assembly rotation around transverse arm: ±120°

• Ball column rotation: ±135°

• Chest stand vertical travel: ≥1500mm

Provides full coverage of all standard radiographic projections with effortless overhead tube positioning.

Fixed Grids for Consistent Image Quality

• Table grid: 18"x18", 103 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 103 LP/inch, 10:1 ratio, 180cm SID

Ensures scatter radiation is minimized for cleaner, more diagnostic images.

Optional Add-Ons for Enhanced Functionality

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
