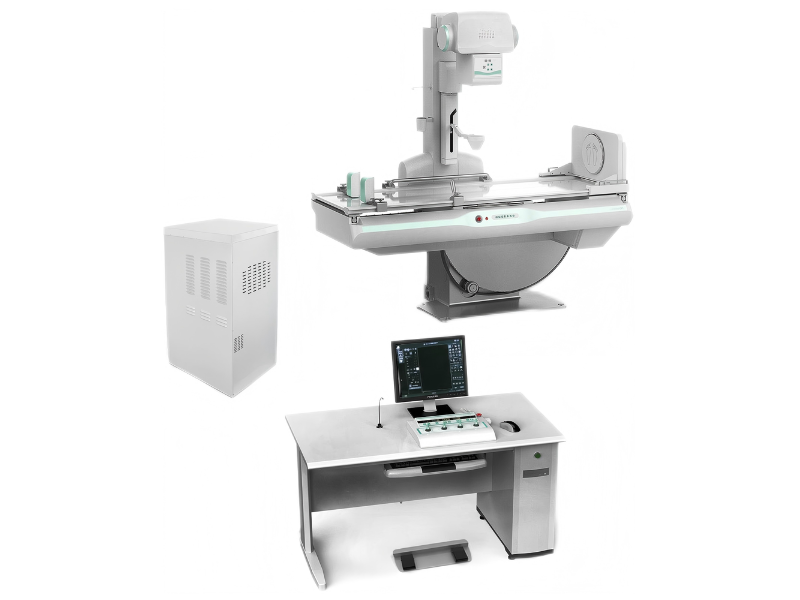

Perlove Dynamic Digital Radiography and Fluoroscopy System PLD6000 #

Compact Dynamic System for Essential Fluoroscopy
The PLD6000 features a ZDC20F configuration, offering a compact and cost-effective solution for essential radiographic and fluoroscopic procedures — ideal for clinics entering the dynamic imaging space.

High-Power Generator for Reliable Performance
Powered by a 65.5kW high-frequency generator with a 500kHz inverter frequency, the system delivers stable X-ray output, short exposure times, and optimized patient dose for routine clinical applications.

Comprehensive Exposure Parameters

• Radiography Tube Voltage: 40–150kV

• Radiography Tube Current: 10–800mA

• Radiography mAs: 0.1–800mAs

• Fluoroscopy Tube Voltage: 40–125kV

• Continuous Fluoroscopy Current: 0.5–10mA

• Pulsed Fluoroscopy Current: 5–20mA

Supports both standard radiography and dynamic fluoroscopic imaging in one integrated system.

Canon X-Ray Tube – Proven Reliability

• Model: E7252X

• Dual focus: 0.6/1.2mm (27kW/75kW)

• Target angle: 12°

• Anode heat capacity: 300kHu

• Tube heat capacity: 1250kHu

• Anode speed: 9700rpm

Engineered for consistent performance in routine clinical environments.

High-Resolution Dynamic Detector

• Detector model: Domestic FPD (DRF-1717A)

• Detector size: 17"x17"

• Pixel pitch: 139μm

• Pixel matrix: 3072×3072

• Spatial resolution: ≥3.7 lp/mm

• Gray scale: 16-bit

• Maximum capture frame rate: 30 frames/second

Captures both static radiographic images and real-time fluoroscopic sequences with reliable clarity.

Interchangeable Grids for Optimal Image Quality

• Grid for 100cm SID: 498.5mm × 449mm, 230 LP/inch, 10:1 ratio

• Grid for 180cm SID: 498.5mm × 449mm, 103 LP/inch, 10:1 ratio

• Manual switching between grids for table and chest stand applications

Reduces scatter radiation for cleaner images across different SID requirements.

Patient Bed for Routine Examinations

• Load capacity: 200kg

• Bed height from floor: 934mm

• Horizontal travel: 220mm

• Longitudinal travel: 1000mm

• Body tilt range: +90° / -25°

Designed for patient comfort and ease of positioning.

Comprehensive Positioning Capabilities

• SID range: 1000mm – 1800mm

• Shooting device travel: 1000mm

• Tube swing: Not available

Provides essential coverage for standard radiographic and fluoroscopic projections.

Optional Add-Ons for Enhanced Functionality

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
