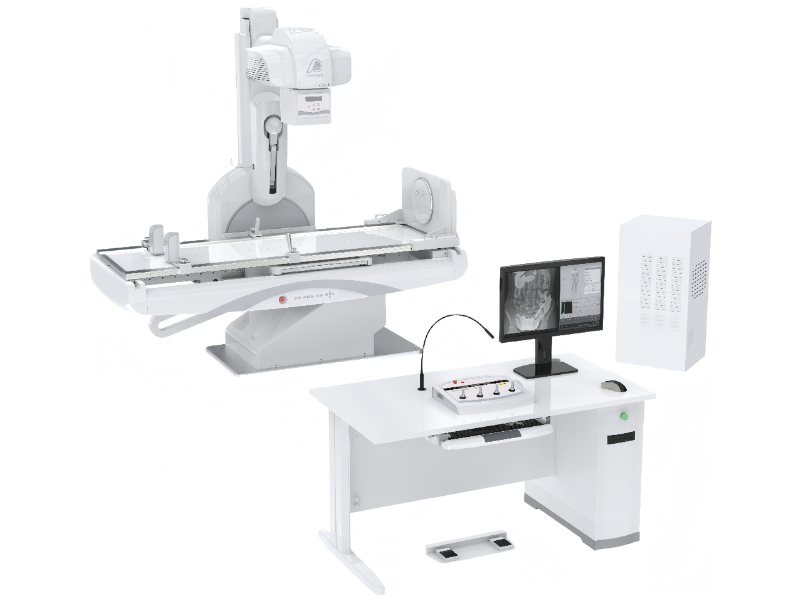

Perlove Dynamic Digital Radiography and Fluoroscopy System PLD8000B #

U-Arm Dynamic Design for Versatile Examinations
The PLD8000B features a U-arm configuration integrated with a SYC40 floating bed, offering exceptional flexibility for both radiographic and fluoroscopic procedures. The system is designed to handle a wide range of diagnostic applications with ease.

High-Power Generator for Reliable Performance
Powered by a 65.5kW high-frequency generator with a 440kHz inverter frequency, the system delivers stable X-ray output, short exposure times, and optimized patient dose for demanding clinical environments.

Comprehensive Exposure Parameters

• Radiography Tube Voltage: 40–150kV

• Radiography Tube Current: 10–800mA

• Radiography mAs: 0.1–800mAs

• Fluoroscopy Tube Voltage: 40–125kV

• Continuous Fluoroscopy Current: 0.5–10mA

• Pulsed Fluoroscopy Current: 5–20mA

Supports both standard radiography and dynamic fluoroscopic imaging in one integrated system.

Canon X-Ray Tube – Proven Reliability

• Model: E7254FX

• Dual focus: 0.6/1.2mm (40kW/102kW)

• Target angle: 12°

• Anode heat capacity: 400kHu

• Tube heat capacity: 1339kHu

• Anode speed: 9700rpm

Engineered for consistent performance in high-volume clinical environments.

High-Resolution Dynamic Detector

• Detector model: Domestic FPD (DRF-1717RF)

• Detector size: 17"x17"

• Pixel pitch: 140μm

• Pixel matrix: 3072×3072

• Spatial resolution: ≥3.7 lp/mm

• Gray scale: 16-bit

• Maximum capture frame rate: 30 frames/second

Captures both static radiographic images and real-time fluoroscopic sequences with excellent clarity.

Interchangeable Grids for Optimal Image Quality

• Grid size: 18"x18", 230 LP/inch, 10:1 ratio

• One grid for 100cm SID, one grid for 180cm SID

• Manual switching between grids for table and chest stand applications

Reduces scatter radiation for cleaner images across different SID requirements.

U-Arm Positioning Flexibility

• U-arm rotation: +130° / -40°

• Detector rotation (loxosis): +30° / -30°

• U-arm vertical lifting range: 500mm – 1650mm

• SID range: 1000mm – 1800mm

Allows comprehensive coverage for various exam angles and patient setups.

Patient Bed with Excellent Load Capacity

• Load capacity: 200kg

• Bed height from floor: 800mm

• Bed surface travel range: 860mm

Designed for patient comfort and ease of positioning.

Optional Add-Ons for Enhanced Functionality

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
