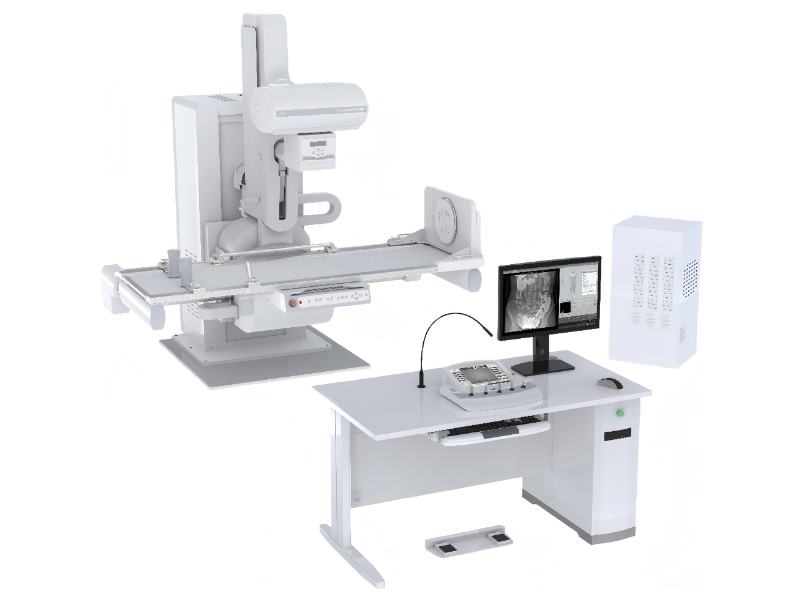

Perlove Dynamic Digital Radiography and Fluoroscopy System PLD8700 #

High-Performance Dynamic System for Advanced Fluoroscopy
The PLD8700 features a ZDC60E configuration, offering high-powered performance for demanding radiographic and fluoroscopic procedures — ideal for hospitals and imaging centers requiring advanced dynamic imaging capabilities.

High-Power Generator for Superior Output
Powered by a 65.5kW high-frequency generator with a 500kHz inverter frequency, the system delivers stable X-ray output, short exposure times, and optimized patient dose for a wide range of clinical applications.

Comprehensive Exposure Parameters

• Radiography Tube Voltage: 40–150kV

• Radiography Tube Current: 10–800mA

• Radiography mAs: 0.1–800mAs

• Fluoroscopy Tube Voltage: 40–125kV

• Continuous Fluoroscopy Current: 0.5–10mA

• Pulsed Fluoroscopy Current: 5–20mA

Supports both standard radiography and dynamic fluoroscopic imaging in one integrated system.

Canon X-Ray Tube – High Thermal Capacity

• Model: E7254FX

• Dual focus: 0.6/1.2mm (40kW/102kW)

• Target angle: 12°

• Anode heat capacity: 400kHu

• Tube heat capacity: 1339kHu

• Anode speed: 9700rpm

Engineered for sustained high workload with excellent thermal management and long tube life.

High-Resolution Dynamic Detector – 100μm Pixel Pitch

• Detector model: Domestic FPD (DRF-1717LX)

• Detector size: 17"x17"

• Pixel pitch: 100μm (ultra-fine)

• Pixel matrix: 4302×4302

• Spatial resolution: ≥3.7 lp/mm

• Gray scale: 16-bit

• Maximum capture frame rate: 30 frames/second

Delivers exceptional image detail and clarity for both static and dynamic imaging.

Interchangeable Grids for Optimal Image Quality

• Grid for 100cm SID: 498.5mm × 449mm, 230 LP/inch, 10:1 ratio

• Grid for 180cm SID: 498.5mm × 449mm, 230 LP/inch, 10:1 ratio

• Manual switching between grids for table and chest stand applications

Reduces scatter radiation for cleaner images across different SID requirements.

Patient Bed with Full Positioning Flexibility

• Load capacity: 200kg

• Lifting range: 550mm – 1350mm (800mm total)

• Horizontal travel: 320mm

• Longitudinal travel: 1300mm

• Body tilt range: +90° / -90°

Provides exceptional patient positioning for a wide range of examinations.

Comprehensive Positioning Capabilities

• SID range: 1000mm – 1800mm

• Shooting device travel: 1300mm

• Tube swing: +45° / -45°

Offers full coverage for all standard radiographic and fluoroscopic projections.

Optional Add-Ons for Enhanced Functionality

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
