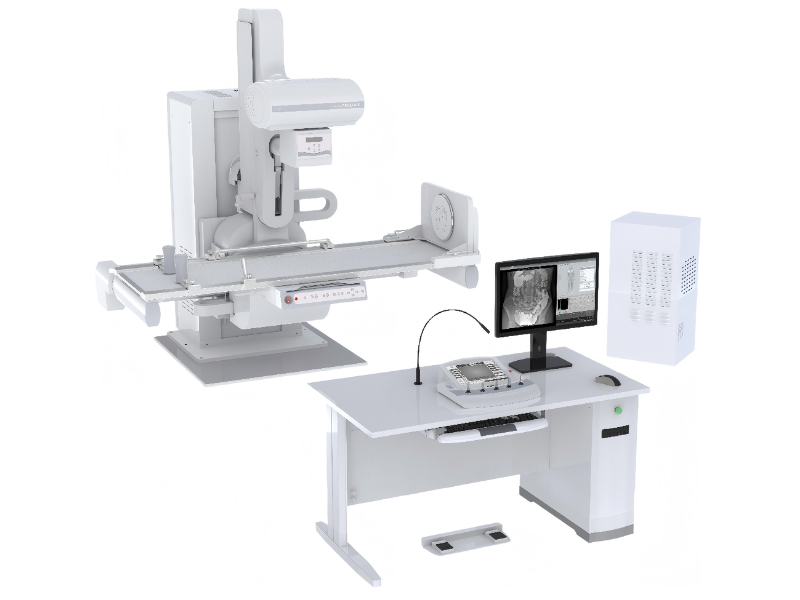

Perlove Dynamic Digital Radiography and Fluoroscopy System PLD9600D #

CE-Certified High-Power Dynamic System with Maximum Performance
The PLD9600D features a ZDC60E configuration with CE certification, offering the highest level of power and performance for demanding radiographic and fluoroscopic procedures — ideal for leading hospitals and imaging centers requiring compliance with European medical device regulations.

High-Power Generator for Exceptional Output
Powered by an 80kW (84kW) high-frequency generator with a 500kHz inverter frequency, the system delivers exceptional X-ray output, ultra-short exposure times, and optimized radiation dose for even the most challenging clinical applications.

Extended Exposure Parameters

• Radiography Tube Voltage: 40–150kV

• Radiography Tube Current: 10–1000mA

• Radiography mAs: 0.1–1000mAs

• Fluoroscopy Tube Voltage: 40–125kV

• Continuous Fluoroscopy Current: 0.5–10mA

• Pulsed Fluoroscopy Current: 5–20mA

Supports both standard radiography and dynamic fluoroscopic imaging with maximum output capacity.

High-Capacity X-Ray Tube – Maximum Thermal Performance

• Model: E7869X

• Dual focus: 0.6/1.2mm

• Target angle: 12°

• Anode heat capacity: 600kHu

• Tube heat capacity: 2000kHu

• Anode speed: 9700rpm

Engineered for sustained high workload with exceptional thermal management and extended tube life.

High-Resolution Dynamic Detector

• Detector brand: Mercu1717V

• Detector size: 17"x17"

• Pixel pitch: 139μm

• Pixel matrix: 3072×3072

• Spatial resolution: ≥3.7 lp/mm

• Gray scale: 16-bit

• Maximum capture frame rate: 30 frames/second

Captures both static radiographic images and real-time fluoroscopic sequences with excellent clarity.

Interchangeable Grids for Optimal Image Quality

• Grid size: 498.5mm × 449mm, 230 LP/inch, 10:1 ratio

• One grid for 100cm SID, one grid for 180cm SID

• Manual switching between grids for table and chest stand applications

Reduces scatter radiation for cleaner images across different SID requirements.

Patient Bed with Full Positioning Flexibility

• Load capacity: 200kg

• Lifting range: 550mm – 1350mm (800mm total)

• Horizontal travel: 300mm (320mm)

• Body tilt range: +90° / -90°

Provides exceptional patient positioning for a wide range of examinations.

Comprehensive Positioning Capabilities

• SID range: 1000mm – 1800mm

• Shooting device travel: 1300mm

• Tube swing: +45° / -45°

Offers full coverage for all standard radiographic and fluoroscopic projections.

Power Supply Requirements

• Voltage: 400V ± 40V

• Frequency: 50Hz ± 1Hz

• Capacity: 125kVA

• Internal resistance: ≤0.11Ω

Optional Add-Ons for Enhanced Functionality

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
