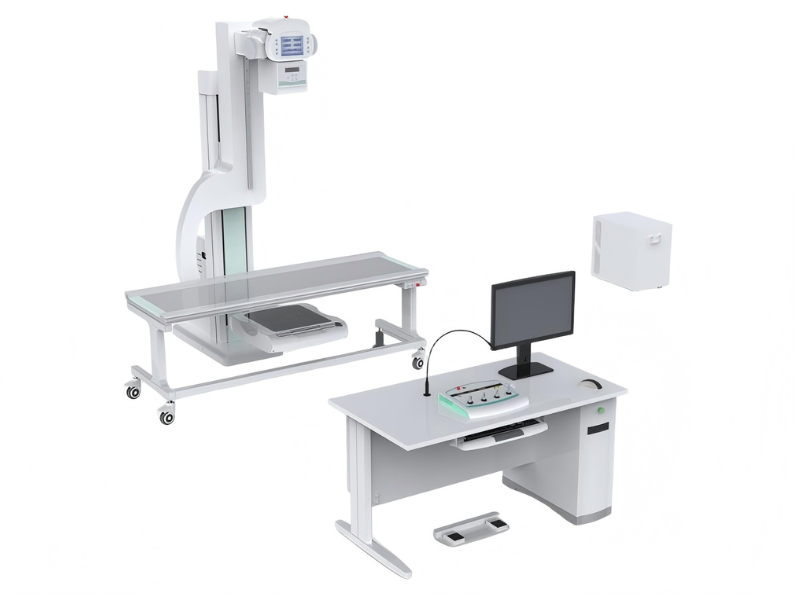

Perlove Dynamic Digital Radiography & Fluoroscopy System PLD7900A #

Versatile U-Arm Design for Flexible Positioning
The PLD7900A features a U-arm configuration with a mobile simple bed, offering exceptional flexibility for both radiographic and fluoroscopic examinations. The U-arm supports -40° to +130° rotation, making it ideal for a wide range of diagnostic procedures.

High-Performance Generator for Reliable Imaging
Powered by a 50kW high-frequency generator with a 500kHz inverter frequency, the system delivers stable X-ray output, short exposure times, and optimized patient dose.

Comprehensive Exposure Parameters

• Radiography Tube Voltage: 40–150kV

• Radiography Tube Current: 10–630mA

• Radiography mAs: 0.1–630mAs

• Fluoroscopy Tube Voltage: 40–125kV

• Continuous Fluoroscopy Current: 0.5–20mA

• Pulsed Fluoroscopy Current: 5–40mA

Supports both standard radiography and dynamic fluoroscopic imaging in one system.

Domestic X-Ray Tube – Reliable Performance

• Model: XQG50 (domestic)

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 300kHu

• Anode speed: 8400rpm

Engineered for consistent performance in demanding clinical environments.

High-Resolution Dynamic Detector

• Detector model: DRF-1717A

• Detector size: 17"x17"

• Pixel pitch: 139μm

• Pixel matrix: 3072×3072

• Spatial resolution: 3.7 lp/mm

• Gray scale: 16-bit

Captures both static radiographic images and real-time fluoroscopic sequences with exceptional clarity.

Interchangeable Grids for Optimal Image Quality

• Two interchangeable grids: 200 LP/inch, 10:1 ratio

• Focal distances: 100cm and 180cm

• Manual switching for table and chest stand applications

Reduces scatter radiation for cleaner images across different SID requirements.

User-Friendly Mobile Bed

• Bed dimensions: 2010mm × 650mm × 720mm

• Load capacity: 200kg

• Longitudinal travel: ≥860mm

• Bed height: ≤800mm

Simple, mobile design for easy patient access and positioning.

Flexible U-Arm Positioning

• U-arm vertical lifting range: 1150mm

• SID range: 1000mm – 1800mm

• Detector rotation (loxosis): -30° to +30°

Allows comprehensive coverage for various exam angles and patient setups.

Optional Add-Ons for Enhanced Functionality

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
