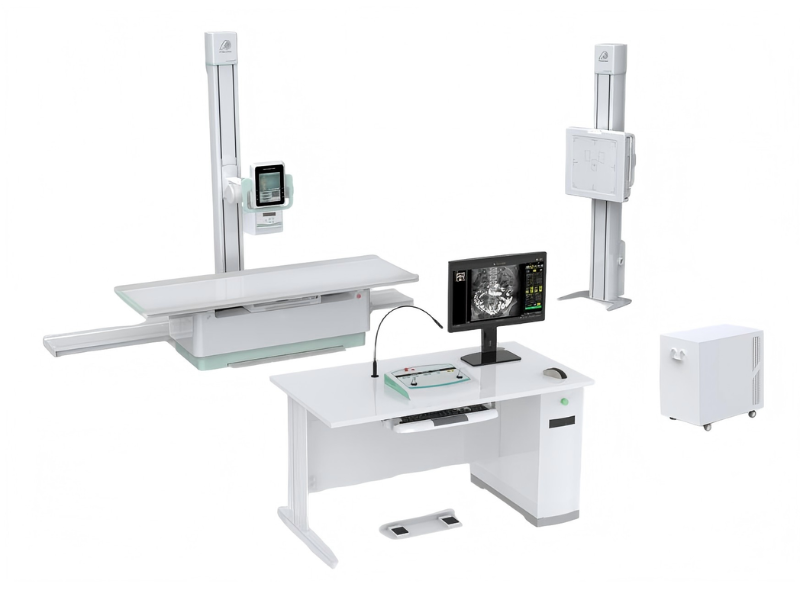

Perlove Dynamic Digital Radiography & Fluoroscopy System PLD7900F #

Lifting Bed with Single Panel – Ergonomic Excellence
The PLD7900F features a lifting bed paired with a single high-resolution DRF-1717LX flat panel detector, offering exceptional patient accessibility and comfort for both radiographic and fluoroscopic examinations.

High-Power Generator for Superior Performance
Powered by a 65.5kW high-frequency generator with a 500kHz inverter frequency, the system delivers stable X-ray output, short exposure times, and optimized radiation dose for demanding clinical applications.

Comprehensive Exposure Parameters

• Radiography Tube Voltage: 40–150kV

• Radiography Tube Current: 10–800mA

• Radiography mAs: 0.1–800mAs

• Fluoroscopy Tube Voltage: 40–125kV

• Continuous Fluoroscopy Current: 0.5–20mA

• Pulsed Fluoroscopy Current: 5–40mA

Supports both standard radiography and dynamic fluoroscopic imaging in one integrated system.

Canon X-Ray Tube – Proven Reliability

• Model: E7252X

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 300kHu

• Thermal heat capacity: 1250kHu

• Anode speed: 9700rpm

Engineered for high-volume workloads with consistent, reliable output.

High-Resolution Dynamic Detector – 100μm Pixel Pitch

• Detector model: DRF-1717LX

• Detector size: 17"x17"

• Pixel pitch: 100μm (ultra-fine)

• Pixel matrix: 4302×4302

• Spatial resolution: 5.0 lp/mm

• Gray scale: 16-bit

Delivers exceptional image detail and clarity for both static and dynamic imaging.

Ergonomic Lifting Bed for Patient Comfort

• Load capacity: 200kg

• Bed lifting range: 220mm

• Minimum bed height: 500mm

• Horizontal travel: 260mm

• Longitudinal travel: 1000mm

Easily adjust bed height for patient comfort, accessibility, and operator convenience — ideal for elderly or mobility-impaired patients.

Fixed Grids for Consistent Image Quality

• Table grid: 18"x18", 200 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 200 LP/inch, 10:1 ratio, 180cm SID

Ensures scatter radiation is minimized for cleaner, more diagnostic images.

Comprehensive Positioning Capabilities

• Tube column longitudinal travel: 2500mm

• Vertical tube travel: 1300mm

• Ball tube rotation (bull's head): ±90°

• Bulb assembly rotation around column: ±180°

• Chest stand vertical travel: 1500mm

• Box moving longitudinal stroke: 500mm

Provides full coverage of all standard radiographic and fluoroscopic projections.

Optional Add-Ons for Enhanced Functionality

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
