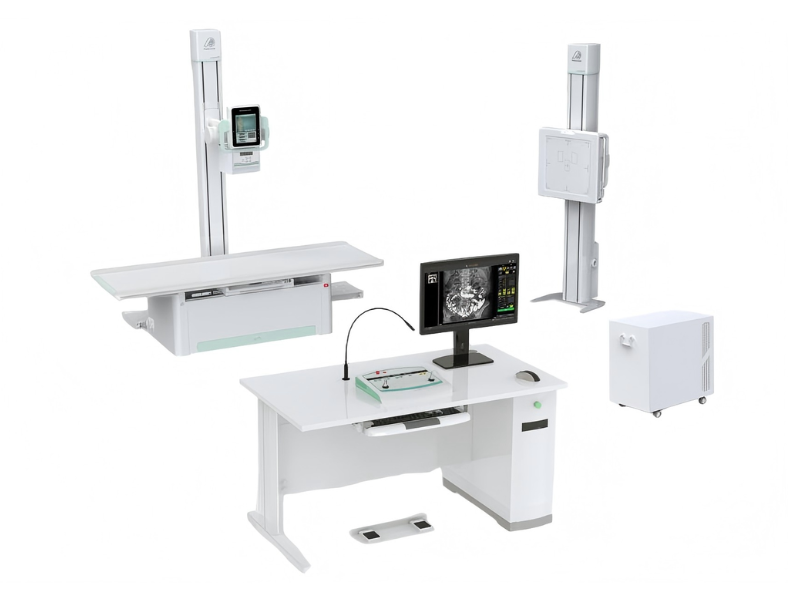

Perlove Dynamic Digital Radiography & Fluoroscopy System PLD7900H #

Four-Way Floating Bed with Single Panel – High-Resolution Imaging
The PLD7900H features a four-way floating bed paired with a single DRF-1717V flat panel detector, offering precise patient positioning and reliable image quality for both radiographic and fluoroscopic examinations.

High-Frequency Generator for Stable Performance
Powered by a 50kW high-frequency generator with a 500kHz inverter frequency, the system delivers consistent X-ray output, short exposure times, and optimized radiation dose.

Comprehensive Exposure Parameters

• Radiography Tube Voltage: 40–150kV

• Radiography Tube Current: 10–630mA

• Radiography mAs: 0.1–630mAs

• Fluoroscopy Tube Voltage: 40–125kV

• Continuous Fluoroscopy Current: 0.5–20mA

• Pulsed Fluoroscopy Current: 5–40mA

Supports both standard radiography and dynamic fluoroscopic imaging in one integrated system.

Domestic X-Ray Tube – Reliable Performance

• Model: XQG50 (domestic)

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 300kHu

• Thermal heat capacity: 900KJ / 1300kHu

• Anode speed: 8400rpm

Engineered for consistent performance in demanding clinical environments.

High-Resolution Dynamic Detector

• Detector model: DRF-1717V

• Detector size: 17"x17"

• Pixel pitch: 139μm

• Pixel matrix: 3072×3072

• Spatial resolution: 3.7 lp/mm

• Gray scale: 16-bit

• Effective coverage: 427mm × 427mm

Captures both static radiographic images and real-time fluoroscopic sequences with reliable clarity.

Four-Way Floating Bed for Optimal Patient Positioning

• Bed dimensions: 2250mm × 810mm × 550mm

• Load capacity: 200kg

• Horizontal travel: 260mm

• Longitudinal travel: 1000mm

• Minimum bed height: 550mm

Enables precise patient positioning with effortless bed movement in all four directions.

Fixed Grids for Consistent Image Quality

• Table grid: 18"x18", 200 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 200 LP/inch, 10:1 ratio, 180cm SID

Ensures scatter radiation is minimized for cleaner, more diagnostic images.

Comprehensive Positioning Capabilities

• Tube column longitudinal travel: 1500mm

• Vertical tube travel: 1300mm

• Ball tube rotation (bull's head): ±90°

• Bulb assembly rotation around column: ±180°

• Chest stand vertical travel: 1500mm

• Box moving longitudinal stroke: 500mm

Provides full coverage of all standard radiographic and fluoroscopic projections.

Optional Add-Ons for Enhanced Functionality

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
