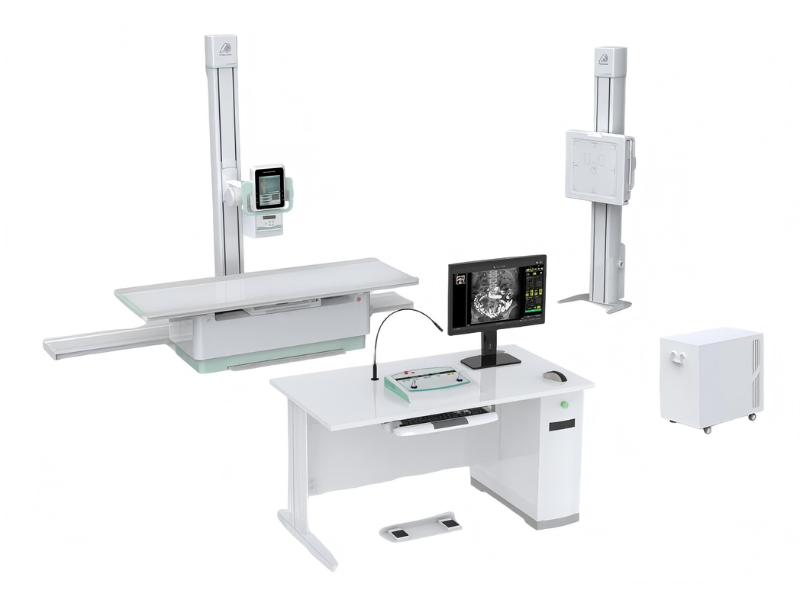

Perlove Dynamic Digital Radiography & Fluoroscopy System PLD7900L #

Lifting Bed with Dual Panels – The Ultimate Dynamic DRF Solution
The PLD7900L features a lifting bed with dual flat panel detectors (DRF-1717V + PLD-1717X) , combining exceptional patient accessibility with seamless switching between table and chest stand imaging — the premier choice for high-volume departments demanding both radiography and fluoroscopy at the highest level.

High-Power Generator for Superior Output
Powered by a 65.5kW high-frequency generator with a 500kHz inverter frequency, the system delivers stable X-ray production, ultra-short exposure times, and optimized radiation dose for even the most challenging procedures.

Comprehensive Exposure Parameters

• Radiography Tube Voltage: 40–150kV

• Radiography Tube Current: 10–800mA

• Radiography mAs: 0.1–800mAs

• Fluoroscopy Tube Voltage: 40–125kV

• Continuous Fluoroscopy Current: 0.5–20mA

• Pulsed Fluoroscopy Current: 5–40mA

Supports both standard radiography and dynamic fluoroscopic imaging in one integrated system.

Canon X-Ray Tube – Proven Reliability

• Model: E7252X

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 300kHu

• Thermal heat capacity: 1250kHu

• Anode speed: 9700rpm

Engineered for high-volume workloads with consistent, reliable output.

Dual Detector Configuration for Enhanced Workflow

• Primary detector: DRF-1717V (139μm, 3072×3072, 3.7 lp/mm)

• Secondary detector: PLD-1717X (139μm, 3072×3072, 3.7 lp/mm)

• Both detectors: 17"x17" size, 16-bit gray scale

Provides consistent, reliable image quality across both table and chest stand examinations.

Ergonomic Lifting Bed for Patient Comfort

• Load capacity: 200kg

• Bed lifting range: 220mm

• Minimum bed height: 500mm

• Horizontal travel: 260mm

• Longitudinal travel: 1000mm

Easily adjust bed height for patient comfort, accessibility, and operator convenience — ideal for elderly or mobility-impaired patients.

Fixed Grids for Consistent Image Quality

• Table grid: 18"x18", 103 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 200 LP/inch, 10:1 ratio, 180cm SID

Ensures scatter radiation is minimized for cleaner, more diagnostic images.

Comprehensive Positioning Capabilities

• Tube column longitudinal travel: 2500mm

• Vertical tube travel: 1300mm

• Ball tube rotation (bull's head): ±90°

• Bulb assembly rotation around column: ±180°

• Chest stand vertical travel: 1500mm

• Box moving longitudinal stroke: 500mm

Provides full coverage of all standard radiographic and fluoroscopic projections.

Optional Add-Ons for Enhanced Functionality

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
