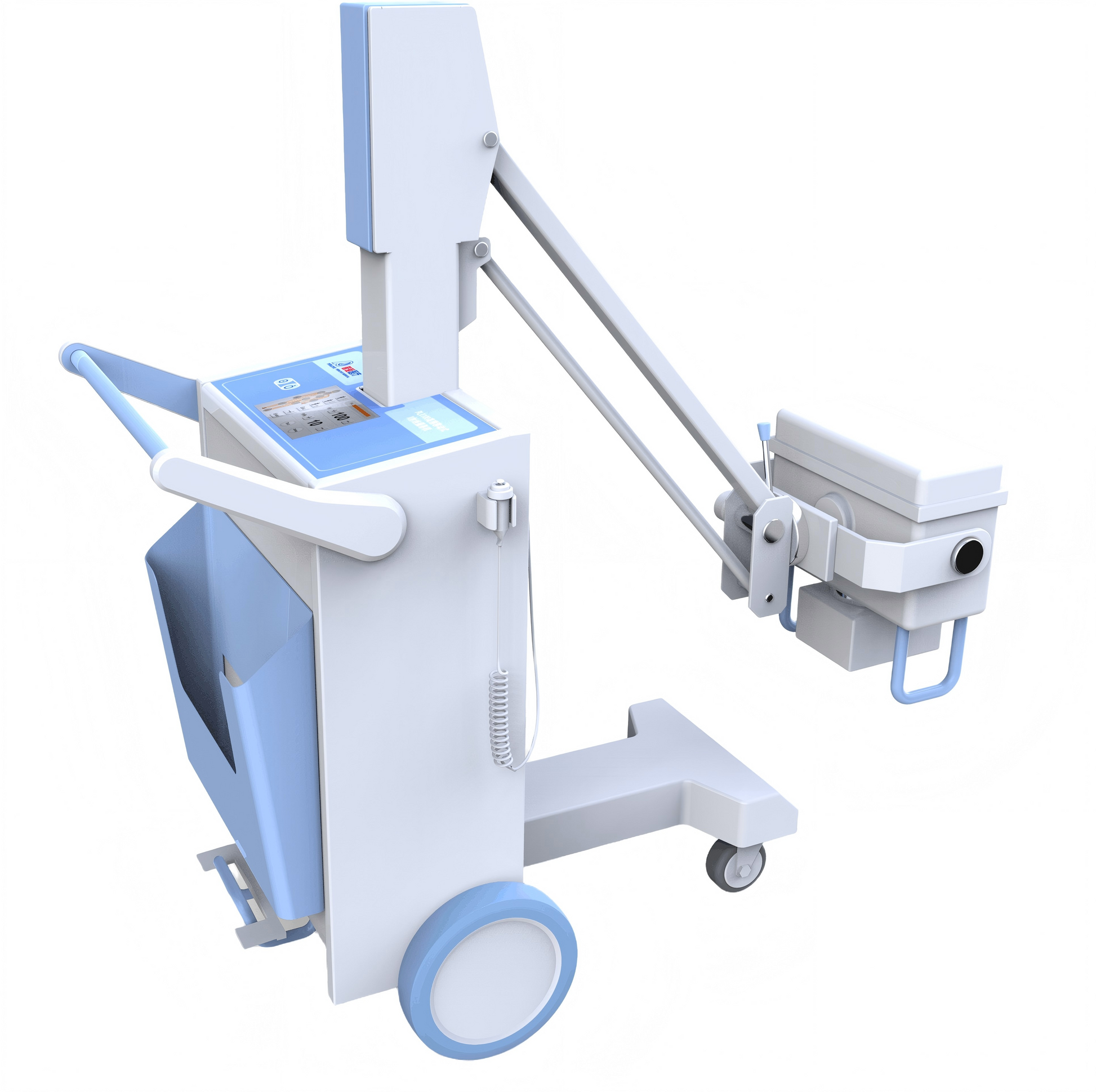

Perlove High Frequency Mobile Digital Radiography System PLX101A #

Enhanced Power Mobile DR for Point-of-Care Imaging
The PLX101A is an enhanced high-frequency mobile digital radiography system designed for bedside and point-of-care imaging — ideal for hospitals, nursing homes, and emergency departments requiring portable X-ray capabilities with increased power output.

Standard Household Power Supply

• Voltage: 220V

• Frequency: 50Hz

Plug directly into standard wall outlets — no special electrical installation required.

High-Frequency Generator for Improved Performance
Powered by a 3.5kW high-frequency generator with a 50kHz inverter frequency, the system delivers stable X-ray output and optimized patient dose for routine bedside examinations.

Extended Exposure Parameters

• Tube Voltage: 40–110kV

• Tube Current: 25–63mA

• mAs Range: 1.0–160mAs

Supports a broader range of portable radiographic applications, from chest to extremity and abdominal imaging.

Fixed Anode X-Ray Tube

• Focus size: 0.3/1.5mm

• Anode heat capacity: 35KJ

• Tube heat capacity: 500KJ

• Anode type: Fixed anode

Simplified tube design for reliable performance in mobile applications.

Manual Mechanical Operation

• SID (focus to ground): 500mm – 1750mm

• Mechanical motion: Manual

• Column rotation: Non-rotatable

• Ball tube rotation around telescopic arm axis: ±90°

• Ball tube rotation around its own axis: ≥90°

Simple, reliable manual positioning for bedside imaging.

User-Friendly Control Interface

• Control panel: 7" capacitive touchscreen control panel

Intuitive touchscreen interface for easy operation at the point of care.

No Flat Panel Detector Included

• FPD not included — compatible with standard portable DR detectors or CR cassettes
