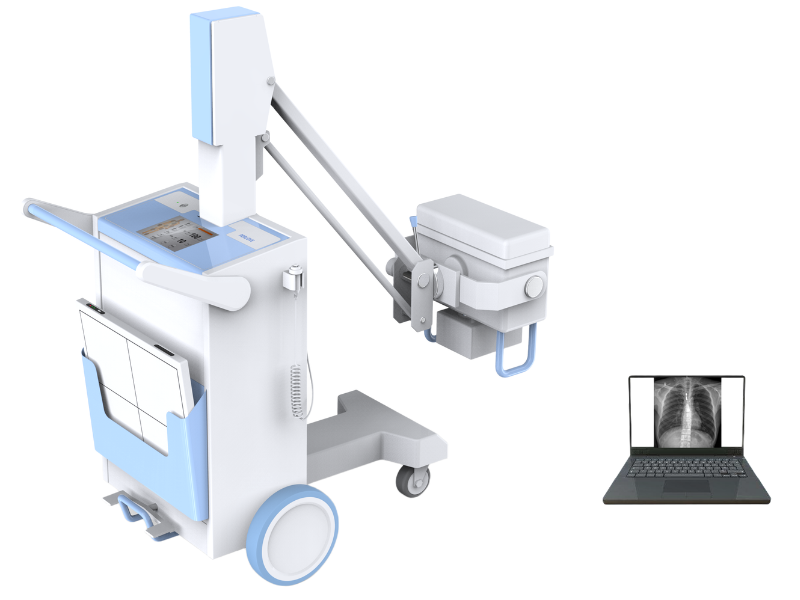

Perlove High Frequency Mobile Digital Radiography System PLX5100 #

Compact Mobile DR with Integrated Wireless Detector
The PLX5100 is a high-frequency mobile digital radiography system featuring an integrated 14"x17" wireless flat panel detector, designed for efficient bedside and point-of-care imaging — ideal for hospitals, nursing homes, and emergency departments.

Standard Household Power Supply

• Voltage: 220V

• Frequency: 50Hz

Plug directly into standard wall outlets — no special electrical installation required.

High-Frequency Generator for Reliable Performance
Powered by a 5kW high-frequency generator with a 50kHz inverter frequency, the system delivers stable X-ray output and optimized patient dose for routine bedside examinations.

Essential Exposure Parameters

• Tube Voltage: 40–120kV

• Tube Current: 25–100mA

• mAs Range: 1.0–180mAs

Supports a range of portable radiographic applications, from chest to extremity imaging.

Fixed Anode X-Ray Tube

• Focus size: 0.3/1.5mm

• Anode heat capacity: 35KJ

• Tube heat capacity: 500KJ

• Anode type: Fixed anode

Simplified tube design for reliable performance in mobile applications.

Integrated Wireless Flat Panel Detector

• Detector size: 14" x 17" (Kangzhong)

• Pixel matrix: 2816 × 2304

• Pixel pitch: 154μm

• Spatial resolution: 3.24 lp/mm

• Gray scale: 16-bit

• DQE: 0.6

• Imaging time: ≤15 seconds

• Detector weight: 3.7kg

Wireless design allows effortless positioning for bedside exams — no cable management required.

Manual Mechanical Operation

• SID (focus to ground): 500mm – 1750mm

• Mechanical motion: Manual

• Column rotation: Non-rotatable

• Ball tube rotation around telescopic arm axis: ≥90°

• Ball tube rotation around its own axis: ≥90°

Simple, reliable manual positioning for bedside imaging.

User-Friendly Control Interface

• Control panel: 7" capacitive touchscreen control panel

Intuitive touchscreen interface for easy operation at the point of care.
