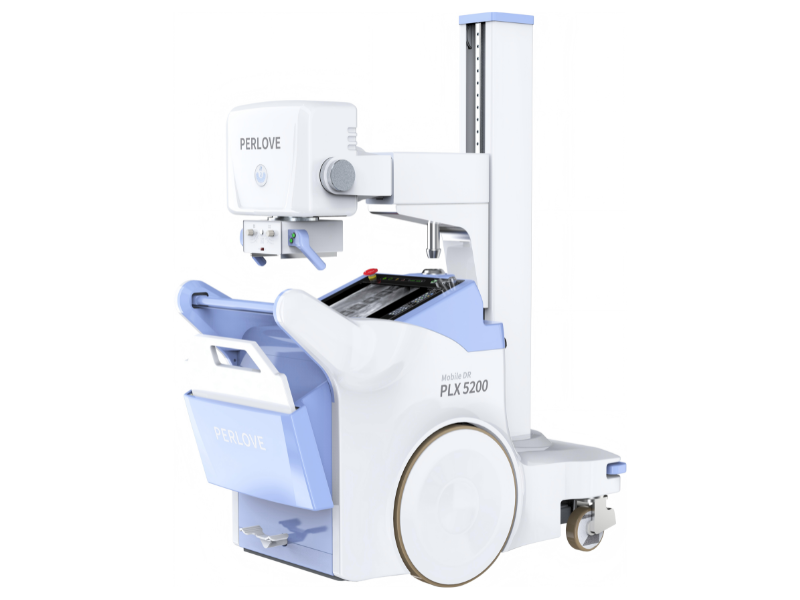

Perlove High Frequency Mobile Digital Radiography System PLX5200A #

High-Power Mobile DR with Integrated Wireless Detector & Electric Motion
The PLX5200A is a high-power high-frequency mobile digital radiography system featuring an integrated 14"x17" wireless flat panel detector and electric mechanical motion — designed for demanding bedside and point-of-care imaging with enhanced positioning convenience.

Standard Household Power Supply

• Voltage: 220V

• Frequency: 50Hz

Plug directly into standard wall outlets — no special electrical installation required.

High-Frequency Generator for Superior Performance
Powered by a 25kW high-frequency generator with a 60kHz inverter frequency, the system delivers stable X-ray output, short exposure times, and optimized patient dose for demanding bedside examinations.

Extended Exposure Parameters

• Tube Voltage: 40–125kV

• Tube Current: 200mA

• mAs Range: 1–360mAs

Supports a wide range of portable radiographic applications, including chest, abdomen, and orthopedic imaging.

High-Capacity X-Ray Tube

• Focus size: 0.6/1.3mm

• Anode heat capacity: 80KJ

• Tube heat capacity: 900KJ

• Anode speed: 2800rpm

Enhanced thermal capacity for sustained performance in busy clinical environments.

Integrated Wireless Flat Panel Detector

• Detector size: 14" x 17"

• Pixel matrix: 2816 × 2304

• Pixel pitch: 154μm

• Spatial resolution: 3 lp/mm

• Gray scale: 16-bit

• DQE: 0.6

• Imaging time: ≤15 seconds

Wireless design allows effortless positioning for bedside exams — no cable management required.

Electric Mechanical Operation – Enhanced Convenience

• SID (focus to column): 75cm – 125cm

• SID (focus to ground): 77cm – 187cm

• Mechanical motion: Electric (auto)

• Column rotation range: ±180°

• Ball tube rotation around telescopic arm axis: ±90°

• Ball tube rotation around its own axis: -5°/+40°

Electric positioning reduces operator effort and speeds up bedside workflow.

User-Friendly Control Interface

• Control panel: 19" embedded LCD touchscreen

Large, intuitive touchscreen interface for easy operation at the point of care.
