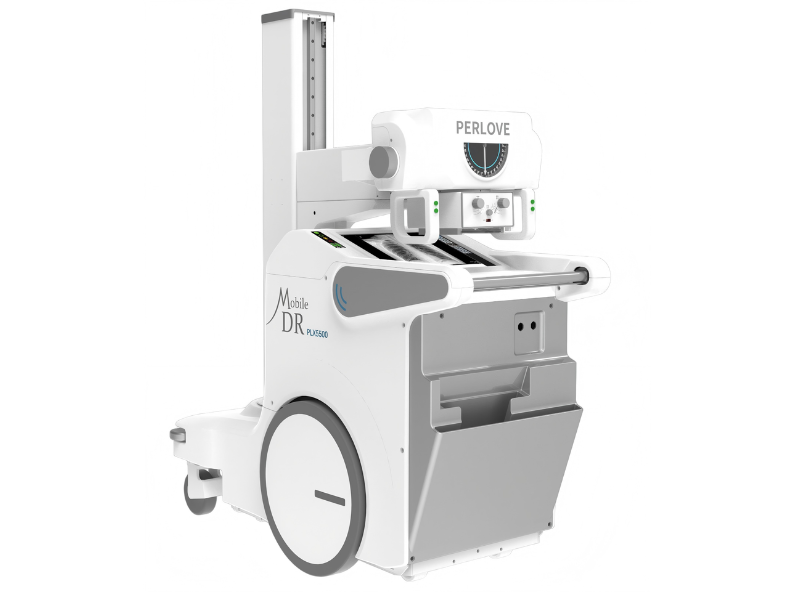

Perlove High Frequency Mobile Digital Radiography System PLX5500A DAP Standard Version #

High-Power Mobile DR with Integrated Wireless Detector, Electric Motion & DAP Standard
The PLX5500A is a high-power high-frequency mobile digital radiography system featuring an integrated wireless flat panel detector, electric mechanical motion, and DAP (Dose Area Product) meter as standard equipment — designed for demanding bedside and point-of-care imaging with dose monitoring and superior positioning flexibility.

Standard Household Power Supply

• Voltage: 220V

• Frequency: 50Hz

Plug directly into standard wall outlets — no special electrical installation required.

High-Frequency Generator for Exceptional Performance
Powered by a 65kW high-frequency generator with a 260kHz inverter frequency, the system delivers exceptional X-ray output, ultra-short exposure times, and optimized patient dose for demanding bedside examinations.

Extended Exposure Parameters

• Tube Voltage: 40–150kV

• Tube Current: 10–710mA

• mAs Range: 1–630mAs

Supports a wide range of portable radiographic applications, from chest and abdomen to orthopedic, bariatric, and pediatric imaging.

High-Capacity X-Ray Tube – Maximum Thermal Performance

• Focus size: 0.6/1.2mm

• Anode heat capacity: 300kHU (210KJ)

• Tube heat capacity: 1250kHu

• Anode speed: 9700rpm

High-speed rotating anode with exceptional thermal capacity for sustained high workload in busy clinical environments.

Integrated Wireless Flat Panel Detector

• Detector size: 430mm × 430mm (17"x17")

• Pixel matrix: 3072 × 3072

• Pixel pitch: 139μm

• Spatial resolution: 3.3 lp/mm

• Gray scale: 16-bit

• DQE: 0.6

• Imaging time: ≤12 seconds (faster than standard models)

Large-format wireless detector with faster imaging time for efficient bedside workflow.

DAP (Dose Area Product) Meter – Standard Equipment

• DAP dose monitoring included as standard — no optional upgrade required

• Enables real-time dose tracking and reporting for patient safety compliance

Electric Mechanical Operation – Enhanced Convenience

• SID (focus to column): 75cm – 125cm

• SID (focus to ground): 88cm – 194cm (extended range)

• Mechanical motion: Electric (auto)

• Ball tube rotation around its own axis: -5°/+40°

Electric positioning reduces operator effort and speeds up bedside workflow.

User-Friendly Control Interface

• Control panel: 19" embedded LCD touchscreen (reference from PLX5200A)

Large, intuitive touchscreen interface for easy operation at the point of care.
