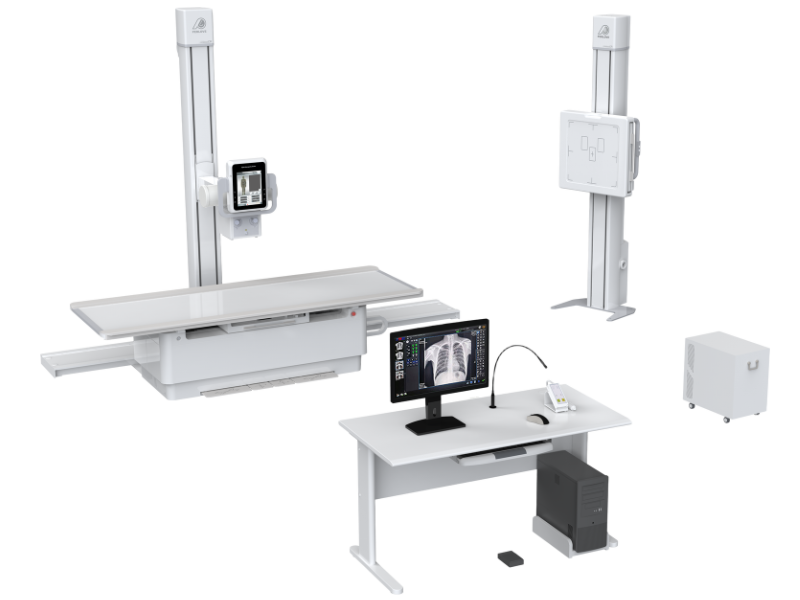

Perlove High Frequency Radiography & Fluoroscopy Digital X-ray System PLD5900D #

Imported Dual Panels with High-Power Generator – The Ultimate Imaging Solution
The PLD5900D features two imported FDXA4343R flat panel detectors paired with a powerful 85kW high-frequency generator, delivering the highest level of image quality, workflow efficiency, and output capacity — ideal for leading hospitals and high-volume imaging centers.

High-Frequency Generator for Superior Output
Powered by an 85kW high-frequency generator with a 500kHz inverter frequency, the system delivers stable X-ray production, ultra-short exposure times, and optimized radiation dose for even the most demanding examinations.

Extended Exposure Parameters

• Tube Voltage: 40–150kV

• Tube Current: 10–1000mA

• mAs Range: 0.1–1000mAs

Supports a full spectrum of diagnostic applications, from pediatric to bariatric, orthopedic, and chest imaging.

Canon X-Ray Tube – High Thermal Capacity

• Model: E7254FX

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 400kHu

• Tube heat capacity: 1339kHu

• Anode speed: 9700rpm

Engineered for sustained high workload with excellent thermal management and long tube life.

Imported Dual Detectors for Premium Imaging

• Detector model: FDXA4343R (two units)

• Detector size: 17"x17" each

• Pixel pitch: 140μm

• Pixel matrix: 3040×3036

• Spatial resolution: 3.7 lp/mm

• Gray scale: 16-bit

Delivers outstanding image clarity, uniformity, and low noise for confident diagnosis across table and chest stand exams.

Ergonomic Lifting Bed (30D)

• Load capacity: 200kg

• Lifting range: 220mm (500mm – 720mm)

• Longitudinal travel: 1000mm

• Horizontal travel: 260mm

Easily adjust bed height for patient comfort, accessibility, and operator convenience.

Comprehensive Positioning Capabilities

• Tube column longitudinal travel: 2500mm

• Vertical tube travel: 1300mm

• Tube arm rotation: ±90°

• Chest stand vertical travel: 1500mm

Provides full coverage of all standard radiographic projections with minimal patient repositioning.

Fixed Grids for Scatter Reduction

• Table grid: 18"x18", 103 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 103 LP/inch, 10:1 ratio, 180cm SID

Ensures cleaner images with reduced scatter radiation for more diagnostic confidence.

Optional Add-Ons for Enhanced Functionality

• Bucky stand & tube tracking: $2,199

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
