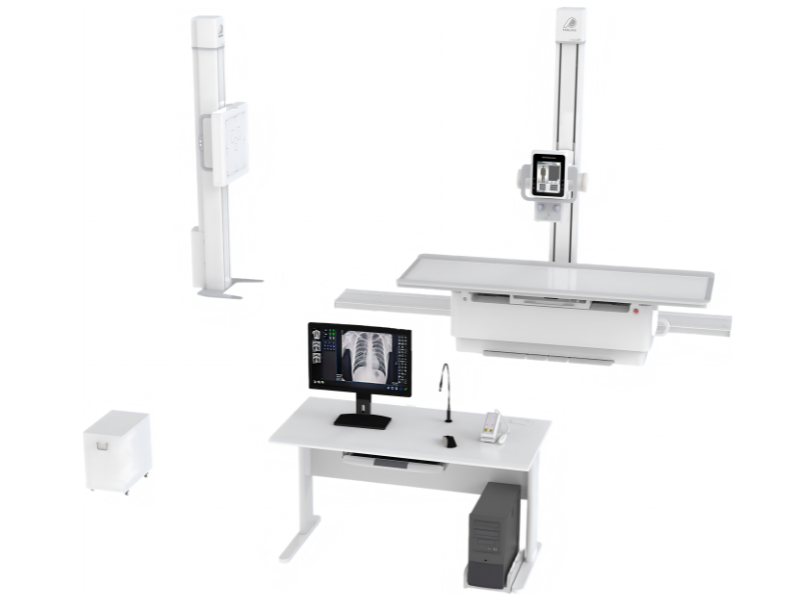

Perlove High Frequency Radiography & Fluoroscopy Digital X-ray System PLD6500A #

High-Power Performance for Demanding Clinical Environments
Equipped with a powerful 65.5kW high-frequency generator and a 500kHz inverter frequency, the PLD6500A delivers stable, high-quality X-ray output for a wide range of diagnostic imaging needs.

Wide Exposure Parameters

• Tube Voltage: 40–150kV

• Tube Current: 10–800mA

• mAs Range: 0.1–800mAs

These allow flexible adjustment for different patient sizes and examination types.

High-Quality X-Ray Tube
Features a Canon X-ray tube with dual focus (0.6/1.2mm), 300kHu anode heat capacity, and a high-speed anode rotating at 9700rpm, ensuring reliable performance and long tube life.

Advanced Flat Panel Detector

• 17"x17" PLD-1717CWE detector

• 139μm pixel pitch and 3072×3072 pixel matrix

• 16-bit gray scale and 3.7 lp/mm spatial resolution

Delivers crisp, high-contrast images for accurate diagnosis.

Ergonomic Lifting Bed (SYC30E)

• Load capacity: 200kg

• Bed lift range: 220mm (500mm to 720mm)

• Longitudinal travel: 1000mm

• Horizontal travel: 260mm

Designed for patient comfort and ease of positioning.

Flexible Positioning System

• Tube column longitudinal movement: 2500mm

• Vertical tube travel: 1300mm

• Tube arm rotation: ±90°

Allows comprehensive coverage for various exam angles and patient setups.

Fixed Grids for Consistent Image Quality

• Table grid: 18"x18", 103 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 103 LP/inch, 10:1 ratio, 180cm SID

Ensures scatter radiation is minimized for cleaner images.

Optional Upgrades Available

• AEC (Automatic Exposure Control) – $2,229

• DAP (Dose Area Product meter) – $2,229

• Automatic Image Stitching – $2,160

• Mobile Standing Pedal – $2,599
