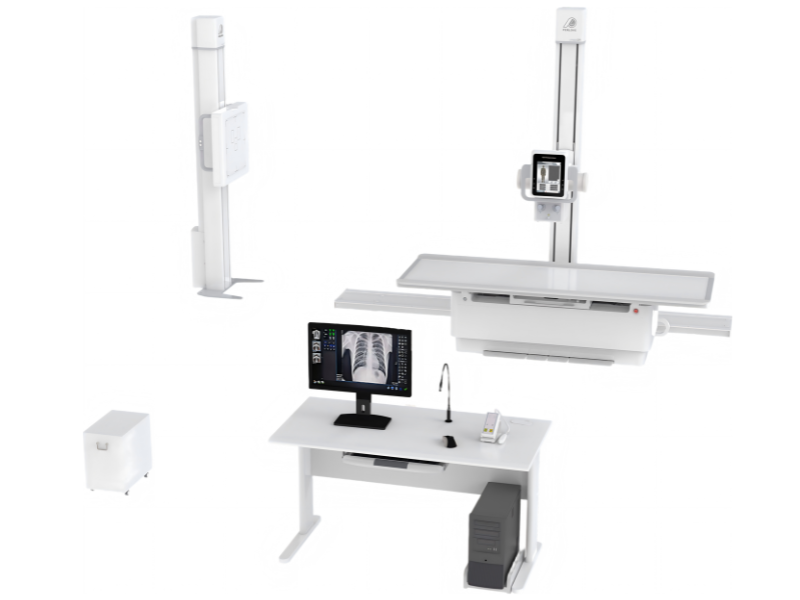

Perlove High Frequency Radiography & Fluoroscopy Digital X-ray System PLD6500C #

Imported Single Panel – Premium Imaging Performance
The PLD6500C features an imported FDXA4343R flat panel detector, delivering superior image quality with exceptional uniformity and low noise — ideal for high-end diagnostic requirements.

High-Frequency Generator for Consistent Output
Equipped with a 65.5kW high-frequency generator and 500kHz inverter frequency, the system ensures stable X-ray production, reduced exposure time, and lower patient dose.

Flexible Exposure Parameters

• Tube Voltage: 40–150kV

• Tube Current: 10–800mA

• mAs Range: 0.1–800mAs

Supports a wide variety of clinical applications, from extremity to chest and abdominal imaging.

Canon X-Ray Tube – Proven Reliability

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 300kHu

• Anode speed: 9700rpm

Designed for high-volume workloads with long-lasting tube life.

Imported Detector for Exceptional Image Quality

• Detector size: 17"x17" FDXA4343R

• Pixel pitch: 140μm

• Pixel matrix: 3040×3036

• Spatial resolution: 3.7 lp/mm

• Gray scale: 16-bit

Provides crisp, high-contrast images for confident diagnosis.

Ergonomic Lifting Bed (SYC30E)

• Load capacity: 200kg

• Lifting range: 220mm (500mm – 720mm)

• Longitudinal travel: 1000mm

• Horizontal travel: 260mm

Enables comfortable patient positioning and efficient workflow.

Comprehensive Positioning Flexibility

• Tube column longitudinal travel: 2500mm

• Vertical tube travel: 1300mm

• Tube arm rotation: ±90°

• Chest stand vertical travel: 1500mm

Allows full coverage of all standard radiographic projections.

Fixed Grids for Scatter Reduction

• Table grid: 18"x18", 103 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 103 LP/inch, 10:1 ratio, 180cm SID

Ensures cleaner images with reduced scatter radiation.

Optional Add-Ons for Advanced Functionality

• Bucky stand & tube tracking: $2,199

• AEC (Automatic Exposure Control): $2,228

• DAP (Dose Area Product): $2,228

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
