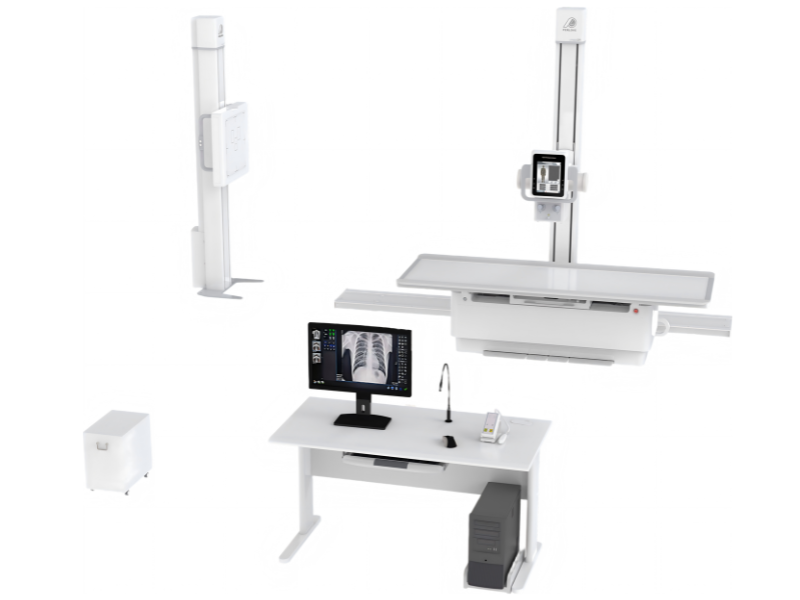

Perlove High Frequency Radiography & Fluoroscopy Digital X-ray System PLD6500D #

Imported Dual Panels – Maximum Workflow & Premium Image Quality
The PLD6500D features two imported FDXA4343R flat panel detectors, delivering exceptional image quality with dual-panel convenience — ideal for high-volume imaging departments requiring seamless switching between table and chest stand exams.

High-Frequency Generator for Superior Performance
Powered by a 65.5kW high-frequency generator with a 500kHz inverter frequency, the system provides stable X-ray output, short exposure times, and optimized dose efficiency.

Wide Exposure Parameter Range

• Tube Voltage: 40–150kV

• Tube Current: 10–800mA

• mAs Range: 0.1–800mAs

Supports a broad spectrum of diagnostic applications, from pediatric to bariatric imaging.

Canon X-Ray Tube – Built for High Workloads

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 300kHu

• Anode speed: 9700rpm

Engineered for reliability and consistent performance in demanding clinical environments.

Imported Dual Detectors for Premium Imaging

• Detector model: FDXA4343R (two units)

• Detector size: 17"x17"

• Pixel pitch: 140μm

• Pixel matrix: 3040×3036

• Spatial resolution: 3.7 lp/mm

• Gray scale: 16-bit

Delivers outstanding image clarity, uniformity, and contrast for confident diagnosis.

Ergonomic Lifting Bed (SYC30E)

• Load capacity: 200kg

• Lifting range: 220mm (500mm – 720mm)

• Longitudinal travel: 1000mm

• Horizontal travel: 260mm

Enables easy patient positioning and operator comfort.

Full Positioning Capabilities

• Tube column longitudinal travel: 2500mm

• Vertical tube travel: 1300mm

• Tube arm rotation: ±90°

• Chest stand vertical travel: 1500mm

Covers all standard radiographic projections with minimal patient movement.

Built-in Fixed Grids

• Table grid: 18"x18", 103 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 103 LP/inch, 10:1 ratio, 180cm SID

Reduces scatter radiation for cleaner, more diagnostic images.

Optional Add-Ons for Enhanced Functionality

• Bucky stand & tube tracking: $2,199

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
