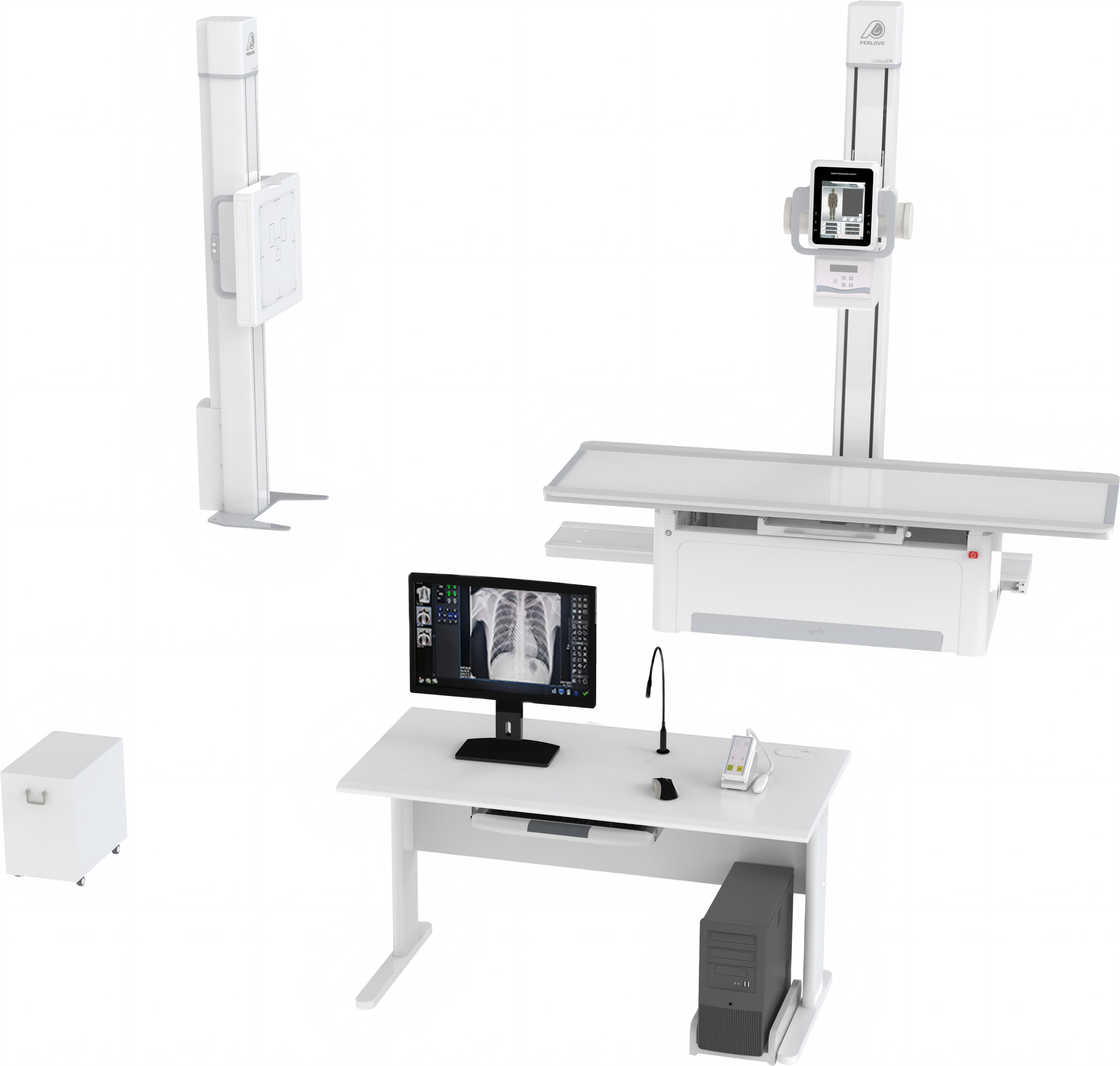

Perlove High Frequency Radiography & Fluoroscopy Digital X-ray System PLD6500E #

Cost-Effective Single Panel Configuration with Fixed Bed
The PLD6500E features a domestic single panel (PLD-1717CWE) paired with a 20C fixed bed, offering reliable performance at an entry-level price point — ideal for clinics with budget constraints and standard radiographic needs.

High-Frequency Generator for Consistent Performance
Powered by a 65.5kW high-frequency generator with a 500kHz inverter frequency, the system delivers stable X-ray output, short exposure times, and optimized patient dose.

Wide Exposure Parameter Range

• Tube Voltage: 40–150kV

• Tube Current: 10–800mA

• mAs Range: 0.1–800mAs

Supports a broad range of diagnostic applications, from extremities to chest and abdominal imaging.

Canon X-Ray Tube – Reliable and Durable

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 300kHu

• Anode speed: 9700rpm

Built for consistent performance in busy clinical environments.

High-Resolution Domestic Detector

• Detector model: PLD-1717CWE

• Detector size: 17"x17"

• Pixel pitch: 139μm

• Pixel matrix: 3072×3072

• Spatial resolution: 3.7 lp/mm

• Gray scale: 16-bit

Delivers clear, high-contrast images for accurate diagnosis.

Fixed Bed (20C) for Simple, Stable Operation

• Load capacity: 200kg

• Height from floor: 550mm (minimum)

• Horizontal travel: 260mm

• Longitudinal travel: 1000mm

The fixed-height design reduces complexity and cost while maintaining patient comfort.

Comprehensive Positioning Capabilities

• Tube column longitudinal travel: 1500mm

• Vertical tube travel: 1300mm

• Tube arm rotation: ±90°

• Chest stand vertical travel: 1500mm

Allows full coverage of standard radiographic projections with flexible patient positioning.

Fixed Grids for Scatter Reduction

• Table grid: 18"x18", 103 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 103 LP/inch, 10:1 ratio, 180cm SID

Ensures cleaner images by minimizing scattered radiation.

Optional Add-Ons for Advanced Functionality

• Bucky stand & tube tracking: $2,199

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
