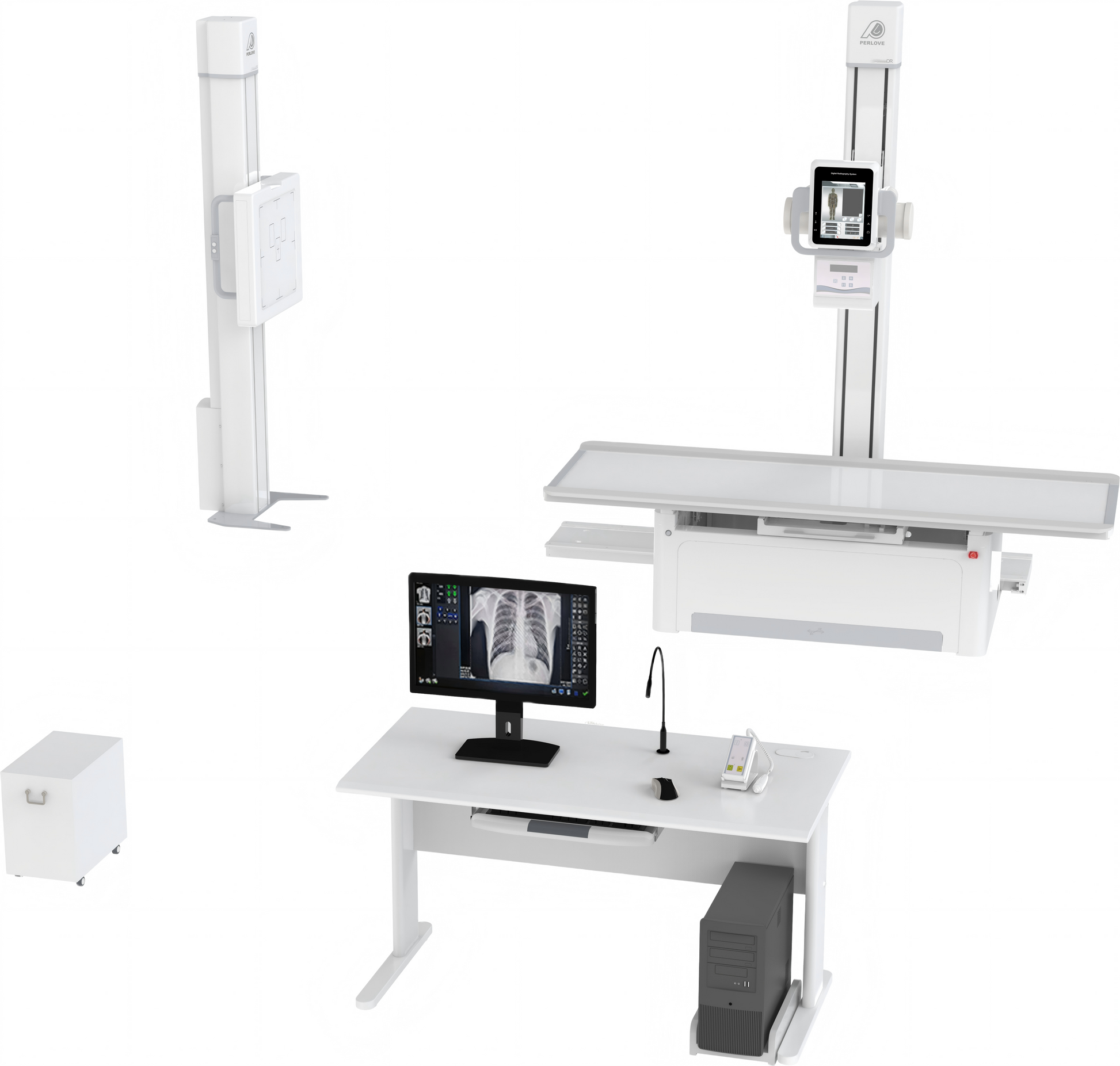

Perlove High Frequency Radiography & Fluoroscopy Digital X-ray System PLD6500F #

Dual-Panel Configuration with Fixed Bed – Enhanced Workflow
The PLD6500F features two domestic flat panel detectors (PLD-1717CWE + PLD-1717LE) paired with a 20C fixed bed, enabling seamless switching between table and chest stand imaging — ideal for clinics seeking efficiency without the complexity of an elevating bed.

High-Frequency Generator for Stable Performance
Powered by a 65.5kW high-frequency generator with a 500kHz inverter frequency, the system delivers consistent X-ray output, fast exposure times, and optimized radiation dose.

Wide Exposure Parameter Range

• Tube Voltage: 40–150kV

• Tube Current: 10–800mA

• mAs Range: 0.1–800mAs

Supports a broad range of diagnostic applications, from extremities to chest and abdominal imaging.

Canon X-Ray Tube – Proven Reliability

• Dual focus: 0.6/1.2mm

• Anode heat capacity: 300kHu

• Anode speed: 9700rpm

Engineered for consistent performance in demanding clinical environments.

High-Resolution Domestic Dual Detectors

• Detector models: PLD-1717CWE + PLD-1717LE

• Detector size: 17"x17" each

• Pixel pitch: 139μm

• Pixel matrix: 3072×3072

• Spatial resolution: 3.7 lp/mm

• Gray scale: 16-bit

Delivers clear, high-contrast images for confident diagnosis across multiple exam types.

Fixed Bed (20C) for Simple, Stable Operation

• Load capacity: 200kg

• Height from floor: 550mm (minimum)

• Horizontal travel: 260mm

• Longitudinal travel: 1000mm

The fixed-height design reduces cost and complexity while maintaining patient comfort and accessibility.

Comprehensive Positioning Capabilities

• Tube column longitudinal travel: 1500mm

• Vertical tube travel: 1300mm

• Tube arm rotation: ±90°

• Chest stand vertical travel: 1500mm

Provides full coverage of all standard radiographic projections.

Fixed Grids for Scatter Reduction

• Table grid: 18"x18", 103 LP/inch, 10:1 ratio, 100cm SID

• Chest stand grid: 18"x18", 103 LP/inch, 10:1 ratio, 180cm SID

Ensures cleaner images by minimizing scattered radiation.

Optional Add-Ons for Enhanced Functionality

• Bucky stand & tube tracking: $2,199

• AEC (Automatic Exposure Control): $2,229

• DAP (Dose Area Product): $2,229

• Automatic image stitching: $2,199

• Mobile standing pedal: $2,599
