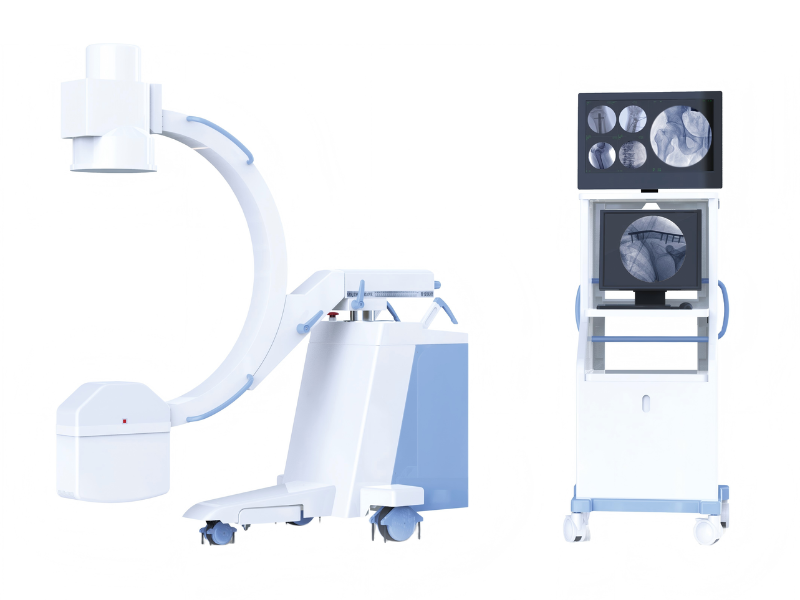

Perlove PLX112C/C1 High Frequency Digital Mobile C-arm #

High-Power Digital Mobile C-Arm with Extended SID & Dual Monitor Configuration
The PLX112C/C1 is a high-power high-frequency digital mobile C-arm system featuring an extended SID of 1000mm and a dual monitor configuration — designed for advanced pain management, orthopedics, and general fluoroscopic procedures requiring enhanced visualization and greater imaging depth.

Standard Power Supply

• Voltage: 220V

• Frequency: 50Hz

Operates on standard wall outlets — no special electrical installation required.

High-Frequency Generator for Enhanced Performance
Powered by a 5kW high-frequency generator with a 40kHz inverter frequency, the system delivers stable X-ray output and optimized patient dose for demanding fluoroscopic procedures.

Comprehensive Fluoroscopy & Exposure Parameters

• Continuous Fluoroscopy: 40–120kV, 0.3–4mA

• Pulse Fluoroscopy: 40–120kV, 0.3–30mA

• Photography (Radiography): 40–120kV, 25–100mA, 1.0–180mAs

Supports continuous fluoroscopy, pulsed fluoroscopy, and radiographic imaging with extended parameter ranges.

High-Quality X-Ray Tube

• Focus (standard without "1"): 0.3/1.5mm (small focus for fluoroscopy, large focus for radiography)

• Focus (with "1" suffix C1): 0.6/1.8mm

• Tube heat capacity: 650KJ

• Anode heat capacity: 35.5KJ

Dual focus design optimized for both fluoroscopic and radiographic imaging.

Canon Image Intensifier for Superior Image Quality

• Image intensifier: Canon 9" three visual fields

• Resolution: 48 lp/cm

• DQE: 0.65

• CCD camera pixel: 1024 × 1024

• Gray scale: 12-bit

Delivers bright, clear fluoroscopic images with Canon's renowned image intensifier technology.

Comprehensive Workstation Package – Dual Monitor Configuration

• Exposure controller: 1 set handheld controller

• Monitor size: 24" × 1 / 19" × 2 (dual monitor configuration)

Dual displays enable simultaneous viewing of live fluoroscopy and reference images for enhanced procedural efficiency.

Extended Mechanical Specifications

• SID: 1000mm (increased imaging depth)

• Free space: 800mm (improved patient access)

• Depth: 670mm

• Backward/forward movement: ≥200mm

• Vertical movement: ≥400mm

• Swing angle: ±15°

• Rotation angle: ±180°

• Orbit slide angle: ≥120°

• Red cross laser: 1 unit

• Mechanical movement control: Three manual, one electric

Extended SID and increased free space provide greater working distance and patient access for improved procedural workflow.
