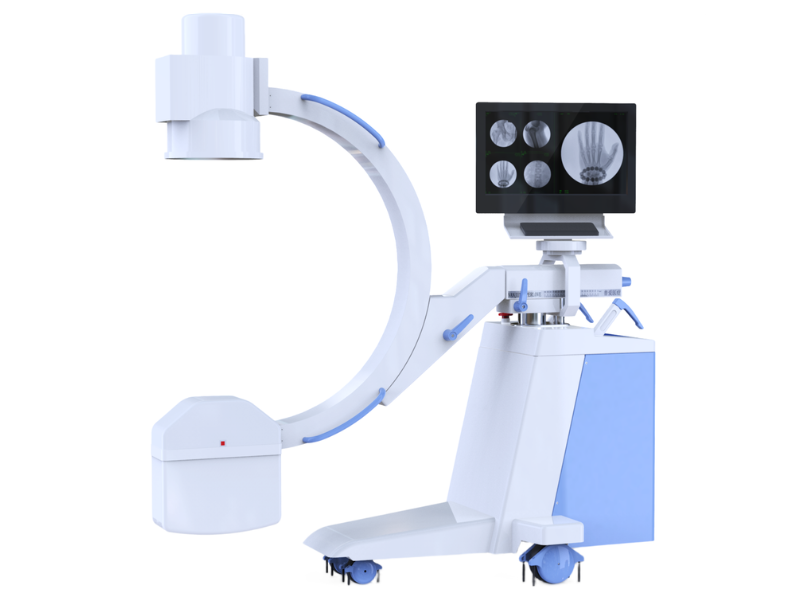

Perlove PLX116A/A1 All-in-one Digital Mobile C-arm #

Compact All-in-One Digital C-Arm for Pain Management & Orthopedics
The PLX116A/A1 is a compact all-in-one digital mobile C-arm system designed for pain management, orthopedics, and general fluoroscopic procedures — ideal for outpatient clinics, surgical centers, and hospital operating rooms requiring portable, high-quality imaging.

Standard Power Supply

• Voltage: 220V

• Frequency: 50Hz

Operates on standard wall outlets — no special electrical installation required.

High-Frequency Generator for Reliable Performance
Powered by a 3.55kW high-frequency generator with a 40kHz inverter frequency, the system delivers stable X-ray output and optimized patient dose for routine fluoroscopic procedures.

Comprehensive Fluoroscopy & Exposure Parameters

• Continuous Fluoroscopy: 40–110kV, 0.3–4mA

• Pulse Fluoroscopy: 40–110kV, 0.3–8mA

• Photography (Radiography): 40–110kV, 20–63mA, 1.0–125mAs

Supports continuous fluoroscopy, pulsed fluoroscopy, and radiographic imaging in one portable system.

High-Quality X-Ray Tube

• Focus (standard without "1"): 0.3/1.5mm (small focus for fluoroscopy, large focus for radiography)

• Focus (with "1" suffix A1): 0.6/1.8mm

• Tube heat capacity: 650KJ

• Anode heat capacity: 35.5KJ

Dual focus design optimized for both fluoroscopic and radiographic imaging.

Canon Image Intensifier for Superior Image Quality

• Image intensifier: Canon 9" three visual fields

• Resolution: 48 lp/cm

• DQE: 0.65

• CCD camera pixel: 1024 × 1024

• Gray scale: 12-bit

Delivers bright, clear fluoroscopic images with Canon's renowned image intensifier technology.

Comprehensive Workstation Package

• Exposure controller: 1 set handheld controller

• Monitor size: 24" × 1 (high-definition display)

Simple, intuitive control for easy operation in the OR or clinic.

Manual Mechanical Movement (Three Manual, One Electric)

• SID: 960mm

• Free space: 760mm

• Depth: 640mm

• Backward/forward movement: ≥200mm

• Vertical movement: ≥400mm

• Swing angle: ±15°

• Rotation angle: ±180°

• Orbit slide angle: ≥120°

• Red cross laser: 1 unit

Reliable manual positioning with one electric motion for enhanced positioning convenience.
