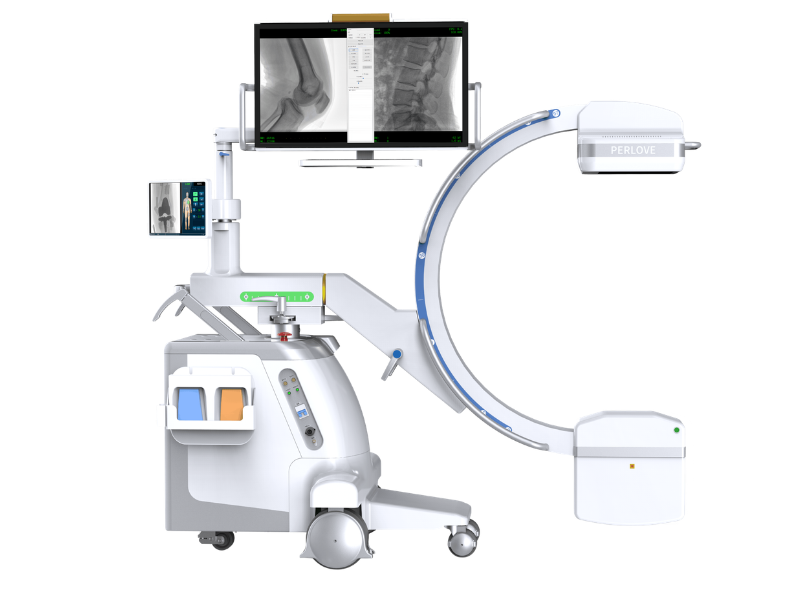

Perlove PLX118C/A All-in-one Mobile Flat Panel Detector C-arm#

All-in-One Digital C-Arm with Domestic Flat Panel Detector – Small Focus
The PLX118C/A is an all-in-one digital mobile C-arm system featuring a domestic flat panel detector, small focus (0.3/1.5mm) , and an integrated 32" 4K monitor with touch operation screen — designed for pain management, orthopedics, and general fluoroscopic procedures requiring high-resolution visualization and reliable digital imaging quality.

Standard Power Supply

• Voltage: 220V

• Frequency: 50Hz

Operates on standard wall outlets — no special electrical installation required.

High-Frequency Generator for Reliable Performance
Powered by a 5kW high-frequency generator with a 110kHz inverter frequency, the system delivers stable X-ray output and optimized patient dose for routine fluoroscopic procedures.

Comprehensive Fluoroscopy & Exposure Parameters

• Continuous Fluoroscopy: 40–120kV, 0.3–4mA

• Pulse Fluoroscopy: 40–120kV, 0.3–30mA

• Photography (Radiography): 40–120kV, 25–100mA, 1–280mAs

• Spotfilm: 40–112kV, 0.3–15mA

Supports continuous fluoroscopy, pulsed fluoroscopy, radiographic imaging, and spotfilm imaging in one portable system.

High-Quality X-Ray Tube – Small Focus

• Focus size: 0.3/1.5mm

• Tube heat capacity: 650KJ

• Anode heat capacity: 35KJ

Small focus design optimized for fine-detail fluoroscopic imaging.

Domestic Flat Panel Detector for Digital Imaging

• Brand: Domestic

• Detector size: 9" × 9"

• Pixel matrix: 1344 × 1344

• Pixel pitch: 154μm

• Spatial resolution: 3.1 lp/mm

• DQE: 0.77

• Gray scale: 16 bits

• Grid: 1 set

Delivers high-resolution digital fluoroscopic images with excellent DQE for superior image quality.

All-in-One Workstation Package with 4K Display

• Exposure controller: 1 set handheld controller

• Monitor size: 32" × 1 (4K ultra-high-definition display) + 1 touch operation screen

The 32" 4K monitor provides exceptional image clarity, while the dedicated touch operation screen enables intuitive system control.

Extended Mechanical Specifications

• SID: 1000mm

• Free space: 800mm

• Depth: 660mm

• Backward/forward movement: 190mm – 210mm

• Vertical movement: 380mm – 420mm

• Swing angle: ±12° – ±18°

• Rotation angle: ±180°

• Orbit slide angle: 130° – 140°

• Red cross laser: 4 units

Precision mechanical positioning for consistent, repeatable C-arm positioning.
