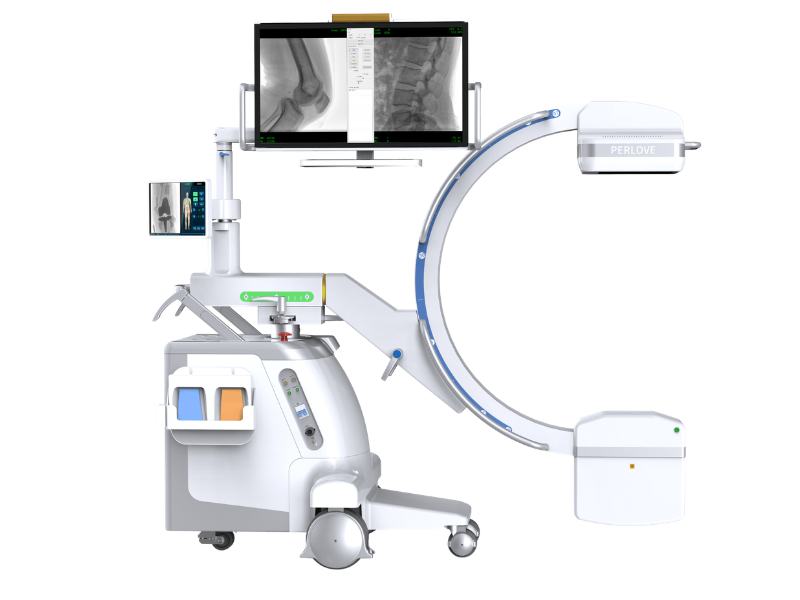

Perlove PLX118C/B All-in-one Mobile Flat Panel Detector C-arm#

All-in-One Digital C-Arm with Domestic Flat Panel Detector – Big Focus & DAP Standard
The PLX118C/B is an all-in-one digital mobile C-arm system featuring a domestic flat panel detector, big focus (0.6/1.8mm) , and DAP (Dose Area Product) meter as standard equipment — designed for pain management, orthopedics, and general fluoroscopic procedures requiring higher thermal capacity for demanding radiographic applications with integrated dose monitoring.

Standard Power Supply

• Voltage: 220V

• Frequency: 50Hz

Operates on standard wall outlets — no special electrical installation required.

High-Frequency Generator for Reliable Performance
Powered by a 5kW high-frequency generator with a 110kHz inverter frequency, the system delivers stable X-ray output and optimized patient dose for routine fluoroscopic procedures.

Comprehensive Fluoroscopy & Exposure Parameters

• Continuous Fluoroscopy: 40–120kV, 0.3–4mA

• Pulse Fluoroscopy: 40–120kV, 0.3–30mA

• Photography (Radiography): 40–120kV, 25–100mA, 1–280mAs

• Spotfilm: 40–112kV, 0.3–15mA

Supports continuous fluoroscopy, pulsed fluoroscopy, radiographic imaging, and spotfilm imaging in one portable system.

High-Quality X-Ray Tube – Big Focus

• Focus size: 0.6/1.8mm

• Tube heat capacity: Not specified

• Anode heat capacity: 35.5KJ

Big focus design provides higher thermal capacity for more demanding radiographic procedures.

Domestic Flat Panel Detector for Digital Imaging

• Brand: Domestic

• Detector size: 9" × 9"

• Pixel matrix: 1024 × 1024

• Pixel pitch: 205μm

• Spatial resolution: 2.5 lp/mm

• DQE: 0.78

• Gray scale: 16 bits

• Grid: 1 set

Delivers digital fluoroscopic images with high DQE for excellent image quality.

DAP (Dose Area Product) Meter – Standard Equipment

• DAP dose monitoring included as standard — no optional upgrade required

• Enables real-time dose tracking and reporting for patient safety compliance

All-in-One Workstation Package

• Exposure controller: 1 set handheld controller

• Monitor size: 32" × 1 + 1 touch operation screen

Large high-definition display with dedicated touch operation screen for intuitive system control.

Extended Mechanical Specifications

• SID: 1000mm

• Free space: 800mm

• Depth: 660mm

• Backward/forward movement: Not specified

• Vertical movement: Not specified

• Swing angle: Not specified

• Rotation angle: Not specified

• Orbit slide angle: Not specified

• Red cross laser: Not specified
