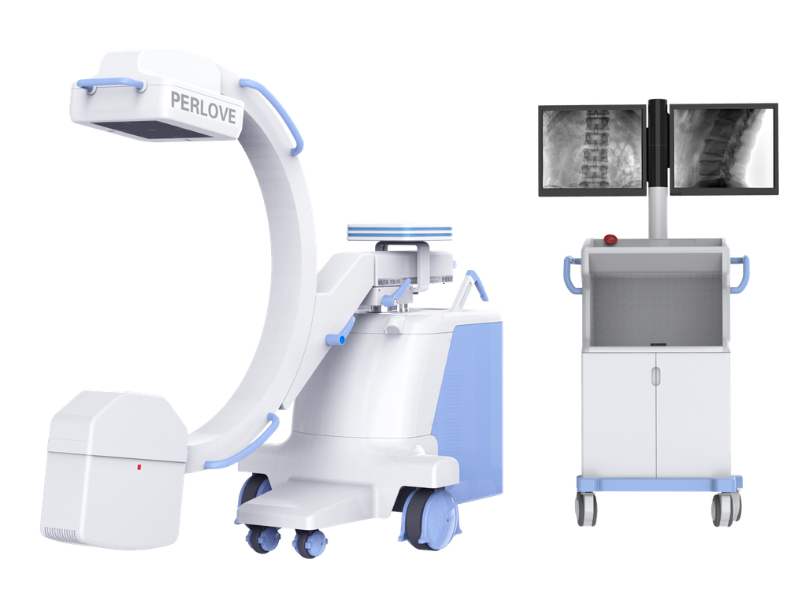

Perlove PLX118WF/A Mobile Flat Panel Detector C-arm #

Wide-Format Digital C-Arm with Imported Thales Flat Panel Detector – Small Focus
The PLX118WF/A is a wide-format digital mobile C-arm system featuring an imported Thales flat panel detector and small focus (0.3–1.5mm) — designed for pain management, orthopedics, and general fluoroscopic procedures requiring premium digital imaging quality with a wider field of view.

Standard Power Supply

• Voltage: 220V

• Frequency: 50Hz

Operates on standard wall outlets — no special electrical installation required.

High-Frequency Generator for Reliable Performance
Powered by a 5kW high-frequency generator with a 110kHz inverter frequency, the system delivers stable X-ray output and optimized patient dose for routine fluoroscopic procedures.

Comprehensive Fluoroscopy & Exposure Parameters

• Continuous Fluoroscopy: 40–120kV, 0.3–4mA

• Pulse Fluoroscopy: 40–120kV, 0.3–30mA

• Photography (Radiography): 40–120kV, 25–100mA, 1–280mAs

Supports continuous fluoroscopy, pulsed fluoroscopy, and radiographic imaging in one portable system.

High-Quality X-Ray Tube – Small Focus

• Focus size: 0.3–1.5mm

• Tube heat capacity: 650kJ (867kHU)

• Anode heat capacity: 35kJ (47kHU)

Small focus design optimized for fine-detail fluoroscopic imaging.

Imported Thales Flat Panel Detector for Premium Image Quality

• Brand: Imported Thales Pixium2121S

• Detector size: 9" × 9"

• Pixel matrix: 1344 × 1344

• Pixel pitch: 154μm

• Spatial resolution: 2.8 lp/mm

• DQE: 0.77

• Gray scale: 16-bit

• Grid: 1 set

Delivers premium digital fluoroscopic images with Thales' renowned imaging technology.

Comprehensive Workstation Package

• Exposure controller: 1 set handheld controller

• Monitor size: 19" × 2 (dual monitor configuration)

Dual display setup enables simultaneous viewing of live fluoroscopy and reference images.

Extended Mechanical Specifications

• SID: 1000mm

• Free space: 800mm

• Depth: 660mm

• Backward/forward movement: 200mm

• Vertical movement: 400mm

• Swing angle: ±15°

• Rotation angle: ≥±180°

• Orbit slide angle: 135° (±5° deviation)

• Red cross laser: 4 units

Comprehensive mechanical positioning for versatile procedural access.

Operating Environment Conditions

• Ambient temperature: +10°C to +40°C

• Relative humidity: 30% to 75%

• Power voltage: 220V
