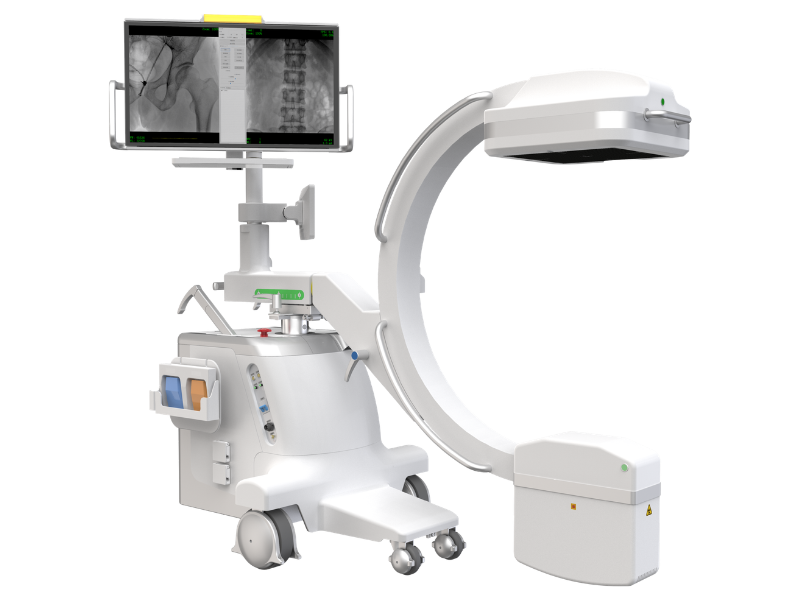

Perlove PLX119C-F All-in-one Mobile Flat Panel Detector C-arm #

All-in-One Digital C-Arm with Domestic Flat Panel, Domestic X-Ray Tube – Big Focus, DAP Standard & One-Second Imaging
The PLX119C-F is a premium all-in-one digital mobile C-arm system featuring a domestic flat panel detector, domestic X-ray tube, big focus (0.6/1.8mm) , DAP (Dose Area Product) meter as standard equipment, and one-second image acquisition — designed for pain management, orthopedics, and general fluoroscopic procedures requiring ultra-fast imaging, maximum workflow efficiency, and integrated dose monitoring.

Standard Power Supply

• Voltage: 220V

• Frequency: 50Hz

Operates on standard wall outlets — no special electrical installation required.

High-Frequency Generator for Reliable Performance
Powered by a 5kW high-frequency generator with a 110kHz inverter frequency, the system delivers stable X-ray output and optimized patient dose for routine fluoroscopic procedures.

Comprehensive Fluoroscopy & Exposure Parameters

• Continuous Fluoroscopy: 40–120kV, 0.3–4mA

• Pulse Fluoroscopy: 40–120kV, 0.3–30mA

• Photography (Radiography): 40–120kV, 25–100mA, 1–280mAs

• Spotfilm: 40–112kV, 0.3–15mA

Supports continuous fluoroscopy, pulsed fluoroscopy, radiographic imaging, and spotfilm imaging in one portable system.

Domestic X-Ray Tube – Big Focus

• Focus size: 0.6/1.8mm

• Tube heat capacity: 650KJ

• Anode heat capacity: 35KJ

Big focus design provides higher thermal capacity for demanding radiographic procedures.

Domestic Flat Panel Detector – One-Second Imaging

• Brand: Domestic (one-second image acquisition)

• Detector size: 30cm × 30cm

• Pixel matrix: 1956 × 1956

• Pixel pitch: 154μm

• Spatial resolution: 3.1 lp/mm

• DQE: 0.77

• Gray scale: 16 bits

• Grid: 1 set

• Image acquisition time: 1 second (ultra-fast)

The one-second imaging capability dramatically reduces exam time and improves patient throughput.

DAP (Dose Area Product) Meter – Standard Equipment

• DAP dose monitoring included as standard — no optional upgrade required

• Enables real-time dose tracking and reporting for patient safety compliance

All-in-One Workstation Package with 4K Display

• Exposure controller: 1 set handheld controller

• Monitor size: 32" 4K × 1 + 1 touch operation screen

The 32" 4K ultra-high-definition monitor provides exceptional image clarity, while the dedicated touch operation screen enables intuitive system control.

Extended Mechanical Specifications

• SID: 1000mm

• Free space: 800mm

• Depth: 660mm

• Backward/forward movement: 190mm – 210mm

• Vertical movement: 380mm – 420mm

• Swing angle: ±12° – ±18°

• Rotation angle: ±180°

• Orbit slide angle: 130° – 140°

• Red cross laser: 4 units

Precision mechanical positioning for consistent, repeatable C-arm positioning.
