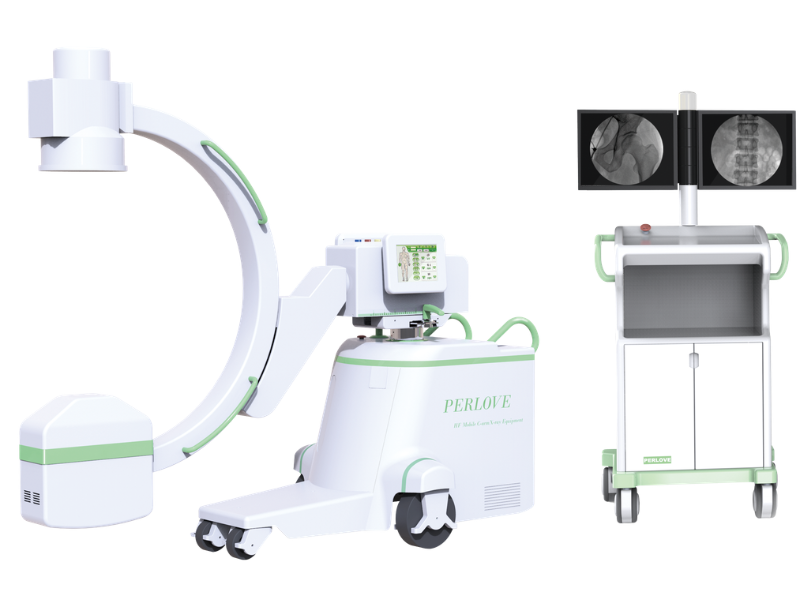

Perlove PLX7000C High Frequency Digital Mobile C-arm #

High-Power Digital Mobile C-Arm with Maximum Power Output
The PLX7000C is a high-power high-frequency digital mobile C-arm system featuring 16kW output power — the highest in the PLX7000 series — with continuous, pulsed, and enhanced fluoroscopy modes. Designed for advanced pain management, orthopedics, and complex surgical procedures requiring maximum power and versatile imaging capabilities.

Standard Power Supply

• Voltage: 220V

• Frequency: 50Hz

Operates on standard wall outlets — no special electrical installation required.

High-Frequency Generator for Maximum Performance
Powered by a 16kW high-frequency generator with a 60kHz inverter frequency, the system delivers exceptional X-ray output, ultra-short exposure times, and optimized patient dose for the most demanding fluoroscopic procedures.

Comprehensive Fluoroscopy & Exposure Parameters

• Continuous Fluoroscopy: 40–125kV, 0.3–4mA

• Enhanced Fluoroscopy: 40–125kV, 0.3–8mA

• Pulse Fluoroscopy: 40–125kV, 0.3–30mA

• Photography (Radiography): 40–125kV, 25–200mA, 1.0–320mAs

Supports continuous, enhanced, and pulsed fluoroscopy modes plus radiographic imaging with maximum parameter ranges.

High-Quality X-Ray Tube

• Focus size: 0.3/0.6mm

• Tube heat capacity: 1000KJ

• Anode heat capacity: 212KJ

Dual focus design optimized for both fluoroscopic and radiographic imaging with enhanced thermal capacity.

Canon Image Intensifier for Superior Image Quality

• Image intensifier: Canon 9" three visual fields

• Resolution: 4.8 lp/mm

• DQE: 0.65

• CCD camera pixel: 1024 × 1024

• Gray scale: 12-bit

Delivers bright, clear fluoroscopic images with Canon's renowned image intensifier technology.

Comprehensive Workstation Package

• Exposure controller: 1 handheld parameter controller + 2 handheld mechanical motion controllers + 2 exposure foot switches

• Monitor size: 19" × 2 (dual monitor configuration)

Complete control interface for both imaging parameters and mechanical positioning.

Advanced Mechanical Specifications (Four Electric, One Manual)

• SID: 1060mm

• Free space: 860mm

• Depth: 700mm

• Backward/forward movement: ≥200mm

• Vertical movement: ≥400mm

• Swing angle: ≥±15°

• Rotation angle: ≥±180°

• Orbit slide angle: ≥120°

• Red cross laser: 1 set cross-positioning laser

• Mechanical movement control: Four electric, one manual

Electric positioning on four axes reduces operator effort and enables precise, repeatable C-arm positioning.
