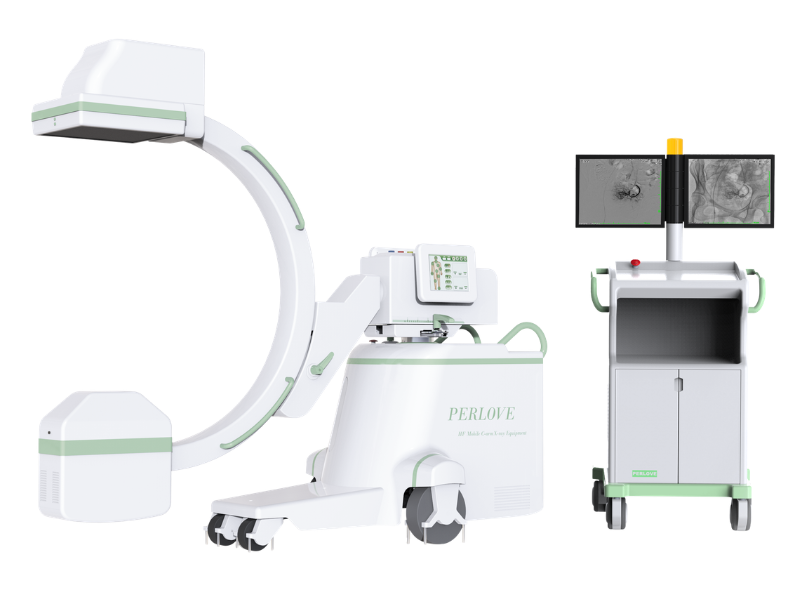

Perlove PLX7100A Mobile Flat Panel Detector C-arm for Vascular Intervention #

High-End Mobile C-Arm with Flat Panel Detector – Designed for Vascular Intervention & Orthopedics
The PLX7100A is a high-end mobile flat panel detector C-arm system available in both Orthopedic Version and Interventional Version — designed for vascular intervention, complex orthopedics, and advanced fluoroscopic procedures requiring exceptional image quality and precise five-dimensional electric motion control.

Standard Power Supply

• Voltage: 220V

• Frequency: 50Hz

Operates on standard wall outlets — no special electrical installation required.

High-Frequency Generator for Superior Performance
Powered by a 25kW high-frequency generator with a 60kHz inverter frequency, the system delivers exceptional X-ray output and optimized patient dose for demanding interventional and orthopedic procedures.

Comprehensive Fluoroscopy & Exposure Parameters

• Continuous Fluoroscopy: 40–125kV, 0.3–5mA (continuously adjustable)

• Enhanced Fluoroscopy: 40–125kV, 0.3–10mA (continuously adjustable)

• Pulse Fluoroscopy: 40–125kV, 0.3–100mA (continuously adjustable)

• Pulse Frequency: 12.5 frames/second

• Radiography: 40–125kV, 70–200mA, 0.1–320mAs

Supports continuous, enhanced, and pulsed fluoroscopy modes plus radiographic imaging — ideal for vascular and orthopedic procedures.

High-Quality X-Ray Tube – Rotating Anode

• Focus size: 0.6–1.3mm (rotating anode)

• Tube heat capacity: 1000KJ

• Anode heat capacity: 80KJ

Rotating anode design with high thermal capacity for sustained performance during long interventional procedures.

Thales Flat Panel Detector for Premium Image Quality

• Detector brand: Thales / Flat Panel Detector (FPD)

• Detector size: 30cm × 30cm

• Spatial resolution: 2.7 lp/mm

• Gray scale: 16-bit

Delivers premium digital images with exceptional uniformity and low noise for confident diagnosis in vascular interventions.

Comprehensive Workstation Package

• Exposure controller: 1 handheld motion controller + 2 exposure foot switches

• Monitor size: 21" 2M gray scale medical LCD display × 2

Dual high-resolution medical-grade displays for simultaneous viewing of live fluoroscopy and reference images.

Five-Dimensional Electric Motion – Precision Positioning

• SID: 955mm – 1155mm

• Free space: 744mm – 944mm

• Depth: 826mm

• Backward/forward movement: 200mm

• Column lifting distance (electric): 400mm

• Swing around vertical axis: ±15°

• Rotation around horizontal axis: ±180°

• Slip along track: ≥120° (-30°/+90°)

• Mechanical motion: Five-dimensional electric motion

Five-axis electric positioning enables precise, repeatable C-arm positioning — essential for complex vascular and orthopedic procedures.
