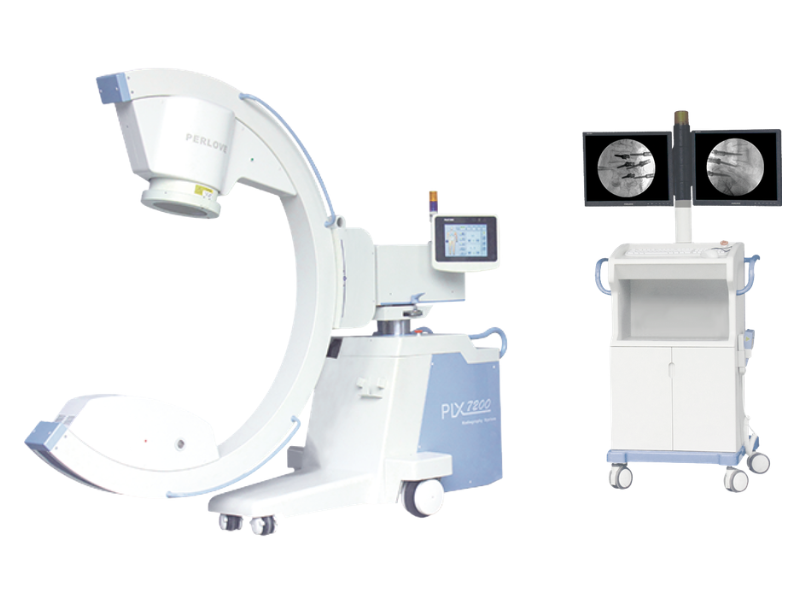

Perlove PLX7200 Surgical C Arm With 3D Intraoperative Reconstruction #

Advanced Surgical C-Arm with 3D Image Intensifier – Intraoperative 3D Reconstruction
The PLX7200 is a premium surgical C-arm system featuring a 3D image intensifier and intraoperative 3D reconstruction capability — designed for complex orthopedic surgery, trauma, spinal procedures, and interventional pain management requiring real-time 2D fluoroscopy and intraoperative 3D imaging.

Standard Power Supply

• Voltage: 220V

• Frequency: 50Hz

Operates on standard wall outlets — no special electrical installation required.

High-Frequency Generator for Reliable Performance
Powered by a 5kW high-frequency generator with a 60kHz inverter frequency, the system delivers stable X-ray output and optimized patient dose for surgical procedures.

Comprehensive Fluoroscopy & Exposure Parameters

• Continuous Fluoroscopy: 40–120kV, 0.3–15mA (continuously adjustable)

• Pulse Fluoroscopy: 40–120kV, 0.3–30mA (continuously adjustable)

• Pulse Frequency: 0.5–8 frames/second

• Radiography: 40–120kV, 80mA, 0.1–180mAs

• Track Sliding Sequence Radiography: 40–120kV, 0.3–15mA (continuously adjustable)

• Sequence Photography Range: 100 frames

Supports continuous fluoroscopy, pulsed fluoroscopy, radiographic imaging, and sequence imaging for comprehensive surgical guidance.

High-Quality X-Ray Tube – Fixed Anode

• Focus size: 0.6–2.0mm (fixed anode)

• Tube heat capacity: 650KJ

• Anode heat capacity: 35KJ

Fixed anode design optimized for surgical C-arm applications.

Canon Image Intensifier with 3D Reconstruction

• Detector: Image intensifier with 3D capability

• Detector size: 9" three visual fields

• Spatial resolution: 4.8 lp/mm

• Gray scale: 12-bit

• Acquisition matrix: Megapixel

The 9" image intensifier with 3D intraoperative reconstruction enables real-time 2D navigation and immediate 3D verification — reducing the need for post-op CT scans.

Comprehensive Workstation Package

• Exposure controller: 1 handheld parameter controller + 1 handheld motion controller + 2 exposure foot switches

• Monitor size: 19" 1M gray scale medical LCD display

Complete control interface for both imaging parameters and mechanical positioning.

Four-Dimensional Electric Motion with Isocenter Design

• SID: 1025mm

• Free space: 825mm

• Depth: 810mm

• Backward/forward movement: 200mm

• Column lifting distance (electric): 400mm

• Swing around vertical axis: ±15°

• Rotation around horizontal axis: ±180°

• Slip along track: 190°

• Mechanical motion: Four-dimensional electric motion with isocenter design

Isocenter design ensures the region of interest remains centered during C-arm rotation — critical for 3D image acquisition and reconstruction.
