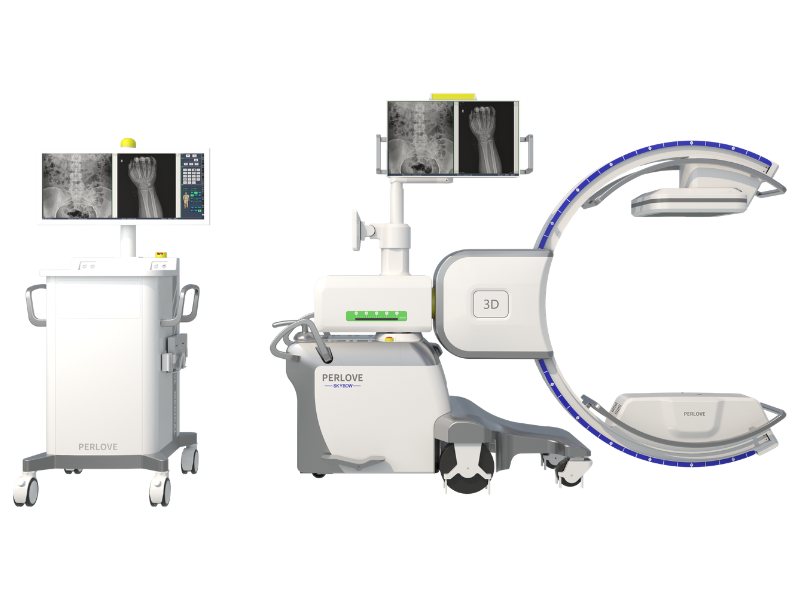

Perlove PLX7500 Surgical C-Arm with 3D Flat Panel Detector #

Premium Surgical C-Arm with 3D Flat Panel Detector – Intraoperative 3D Reconstruction
The PLX7500 is a premium surgical C-arm system featuring a 3D flat panel detector and intraoperative 3D reconstruction capability — designed for complex orthopedic surgery, trauma, spinal procedures, vascular interventions, and pain management requiring real-time 2D fluoroscopy and high-resolution intraoperative 3D imaging.

Standard Power Supply

• Voltage: 220V

• Frequency: 50Hz

Operates on standard wall outlets — no special electrical installation required.

High-Frequency Generator for Reliable Performance
Powered by a 5kW high-frequency generator with a 110kHz inverter frequency, the system delivers stable X-ray output and optimized patient dose for surgical procedures.

Comprehensive Fluoroscopy & Exposure Parameters

• Continuous Fluoroscopy: 40–125kV, 0.3–8mA (continuously adjustable)

• Pulse Fluoroscopy: 40–125kV, 0.3–30mA (continuously adjustable)

• Pulse Frequency: 0.5–8 frames/second

• Radiography: 40–125kV, 0.3–80mA, 0.1–180mAs

• Track Sliding Sequence Radiography: 40–112kV, 0.2–15mA (continuously adjustable)

Supports continuous fluoroscopy, pulsed fluoroscopy, radiographic imaging, and sequence imaging for comprehensive surgical guidance.

High-Quality X-Ray Tube – Fixed Anode

• Focus size: 0.6–1.2mm (fixed anode)

• Tube heat capacity: 650KJ

• Anode heat capacity: 60KJ

Fixed anode design optimized for surgical C-arm applications with enhanced anode heat capacity.

3D Flat Panel Detector for High-Resolution Imaging

• Detector: Flat panel detector (FPD) with 3D capability

• Detector size: 30cm × 30cm

• Acquisition matrix: 2000 × 2000

• Pixel pitch: 154μm

• Gray scale: 16-bit

The 3D flat panel detector delivers high-resolution intraoperative 3D reconstruction — enabling immediate surgical verification and reducing the need for post-operative CT scans.

Comprehensive Workstation Package with 4K Display

• Exposure controller: 1 handheld motion controller + 1 exposure foot switch

• Monitor size: 34" color medical LCD display (workstation) + 27" color medical LCD display (main unit) + 12.5" medical-grade touch screen

Multi-display setup with 34" workstation display, 27" main unit display, and dedicated touch screen for intuitive system control.

Five-Dimensional Electric Motion – Precision Positioning

• SID: 1000mm – 1100mm

• Free space: 800mm – 900mm

• Depth: 735mm

• Backward/forward movement: 200mm

• Column lifting distance (electric): 400mm

• Swing around vertical axis: ±15°

• Rotation around horizontal axis: ±180°

• Slip along track: 190°

• Mechanical motion: Five-dimensional electric motion

Five-axis electric positioning enables precise, repeatable C-arm positioning — essential for complex surgical procedures requiring 3D image acquisition.
