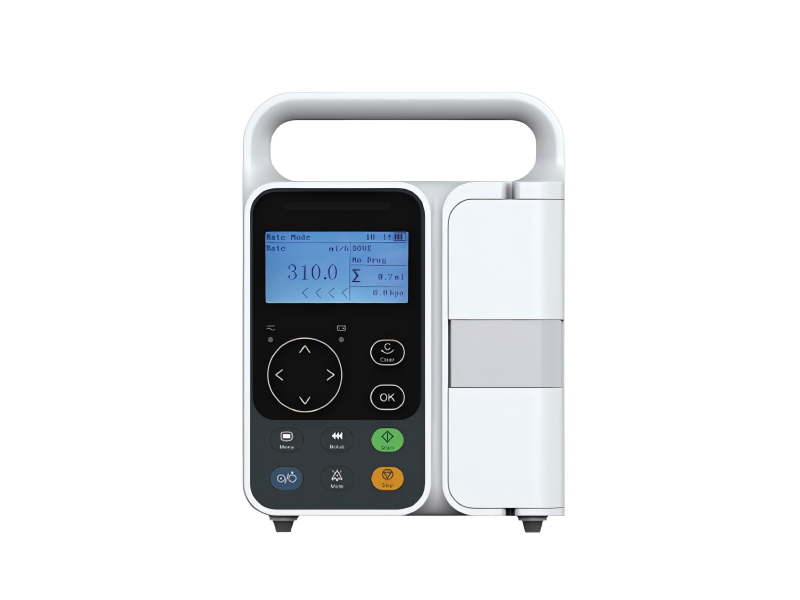

PI-IP3A Infusion Pump | Adjustable Anesthesia Pump for Operating Rooms

Adjustable infusion pump for general anesthesia with 0.1ml/h precision, 1200ml/h max rate, TCI compatibility, and real-time bubble monitoring. Ideal for OR, PACU, and regional anesthesia.

The Global Healthcare Medical PI-IP3A Adjustable Infusion Pump is a precision‑engineered infusion device specifically designed for general anesthesia in operating rooms and critical care settings. Merging smart infusion technology with robust safety features, this pump enables anesthesiologists to deliver precise, patient‑tailored anesthetic delivery aligned with individual pharmacokinetic models.

With an infusion speed range of 1–1200 ml/h adjustable in 0.1 ml/h increments, a 3‑inch monochrome LCD display, and a rechargeable lithium battery for uninterrupted mobility, the PI-IP3A is indispensable for target‑controlled infusion (TCI) , total intravenous anesthesia (TIVA) , postoperative analgesia, and regional anesthesia procedures.

This device is intended for professional use by trained anesthesiologists and healthcare professionals. Not a substitute for professional medical advice.

Key Features

🫀 Target‑Controlled Infusion for General Anesthesia

The PI-IP3A stands out as a premier target‑controlled infusion pump for general anesthesia in operating rooms. TCI is a sophisticated drug delivery system where a microprocessor calculates the infusion rate based on the target plasma or effect‑site concentration set by the anesthesiologist. This technology is widely used to administer short‑acting anesthetics such as propofol and remifentanil, enabling precise intra‑operative control and a fast recovery profile.

🎯 High‑Precision Flow Rate Control

The PI-IP3A delivers exceptional accuracy with an infusion speed range of 1–1200 ml/h, adjustable in precise 0.1 ml/h increments. This level of precision enables anesthesiologists to perform fine titration of anesthetic agents to match procedural needs—from slow continuous infusions to bolus doses. The infusion volume preset ranges from 0.1 ml to 9999.9 ml, also adjustable in 0.1 ml increments, with an infusion volume accuracy error of ±5% (using ordinary infusion sets).

🖥️ 3‑Inch Monochrome LCD Display

The 3‑inch monochrome LCD screen delivers clear, concise parameter visibility, allowing anesthesiologists to monitor infusion status at a glance. The intuitive interface simplifies parameter adjustments during critical procedures.

🛡️ Comprehensive Safety Features

Patient safety is paramount with the PI‑IP3A's robust safety systems:

• Real‑time bubble monitoring – Eliminates air embolism risks by promptly detecting air bubbles in the infusion line

• Adjustable occlusion pressure – Three levels: High (110 kPa), Medium (80 kPa), Low (40 kPa)

• Audible and visual alarms – Alerts for occlusions, empty reservoirs, volume completion, and air bubbles

• Instant system self‑test on startup – Verifies operational integrity before each use

🔄 KVO (Keep Vein Open) Mode

The auto‑progress KVO mode maintains venous patency between doses, preventing blockages and ensuring continuous patient care. The KVO rate is adjustable from 1–5 ml/h in 1 ml/h increments.

🔋 Portable Design with Rechargeable Battery

Equipped with a large‑capacity rechargeable lithium battery, the PI‑IP3A supports ambulatory use and uninterrupted operation during patient transport or in settings without direct power access.

💧 Durable & Water‑Resistant Construction

With an IPX1 waterproof rating, the PI‑IP3A withstands clinical disinfection and maintains durability in demanding operating room environments.

🩺 Versatile Clinical Applications

The PI‑IP3A excels across multiple anesthesia and pain management scenarios:

• General Anesthesia (OR) – Target‑controlled infusion for propofol, remifentanil, and other anesthetics

• Postoperative Analgesia – Continuous infusion for patient‑centric pain management in recovery wards

• Regional Anesthesia – Precise nerve blocks and local anesthetic delivery with 0.1 ml/h titration

• Intravenous Sedation – Reliable sedation for endoscopies, minor surgeries, and other procedures

• Total Intravenous Anesthesia (TIVA) – Computer‑assisted total IV anesthesia for optimal intra‑operative control

Specifications

Why Choose the PI‑IP3A?

What's Included

• PI‑IP3A Infusion Pump Main Unit

• 3‑inch Monochrome LCD Display

• Rechargeable Lithium Battery (built‑in)

• Power Adapter

• User Manual

Applications

The PI‑IP3A Adjustable Infusion Pump is suitable for:

• Operating Rooms – Target‑controlled infusion for general anesthesia

• Post‑Anesthesia Care Units (PACU) – Postoperative analgesia and pain management

• Anesthesia Departments – Total intravenous anesthesia (TIVA) and sedation

• Regional Anesthesia – Nerve blocks and local anesthetic delivery

• ICUs & Critical Care – Continuous medication infusion

• Wards & Clinics – Post‑surgical recovery and outpatient infusion therapy

FAQ

Q: What is the PI‑IP3A Adjustable Infusion Pump used for?

A: The PI‑IP3A is specifically designed for general anesthesia in operating rooms, supporting target‑controlled infusion (TCI) , total intravenous anesthesia (TIVA) , postoperative analgesia, and regional anesthesia procedures.

Q: What is Target‑Controlled Infusion (TCI)?

A: TCI is a drug delivery system where a microprocessor calculates the infusion rate based on the target plasma or effect‑site concentration set by the anesthesiologist. It is widely used to administer short‑acting anesthetics such as propofol and remifentanil.

Q: What is the infusion speed range and precision?

A: The PI‑IP3A offers an adjustable infusion speed from 1 to 1200 ml/h with precise 0.1 ml/h increments.

Q: Does the device have safety features?

A: Yes. The PI‑IP3A features real‑time bubble monitoring to eliminate air embolism risks, adjustable occlusion pressure (High/Medium/Low), and audible and visual alarms for occlusions, empty reservoirs, and volume completion.

Q: What is the KVO function?

A: The auto‑progress KVO (Keep Vein Open) mode maintains venous patency between doses, preventing blockages and ensuring continuous patient care.

Q: Does the PI‑IP3A have a battery?

A: Yes. The PI‑IP3A is equipped with a large‑capacity rechargeable lithium battery that supports ambulatory use and uninterrupted operation during patient transport.

Q: Is the device suitable for regional anesthesia?

A: Yes. The PI‑IP3A serves as a reliable adjustable flow rate infusion pump for regional anesthesia procedures, offering precise titration for nerve blocks and local anesthetic delivery.

Q: What is the infusion volume accuracy?

A: The PI‑IP3A maintains an infusion volume accuracy error of ±5% when using ordinary infusion sets.

Q: What clinical settings is the PI‑IP3A suitable for?

A: The PI‑IP3A is suitable for operating rooms, PACU, anesthesia departments, ICUs, wards, and outpatient clinics.

Q: What is the waterproof rating?

A: The PI‑IP3A features an IPX1 waterproof rating, enabling it to withstand clinical disinfection.
