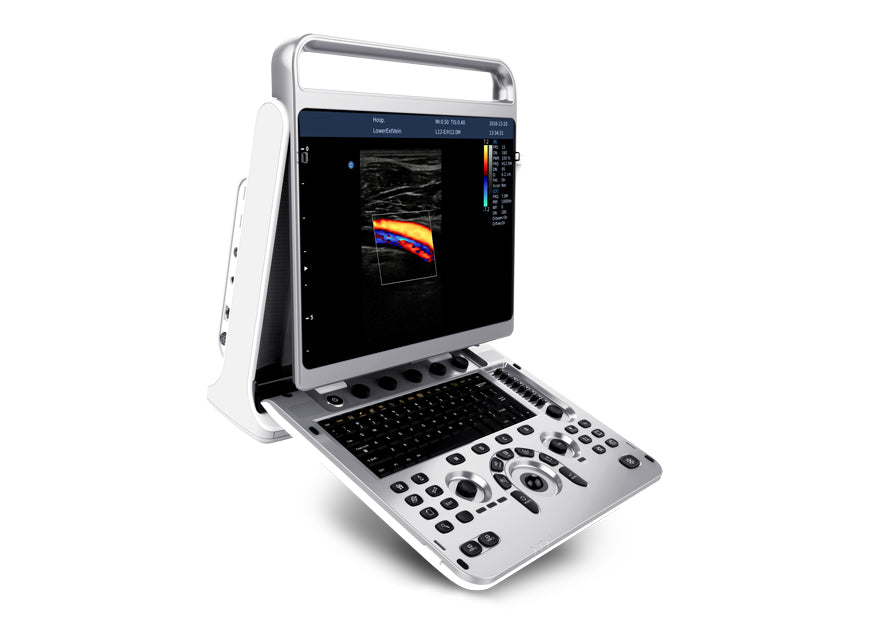

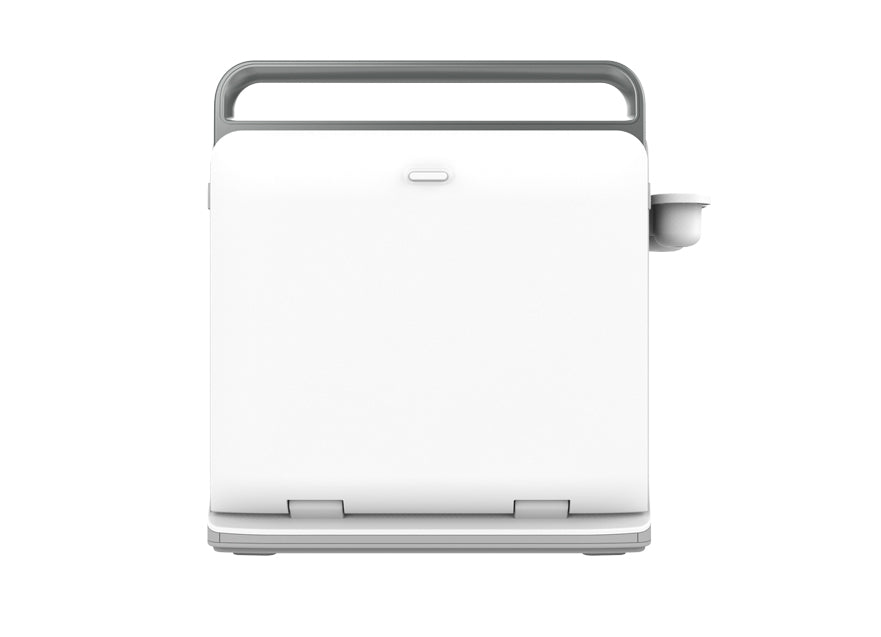

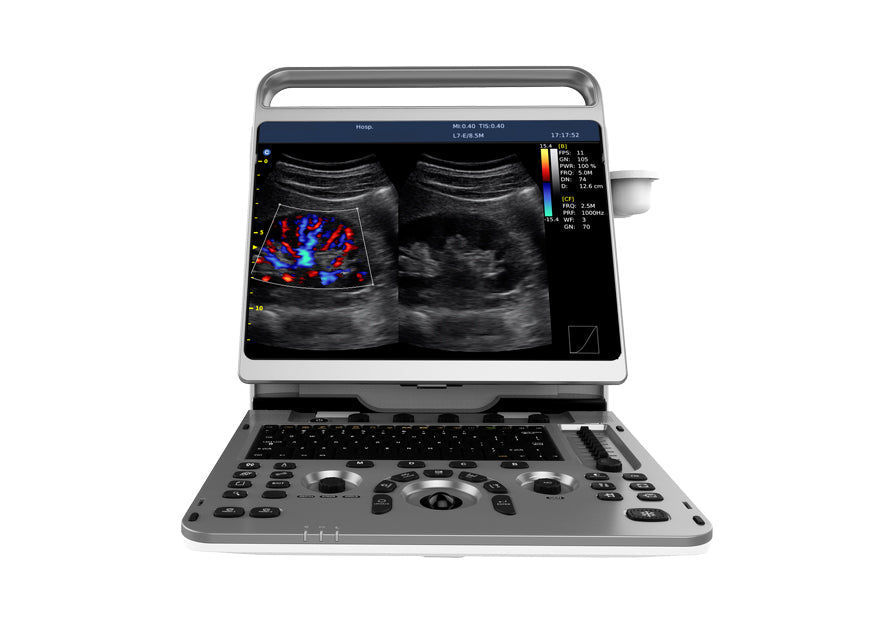

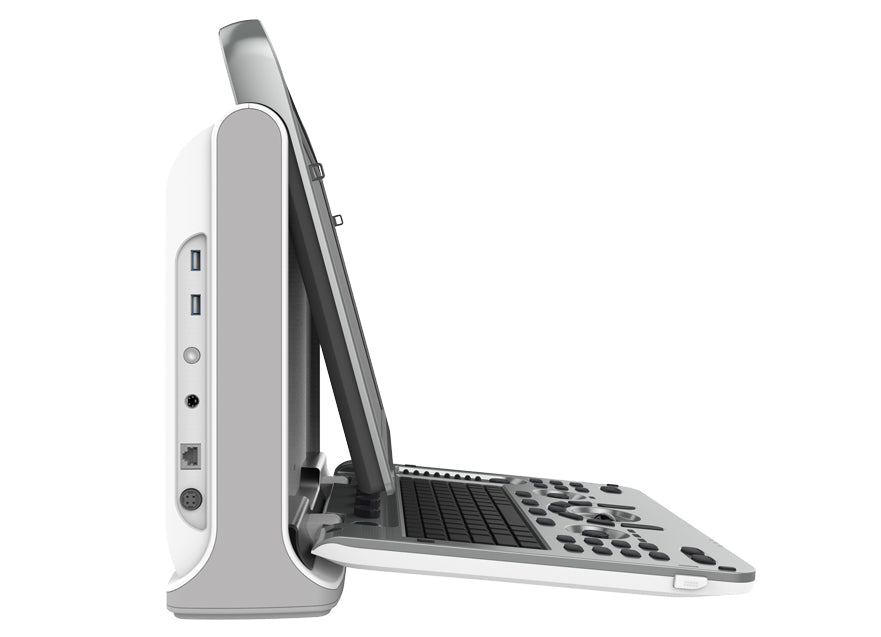

Portable Digital Color Doppler Ultrasound System EBit 50 #

Light weight
1. Dimensions of main unit(approx.): 358mm（Length）×125mm（Width）×399mm
2. Net weight of main unit (approx): 7.8kg (no probe included)

Operation Panel
1. 15 inch High resolution color LCD
2. Interactive backlit keys
3. Brightness adjustment
4. 8 STC Slides

Specifications
Detailed Standard Configuration
2 active probe ports, Pulse Wave Doppler, USB ports : 4 General measurement package, Clinical measurement packages, Multi-language screen display, AIO (Automatic Image Optimization), Intelligent Zoom, Speckle Reduction Algorithm (SRA), Q-Image software package

Options

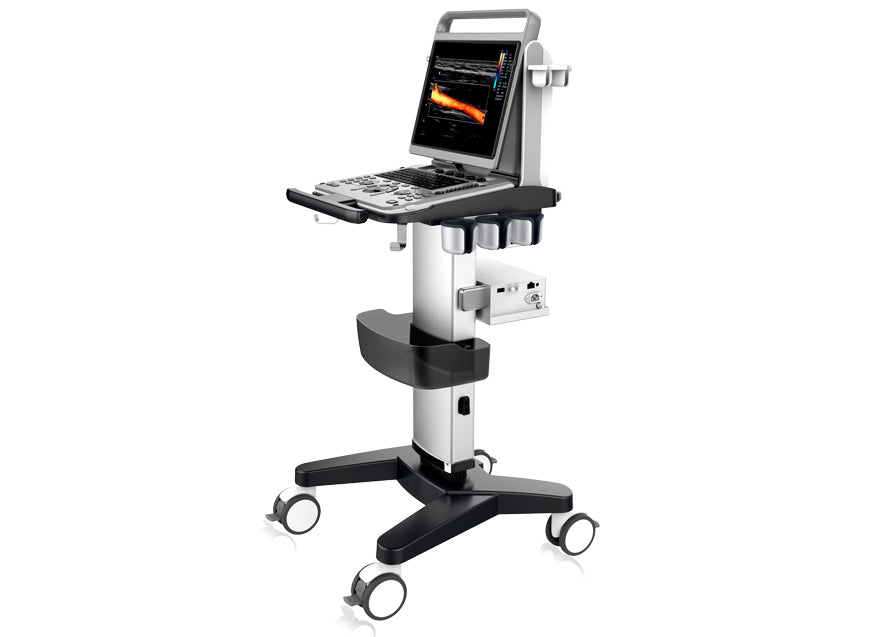

DICOM (storage, print, worklist), Super needle, CW, TDI, Color M, ECG, B/BC mode, 2D steer, Quadplex Mode, Curved Panoramic, Stress Echo Footswitch, Carrying case, Trolley, ECG cable

Display Modes
B Mode, B/M Mode, M Mode, 2B Mode, 4B Mode, 2D Steer (option), CFM Mode, CPA Mode, DPD Mode, PW Mode, B/BC Mode (option), Triplex Mode, CW Mode (option), TDI (option), Color M Mode (option), Trapezoidal Mode

Applications
Abdominal, Cardiac, Small organ, Peripheral Vascular, Transvaginal, Transrectal, Musculo-skeletal, Pediatric, Fetal, OB, GYN, Urology

Transducer Types
1. Convex transducer
2. Linear transducer
3. Transvaginal transducer
4. Phased array transducer
5. TransRectal transducer
6. Micro convex transducer
