Light weight
1. Dimensions of main unit(approx.): 335 mm (Length) * 155 mm (Width) * 350 mm (Height)
2. Net weight of main unit (approx): 6.5kg (no probe included)
Operation Panel
1. High resolution 12 Inch LED display
2. Back-lit Keyboard
3. 8 STC Slides
4. Angle adjustable: 0-30°
Specifications
Detailed Standard Configuration
2 active probe ports, 16G high speed memory (500G hard disk optional), USB ports : 3 Intelligent Zoom, Multiple Compound Imaging (MCI), Speckle Reduction Imaging(SRA), i-Image, Full screen show, BT-2500 li-ion battery General measurement package, Clinical measurement package, Multi-language screen display, EasyViewTM: image archive system, Patient information management system

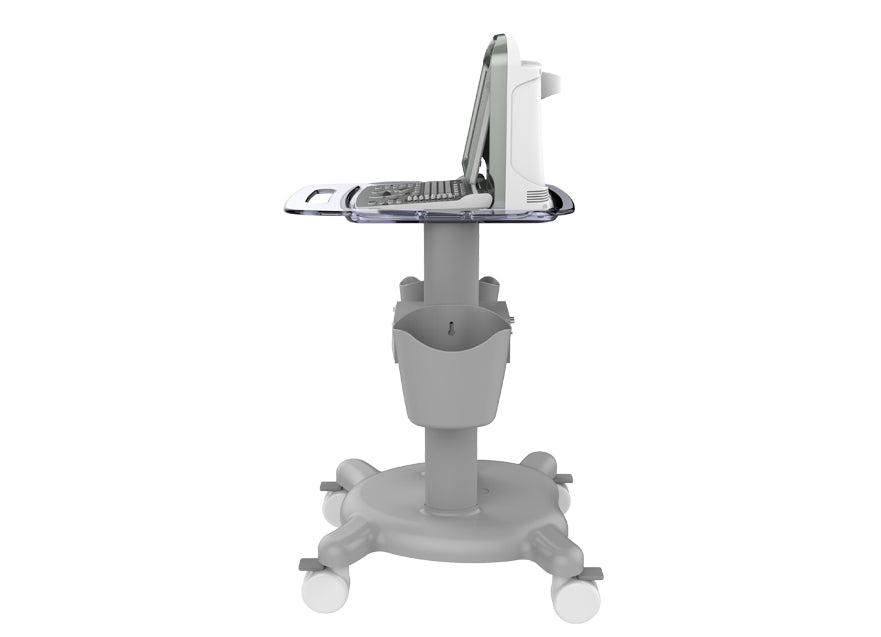

Options DICOM 3.0, Curved Panoramic Biopsy guide, Carrying Case, Trolley
Display Modes
B Mode, B/M Mode, M Mode, 2B Mode, 4B Mode, B steer, CFM Mode, CPA Mode, DPD Mode, D(PW) Mode, Triplex Mode, Trapezoidal Mode
Applications
Abdomen, Cardiology, Obstetrics, Gynecology, Urology, Vascular, Small Parts, Pediatrics, MSK, Nerve
Transducer Types
1. Convex transducer
2. Linear transducer
3. Rectal transducer
4. Phased array transducer
5. Micro convex transducer
7. 4D volume transducer
