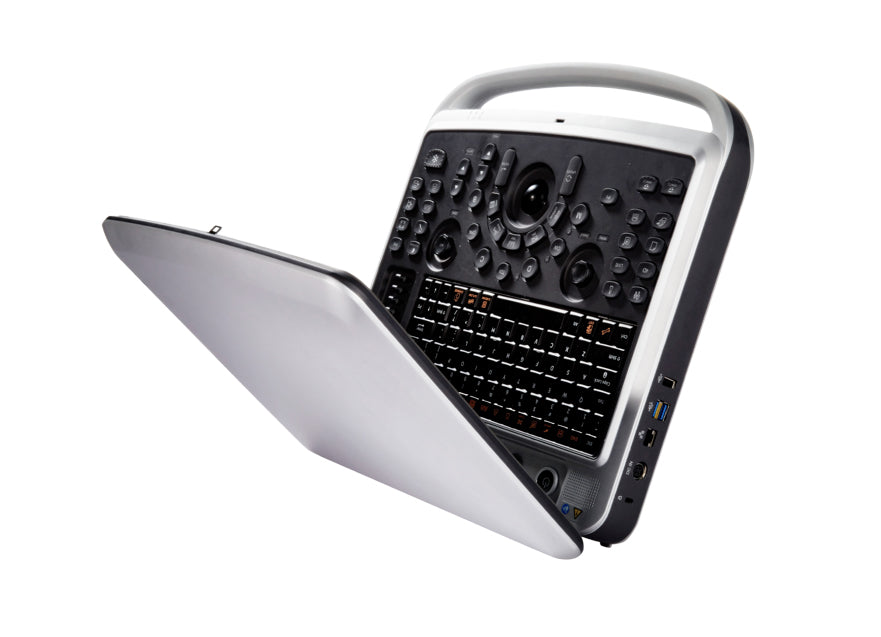

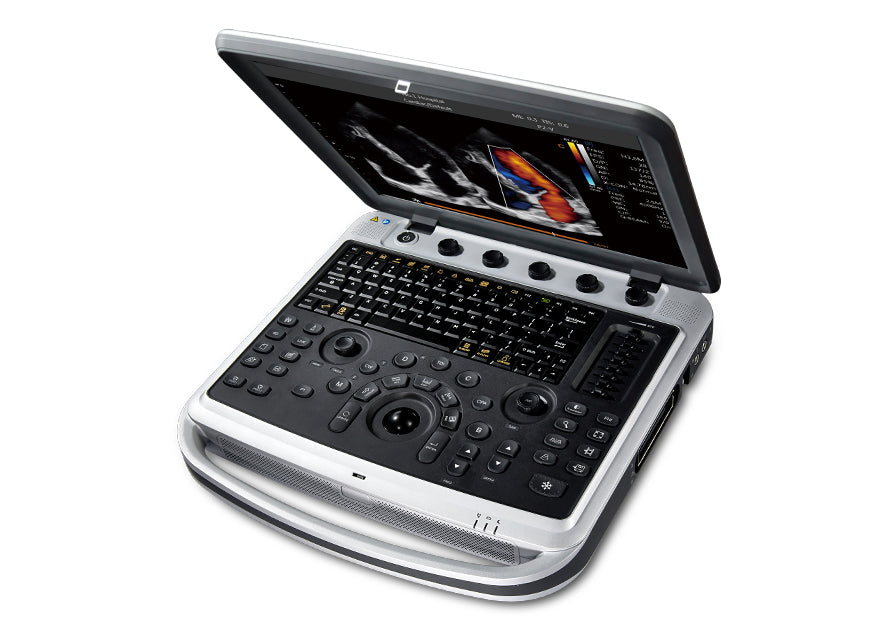

Portable Digital Color Doppler Ultrasound System SonoBook 6 #

Light weight
1.Dimensions of main unit(approx.): 366mm*355mm*55mm
2. Net weight of main unit (approx): 5.5kg (with battery)

Material
Built with Aluminum metal material and easy to clean.

Operation Panel
1. 15 inch High resolution color LCD
2. Interactive backlit keys
3. Brightness adjustment
4. Angle adjustable: 0-120°
5. 8 STC Slides

Specifications
Detailed Standard Configuration
1 active probe port, Pencil transducer port, ECG port, USB*3 X-Contrast, FHI, Q-Image, Q-flow, Q-beam, AIO (Automatic Image Optimization), Biopsy, One key for full screen view, Compound, SRA, Chroma, 2D Steer, Triplex mode, CW mode, Auto IMT, Biopsy, Auto ambience adjustment, General measurement package, OB measurement package, GYN measurement package, URO measurement package, Cardiac measurement package, Vascular measurement package, Small parts measurement package, Pediatric measurement package, TCD measurement package

Options
DICOM (storage, print, worklist), Super needle, CW, TDI, Color M, ECG ECG Cable, Docking, Wifi, Trolley, External Battery, Triple transducer connectors, Carry Bag

Display Modes
B Mode, B/M Mode, M Mode, Dual Mode, Quad Mode, 2D Steer, CFM Mode(Color DopplerImage), CPA Mode(Power Doppler Image), DPD Mode(Directional Power Doppler), PW Mode (Pulse Wave Doppler), B/BC Mode, Triplex Mode (only for linear transducer)

Applications
Abdominal, Cardiac, Small organ, Peripheral Vascular, Transvaginal, Transrectal, Musculo-skeletal, Pediatric, Fetal, OB, GYN, Urology

Transducer Types
1. Convex transducer
2. Linear transducer
3. Transvaginal transducer
4. Micro convex transducer
5. Phased array transducer
