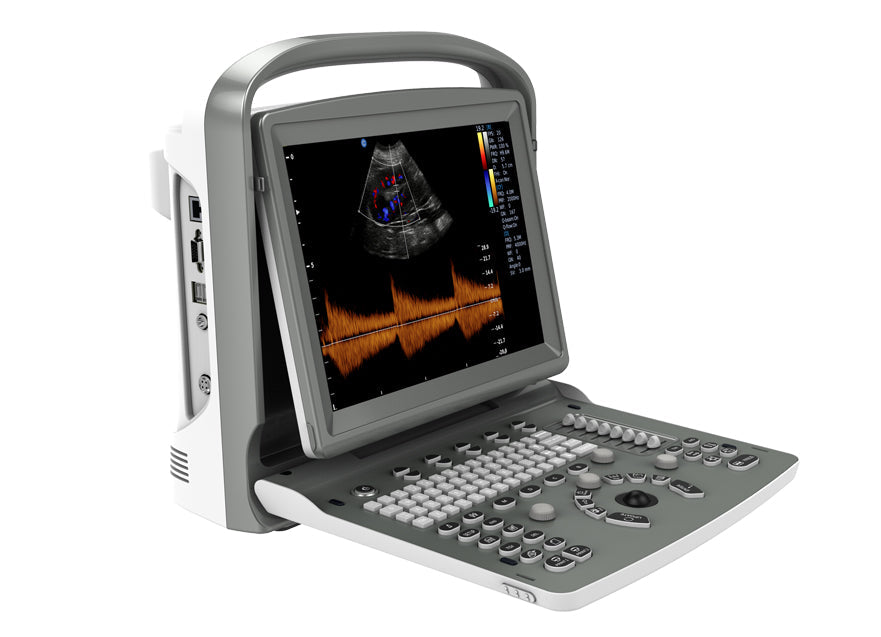

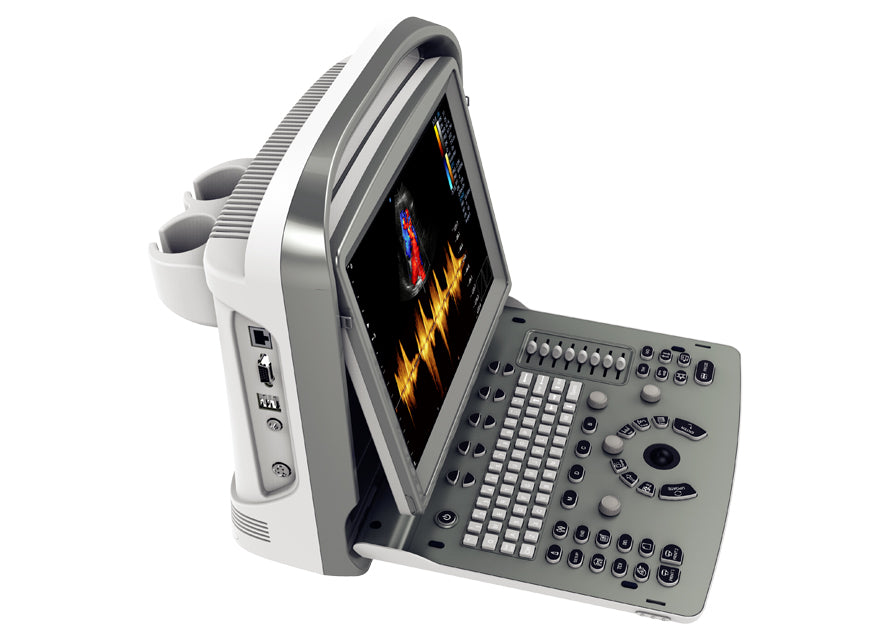

Portable Veterinary Color Doppler Ultrasound System ECO 6 VET #

Light weight
1. Dimensions of main unit(approx.): 335 mm (Length) * 155 mm (Width) * 350 mm (Height)
2. Net weight of main unit (approx): 6.5kg (no probe included)

Operation Panel
1. High resolution 12 Inch LED display
2. Back-lit Keyboard
3. 8 STC Slides
4. Angle adjustable: 0-30°

Specifications
Detailed Standard Configuration
2 active probe ports, 16G high speed memory (500G hard disk optional), USB ports : 3 Intelligent Zoom, Multiple Compound Imaging (MCI), Speckle Reduction Imaging(SRA), i-Image, Triplex, Full Screen, General measurement package, Clinical measurement package, Multi-language screen display, EasyViewTM: image archive system, Patient information management system

Options
DICOM 3.0, Curved Panoramic, Super needle, Auto IMT Biopsy guide, Carrying Case, Trolley

Display Modes
B Mode, B/M Mode, M Mode, 2B Mode, 4B Mode, B steer, CFM Mode, CPA Mode, DPD Mode, D(PW) Mode, Triplex Mode, Trapezoidal Mode , Super Needle (option)

Applications
Canine (Abdomen, Repro, Cardiac) , Feline (Abdomen, Repro, Cardiac) , Equine (Abdomen, Repro, Cardiac, Testicle, Tendon) , Bovine (Abdomen, Repro, Cardiac) , Ovine (Abdomen, Repro, Cardiac), etc.

Transducer Types
1. Convex transducer
2. Linear transducer
3. Linear Rectal transducer
4. Phased array transducer
5. Micro convex transducer
