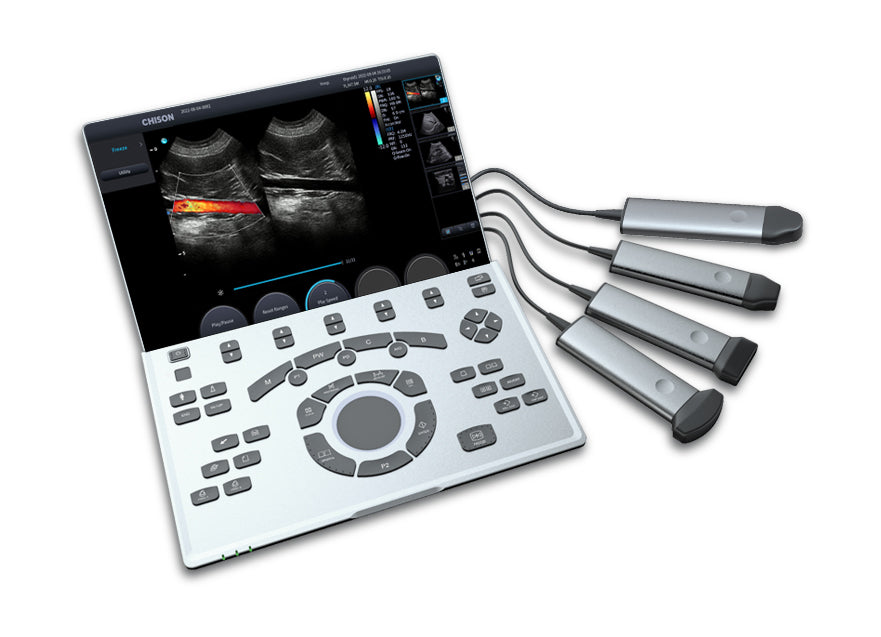

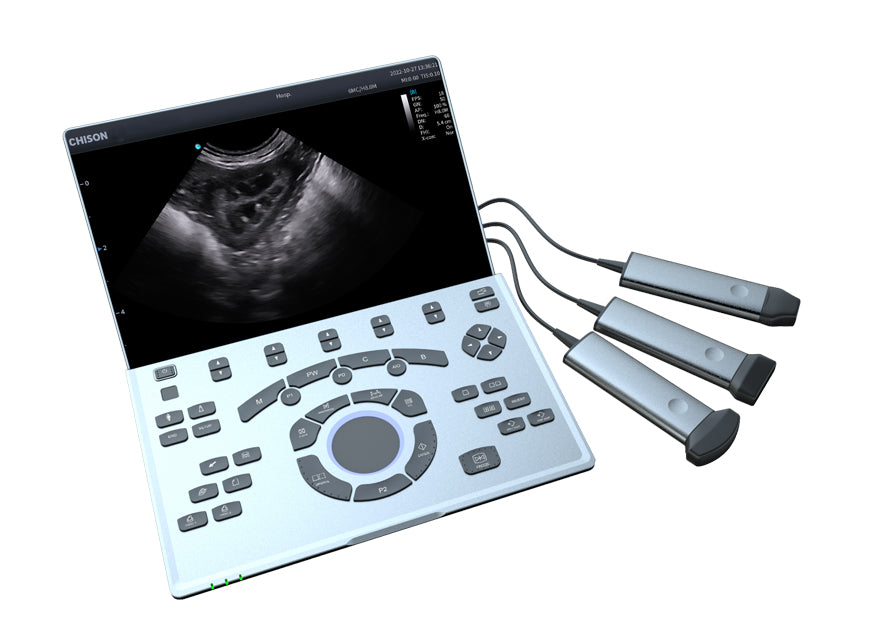

Portable Veterinary Color Doppler Ultrasound System SonoAir 70 VET #

Light weight
1. Dimensions of main unit (approx.): 322mm（Length）×217mm（Width）×26mm（Height）
2. Net weight of main unit (approx.): 2.1kg (no probe included)

Probe Connectors
Probe Connectors *4 (With a dedicated trolly, it is a Hybrid of Portable and Cart-based Ultrasound)

Material
Built with Aluminum metal material and easy to clean.

Triple-Touch
1. 14.1 inch Touch Screen: High resolution 14.1 Inch LCD display; Resolution: 1920 x 1080；Angle adjustable range: 0-135°
2. Touch pad
3. Touch ID: Finger print

Ultra-Green
1. Battery: 180+mins for sanning & 36h+ for stand by
2. Fast response: Instant 3s Wake-Up from Standby Mode

Specifications
Detailed Standard Configuration
1. USB 3.0*2, LAN, HDMI, Wifi, Bluetooth, ≥128G integrated hard disk(Can be upgraded to a higher capacity) 2. AIO (Automatic Image Optimization), Speckle Reduction Algorithm (SRA), Q-Image, X-Contrast, Compound, FHI, Zoom, SonoZoom

Options
DICOM (storage, print, worklist), SonoHelp, SonoNeddle, SonoBladder, TDI, Color M Mode Dedicated trolly, Caring case, Biopsy Kit

Display Modes
B Mode, B/M Mode, M Mode, 2B Mode, 4B Mode , 2D Steer, CFM Mode, CPA Mode, DPD Mode, PW Mode , B/BC Mode, Trapezoidal Mode, Super Needle

Applications
Abdomen, Cardiac, Kidney, Reproduction , Superficial, SMP etc.

Transducer Types
1. Convex transducer
2. Linear transducer
3. Phased array transducer
4. Micro convex transducer
