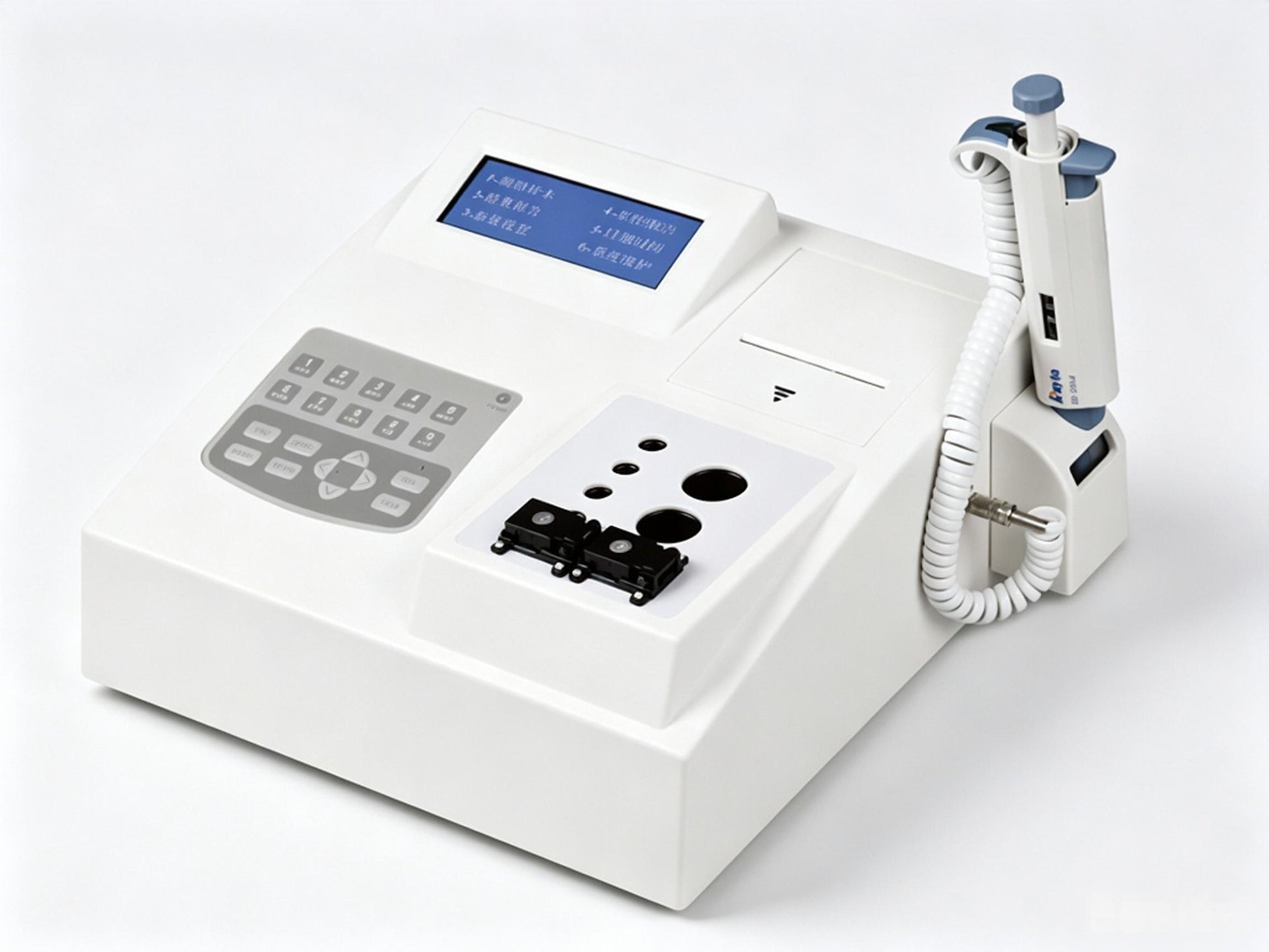

RT-2202 Coagulation Analyzer | 2‑Channel Semi‑Auto Coagulation System with Built‑in Printer

2‑channel semi‑automated coagulation analyzer for PT, APTT, TT, and FIB testing. Scattered light detection, 6000‑result storage, built‑in printer, and low reagent consumption. Ideal for small labs and clinics.

The Global Healthcare Medical RT-2202 Semi‑Automated Coagulation Analyzer is a compact, user‑friendly benchtop system designed for reliable and efficient routine coagulation testing in small to medium‑sized clinical laboratories, hospitals, and clinics. Featuring two independent test channels and an advanced scattered light detection principle with percentage analysis, this analyzer delivers accurate results for key hemostasis parameters including PT, APTT, TT, and FIB.

Designed with the operator in mind, the RT‑2202 offers an intuitive keypad interface, large LCD display, built‑in thermal printer, and storage for up to 6,000 test results—providing an ideal balance of performance, simplicity, and value for laboratories with limited bench space. Its open reagent architecture and low reagent consumption ensure flexibility and cost‑effective operation.

This device is intended for professional use in clinical laboratory settings by trained professionals. Not a substitute for professional medical diagnosis.

Key Features

⚡ Dual‑Channel Independent Testing

The RT‑2202 features two independent test channels that can simultaneously test two different coagulation parameters, significantly improving testing efficiency in busy laboratory environments. Each channel operates independently, allowing for flexible workflow management.

🔬 Advanced Scattered Light Detection Technology

Utilizing a precise scattered light detection method combined with percentage analysis, this semi‑automated coagulation analyzer delivers consistent and accurate endpoint detection, minimizing errors and enhancing test reliability. The automatic zero‑tracking technology ensures accurate testing even with challenging samples containing high lipids, jaundice, hemolysis, or chyle.

📊 Multiple Coagulation Parameters

The RT‑2202 is designed for clinical coagulation testing, supporting key parameters including:

• PT – Prothrombin Time

• APTT – Activated Partial Thromboplastin Time

• TT – Thrombin Time

• FIB – Fibrinogen

It also offers two methods for fibrinogen testing: PT derivation method and Clauss method. The system is applicable for clinical bleeding and coagulation tests (PT, APTT, TT, FIB) as a Class II medical device.

🖨️ Built‑In Thermal Printer & 6000‑Result Storage

The RT‑2202 includes a built‑in thermal‑sensitive printer for immediate hard‑copy results. The generous onboard memory can store up to 6,000 test results for easy data management and retrieval.

🧪 Low Reagent Consumption

The system features minimal reagent consumption, reducing operational costs:

• APTT, TT, FIB: 25 µL

• PT: 40 µL

This low reagent volume makes the RT‑2202 highly cost‑effective for routine coagulation testing.

📋 Comprehensive Quality Control

The RT‑2202 offers three kinds of QC levels with comprehensive quality control functions that can display and print QC charts and perform statistical analysis on QC data. Integrated QC and calibration programs ensure result accuracy and consistency.

⚙️ Practical Features for Laboratory Efficiency

• Reagent positions with a magnetic stirrer for optimal mixing

• Four sample pre‑heating positions and two reagent pre‑heating positions at 37°C ± 0.5°C

• Electronic pipette interface with synchronized trigger timing for more precise testing (manual trigger also available)

• Power‑off protection with automatic test result saving

• STAT (emergency) sample priority function

• Dedicated test position shading system to eliminate external light interference

• Auto power‑on self‑check for reliable operation

🔌 Connectivity & Optional Features

• Standard RS‑232 communication port for data transfer

• Electronic pipette interface

• Optional multi‑language software

• Optional electronically‑linked pipette

🏥 Compact, Space‑Saving Design

With dimensions of 280 × 310 × 160 mm and a weight of just 5 kg, the RT‑2202 is a space‑saving, cost‑effective instrument perfect for laboratories with limited bench space.

Specifications

What's Included

• RT‑2202 Semi‑Automated Coagulation Analyzer Main Unit

• 2 Independent Test Channels

• Built‑in Thermal Printer

• LCD Display

• 4 Sample Pre‑Heating Positions

• 2 Reagent Pre‑Heating Positions (with magnetic stirrer)

• Electronic Pipette Interface

• Power Cable

• User Manual

• Installation and Training Support

Applications

The RT‑2202 Semi‑Automated Coagulation Analyzer is suitable for:

• Clinical Laboratories – Routine coagulation testing for PT, APTT, TT, and FIB

• Hospitals – Comprehensive coagulation testing in hospital laboratories

• Clinics – Point‑of‑care coagulation analysis

• Primary Care Facilities – Efficient patient testing with low reagent consumption

• Outpatient Clinics – Rapid turnaround testing with STAT priority

• Small Laboratories – Space‑saving design for limited bench space

Why Choose the RT‑2202?



FAQ

Q: What is the RT‑2202 Semi‑Automated Coagulation Analyzer?

A: The RT‑2202 is a compact, user‑friendly benchtop coagulation analyzer designed for reliable routine coagulation testing (PT, APTT, TT, and FIB) in small to medium‑sized laboratories and clinics.

Q: How many test channels does the RT‑2202 have?

A: The RT‑2202 features two independent test channels that can simultaneously test two different coagulation parameters.

Q: What detection principle does the RT‑2202 use?

A: The analyzer uses scattered light detection with percentage analysis and automatic zero‑tracking technology for accurate endpoint detection, even with challenging samples containing high lipids, jaundice, hemolysis, or chyle.

Q: What coagulation parameters can the RT‑2202 test?

A: The RT‑2202 supports PT (Prothrombin Time), APTT (Activated Partial Thromboplastin Time), TT (Thrombin Time), and FIB (Fibrinogen).

Q: How many test results can the RT‑2202 store?

A: The RT‑2202 can store up to 6,000 test results for easy data management and retrieval.

Q: Does the RT‑2202 have a built‑in printer?

A: Yes. The RT‑2202 includes a built‑in thermal‑sensitive printer for immediate hard‑copy results.

Q: What is the reagent consumption?

A: The RT‑2202 features low reagent consumption: 25 µL for APTT, TT, and FIB, and 40 µL for PT.

Q: What quality control features are available?

A: The RT‑2202 offers three QC levels with the ability to display and print QC charts and perform statistical analysis on QC data.

Q: Does the RT‑2202 support STAT (emergency) testing?

A: Yes. The RT‑2202 features a STAT sample priority function for urgent testing.

Q: What are the dimensions and weight of the RT‑2202?

A: The RT‑2202 measures 280 × 310 × 160 mm and weighs 5 kg.

Q: What connectivity options are available?

A: The RT‑2202 features a standard RS‑232 communication port and an electronic pipette interface.

Q: What certifications does the RT‑2202 have?

A: The RT‑2202 is a CE certified and SFDA Class II medical device.
