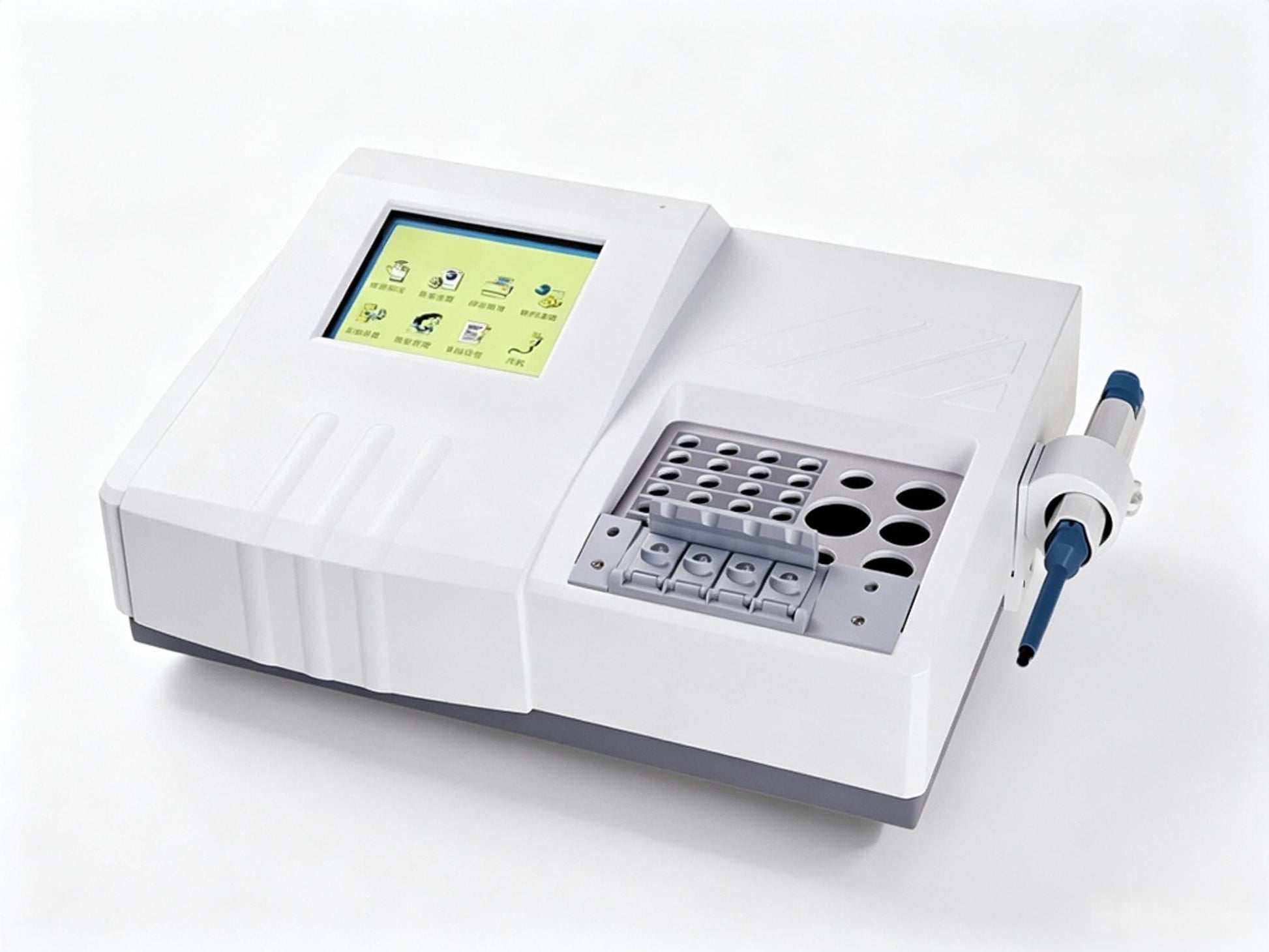

RT-2204C Coagulation Analyzer | 4‑Channel Semi‑Auto Coagulation System with Advanced QC

4‑channel semi‑automated coagulation analyzer for PT, APTT, TT, FIB, and factor assays. Scattered light detection, 24 sample pre‑heat positions, 10,000‑result storage, and 3 QC levels. Ideal for clinical labs and hospitals.

The Global Healthcare Medical RT-2204C Semi‑Automated Coagulation Analyzer is a versatile, high‑performance benchtop system designed for reliable and efficient routine and specialized coagulation testing in clinical laboratories, hospitals, and diagnostic centers. Featuring four independent test channels that can simultaneously analyze four different parameters, this analyzer delivers exceptional throughput and workflow flexibility.

Utilizing an advanced scattered light detection principle with percentage analysis and automatic zero‑tracking technology, the RT‑2204C ensures accurate and consistent results even with challenging samples containing high lipids, jaundice, hemolysis, or chyle. The system supports a comprehensive test menu including PT, APTT, TT, FIB, coagulation factors, and D‑Dimer, making it suitable for a wide range of hemostasis applications. With 24 sample pre‑heating positions, a generous 10,000‑result storage capacity, and three levels of quality control, the RT‑2204C provides the ideal balance of performance, flexibility, and value for laboratories with moderate to high testing volumes.

This device is intended for professional use in clinical laboratory settings by trained professionals. Not a substitute for professional medical diagnosis.

Key Features

⚡ Four‑Channel Independent Testing

The RT‑2204C features four independent test channels that can simultaneously test four different coagulation parameters. This multi‑channel capability significantly improves testing efficiency in busy laboratory environments, allowing for flexible workflow management and reduced turnaround times.

🔬 Advanced Scattered Light Detection Technology

Utilizing a precise optical scattered light detection method combined with percentage analysis, this coagulation analyzer delivers consistent and accurate endpoint detection. The automatic zero‑tracking technology ensures reliable testing even with challenging samples.

📊 Comprehensive Test Menu

The RT‑2204C supports a wide range of coagulation parameters, including:

• PT – Prothrombin Time

• APTT – Activated Partial Thromboplastin Time

• TT – Thrombin Time

• FIB – Fibrinogen

• Coagulation Factors – Factor II, V, VII, VIII, IX, X, XI, XII

• D‑Dimer

• AT‑III (Antithrombin III)

• PC (Protein C), PS (Protein S), APC‑R

• Heparin

🔧 High‑Capacity Sample & Reagent Management

• 24 sample pre‑heating positions

• 6 reagent pre‑heating positions

• Pre‑heating temperature: 37°C ± 0.5°C

• Minimum reagent volume: 25 µL

📋 Comprehensive Quality Control

The RT‑2204C offers three kinds of QC levels with integrated QC and calibration programs. The QC and calibration program incorporated provides reliable quality assurance, ensuring result accuracy and consistency.

💾 Extensive Data Storage & Connectivity

• 10,000 test results storage

• Large LCD display with intuitive interface

• RS‑232 bi‑directional communication port for data transfer

• 2 USB ports

• External printer support

🖥️ User‑Friendly Windows Interface

The RT‑2204C features a full Chinese/English Windows graphical interface with a large, high‑brightness LCD display. Operation is simple and intuitive, minimizing training time and reducing the risk of operator error.

💡 Durable LED Detectors & Low Consumption

The analyzer is equipped with four durable LED detectors, offering long‑term stability and low power consumption. The system features low consumption of reagents and consumables for cost‑effective operation.

⚙️ Practical Features for Laboratory Efficiency

• Auto self‑check on power‑on

• Electronically‑linked pipette for precise sample handling

• Multiform result output

Specifications

What's Included

• RT‑2204C Semi‑Automated Coagulation Analyzer Main Unit

• 4 Independent Test Channels

• Large LCD Display

• 24 Sample Pre‑Heating Positions

• 6 Reagent Pre‑Heating Positions

• Electronic Pipette (electronically‑linked)

• Power Cable

• User Manual

• Installation and Training Support

Applications

The RT‑2204C Semi‑Automated Coagulation Analyzer is suitable for:

• Clinical Laboratories – Routine and specialized coagulation testing

• Hospitals – Comprehensive hemostasis testing for patient management

• Thrombosis & Hemostasis Centers – Coagulation factor assays and anticoagulant monitoring

• Diagnostic Centers – High‑volume coagulation testing with 4‑channel efficiency

• Research Institutions – Coagulation research and assay development

• Sample Types – Human plasma

Why Choose the RT‑2204C?

FAQ

Q: What is the RT‑2204C Semi‑Automated Coagulation Analyzer?

A: The RT‑2204C is a versatile, high‑performance benchtop coagulation analyzer featuring four independent test channels, scattered light detection technology, and a comprehensive test menu for routine and specialized hemostasis testing.

Q: How many test channels does the RT‑2204C have?

A: The RT‑2204C features four independent test channels that can simultaneously test four different coagulation parameters.

Q: What detection principle does the RT‑2204C use?

A: The analyzer uses optical scattered light detection with percentage analysis and automatic zero‑tracking technology for accurate endpoint detection, even with challenging samples.

Q: What coagulation parameters can the RT‑2204C test?

A: The RT‑2204C supports PT, APTT, TT, FIB, coagulation factors (II, V, VII, VIII, IX, X, XI, XII), D‑Dimer, AT‑III, Protein C, Protein S, APC‑R, and Heparin.

Q: How many sample pre‑heating positions does the RT‑2204C have?

A: The RT‑2204C features 24 sample pre‑heating positions and 6 reagent pre‑heating positions at 37°C ± 0.5°C.

Q: What is the minimum reagent volume?

A: The minimum reagent volume is 25 µL.

Q: How many test results can the RT‑2204C store?

A: The RT‑2204C can store up to 10,000 test results.

Q: What quality control features are available?

A: The RT‑2204C offers three QC levels with integrated QC and calibration programs.

Q: What type of display does the RT‑2204C have?

A: The RT‑2204C features a large LCD display with a full Chinese/English Windows graphical interface.

Q: What connectivity options are available?

A: The RT‑2204C features an RS‑232 bi‑directional communication port and 2 USB ports.

Q: What certifications does the RT‑2204C have?

A: The RT‑2204C is a CE certified and SFDA Class II medical device.
