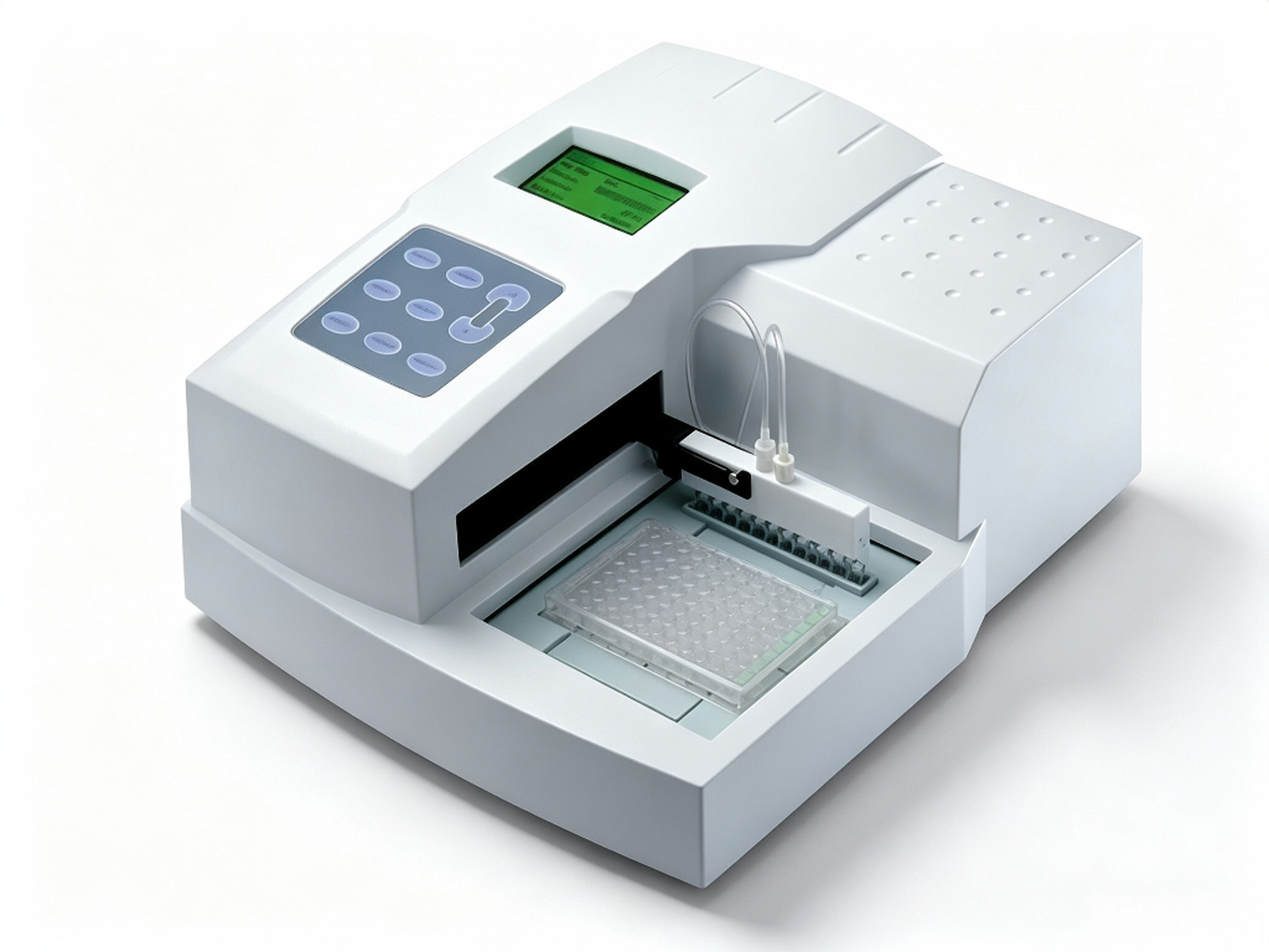

RT-2600C Microplate Washer | Automatic ELISA Washer with 8/12‑Channel Manifold
RT-2600C Microplate Washer | Automatic ELISA Washer with 8/12‑Channel Manifold
Couldn't load pickup availability
Fully automatic 8/12‑channel microplate washer with <1µL residual volume, 50 programmable protocols, and large 5" LCD display. Ideal for ELISA, clinical diagnostics, and research laboratories.
The Global Healthcare Medical RT-2600C Microplate Washer is a fully automatic, cost‑effective microplate washing system engineered for accurate and efficient plate washing in ELISA, clinical diagnostics, and research laboratories. Featuring a large 5‑inch LCD display with a graphical interface for easy operation, and interchangeable 8‑channel and 12‑channel manifolds, this microplate washer delivers exceptional flexibility, precision, and ease of use.
Designed to meet the diverse needs of modern laboratories, the RT-2600C supports flat‑bottom, U‑bottom, and V‑bottom 96‑well plates, 48‑well plates, and strip formats. With an ultra‑low residual volume of less than 1 µL per well, programmable wash cycles of up to 99 cycles, and a washing volume range of 50–3000 µL per well, this system ensures thorough, reproducible washing for consistent assay results. Whether you are performing ELISA in clinical diagnostics, food safety testing, or research laboratories, the RT‑2600C delivers the performance, versatility, and reliability you need.
This device is intended for professional use in laboratory settings by trained professionals. Not a substitute for professional medical diagnosis.
Key Features
🔄 Flexible 8/12‑Channel Manifold System
The RT-2600C features interchangeable 8‑channel and 12‑channel manifolds that can be easily swapped to accommodate different plate formats. This flexibility allows laboratories to optimize washing protocols for various applications—using 12‑channel manifolds for full 96‑well plates and 8‑channel manifolds for strip washing—without the need for multiple instruments.
💧 Ultra‑Low Residual Volume (<1 µL)
The RT-2600C achieves an exceptionally low residual volume of less than 1 µL per well with dual‑aspiration mode. This industry‑leading performance minimizes background noise and cross‑contamination, ensuring more accurate and reproducible assay results—critical for sensitive ELISA applications.
🧪 Dual‑Needle Design for Cross‑Contamination Prevention
The manifold features two needles for aspiration and dispensation, effectively isolating the washing and aspiration functions. This design minimizes cross‑contamination and ensures thorough, reliable washing.
📋 50‑Program Memory Storage
The system supports storage of up to 50 wash protocols, allowing laboratories to save and recall optimized protocols for different applications. Each program can be configured with up to 99 wash cycles, adjustable washing volume, and soaking time.
⚙️ Fully Programmable Wash Cycles & Volume Control
The RT-2600C offers extensive programmability for precise washing control:
| Feature | Specification |
|---|---|
| Wash Cycles | Up to 99 cycles, programmable |
| Washing Volume (8‑way) | 50–3000 µL per well |
| Washing Volume (12‑way) | 50–2000 µL per well |
| Strip Washing | 1–12 strips adjustable |
| Soaking Time | 0–24 hours |
| Dispense Precision | CV < 2% |
🖥️ Large LCD Display & Intuitive Interface
The RT-2600C features a 5‑inch LCD display with a graphical interface for easy operation. The intuitive design allows users to quickly program washing protocols, monitor wash cycles, and access stored programs with minimal training.
🔬 Versatile Plate Compatibility
The RT-2600C is compatible with a wide range of microplate formats:
-
96‑well plates – Flat‑bottom, U‑bottom, and V‑bottom
-
48‑well plates
⚙️ Advanced Safety & Monitoring Features
🏢 Compact & Durable Design
The RT-2600C features a compact footprint with dimensions of 390 × 330 × 177 mm and a weight of 9 kg, making it suitable for laboratories with limited bench space. Its durable construction ensures reliable, long‑term performance in busy laboratory environments.
🔌 Connectivity & Networking
The RT-2600C is equipped with an RS‑232 serial port, enabling seamless integration with laboratory information systems. When connected to the RT-2100C automatic microplate reader, it enables remote fault diagnosis and system upgrades.
Specifications
| Feature | Specification |
|---|---|
| Product Type | Microplate Washer / ELISA Washer |
| Model | RT‑2600C |
| Plate Types | 96‑well plates (flat, U, V‑bottom), 48‑well plates, strips |
| Manifold Options | 8‑channel or 12‑channel (interchangeable) |
| Residual Volume | <3 µL (single aspiration); <1 µL (dual aspiration) |
| Washing Volume (8‑way) | 50–3000 µL per well |
| Washing Volume (12‑way) | 50–2000 µL per well |
| Dispense Precision | CV < 2% |
| Wash Cycles | Up to 99 cycles (programmable) |
| Strip Washing | 1–12 channels adjustable |
| Soaking Time | 0–24 hours |
| Program Storage | 50 protocols |
| Display | 5‑inch LCD with graphical interface |
| Bottle Capacity | 2 L each (wash, rinse, waste) |
| Interface | RS‑232 serial port |
| Power Supply | AC 100‑240V, 50/60Hz |
| Dimensions (L×W×H) | 390 × 330 × 177 mm |
| Weight | 9 kg |
Applications
The RT-2600C Microplate Washer is suitable for:
-
Clinical Diagnostics – ELISA washing for infectious disease testing, hormone assays, and autoimmune screening
-
Immunology Laboratories – Antibody and antigen detection assays
-
Food Safety Testing – Allergen detection, foodborne pathogen screening
-
Veterinary Diagnostics – Animal disease testing and veterinary ELISA assays
-
Pharmaceutical Research – Drug development and quality control assays
-
Life Science Research – Protein quantification, cytokine analysis, and molecular biology applications
-
Public Health Laboratories – Disease surveillance and screening programs
Why Choose the RT-2600C?
| Standard Microplate Washers | Global Healthcare Medical RT-2600C |
|---|---|
| Higher residual volume | <1 µL residual volume – industry‑leading low carryover |
| Fixed manifold | Interchangeable 8/12‑channel manifolds for maximum flexibility |
| Limited program storage | 50‑program storage with 99 cycles per program |
| Basic display | 5‑inch LCD with graphical interface |
| Standard wash control | Programmable washing volume, cycles, soaking time, and strip selection |
| Limited plate compatibility | Flat, U, and V‑bottom plates, 48‑well plates, and strips |
| Basic safety features | Liquid level detection, pressure monitoring, and automatic rinse cycle |
What's Included
-
RT-2600C Microplate Washer Main Unit
-
12‑Channel Manifold
-
8‑Channel Manifold
-
Wash Bottle (2L)
-
Rinse Bottle (2L)
-
Waste Bottle (2L)
-
Power Cable
-
User Manual
FAQ
Q: What is the RT-2600C Microplate Washer?
A: The RT-2600C is a fully automatic, cost‑effective microplate washing system designed for efficient and precise washing of 96‑well plates, 48‑well plates, and strips in ELISA, clinical diagnostics, and research laboratories.
Q: What plate types does the RT-2600C support?
A: The RT-2600C supports flat‑bottom, U‑bottom, and V‑bottom 96‑well plates, 48‑well plates, and strip formats.
Q: What manifold options are available?
A: The RT-2600C features interchangeable 8‑channel and 12‑channel manifolds, allowing flexibility for different plate formats.
Q: What is the residual volume?
A: The RT-2600C achieves an ultra‑low residual volume of less than 1 µL per well with dual‑aspiration mode, minimizing background noise and cross‑contamination.
Q: What is the washing volume range?
A: The washing volume is 50–3000 µL per well for the 8‑way manifold and 50–2000 µL per well for the 12‑way manifold.
Q: How many wash cycles can be programmed?
A: The RT-2600C supports up to 99 programmable wash cycles.
Q: How many programs can the RT-2600C store?
A: The RT-2600C can store up to 50 wash protocols.
Q: What safety features does the RT-2600C have?
A: The RT-2600C includes liquid level detection and alert function, automatic monitoring for vacuum and pressure, and an automatic rinse cycle.
Q: What are the dimensions and weight of the RT-2600C?
A: The RT-2600C measures 390 × 330 × 177 mm and weighs 9 kg.
Q: Can the RT-2600C be connected to other instruments?
A: Yes. The RT-2600C is equipped with an RS‑232 serial port. When connected to the RT-2100C microplate reader, it enables remote fault diagnosis and system upgrades.
