RT-6500 Microplate Reader | UV ELISA Reader with Temperature Control & Incubation

UV-capable microplate ELISA reader with temperature control, incubation function, and 3 test methods. 5 filter wavelengths including 340nm. Ideal for clinical diagnostics, research, and food safety.

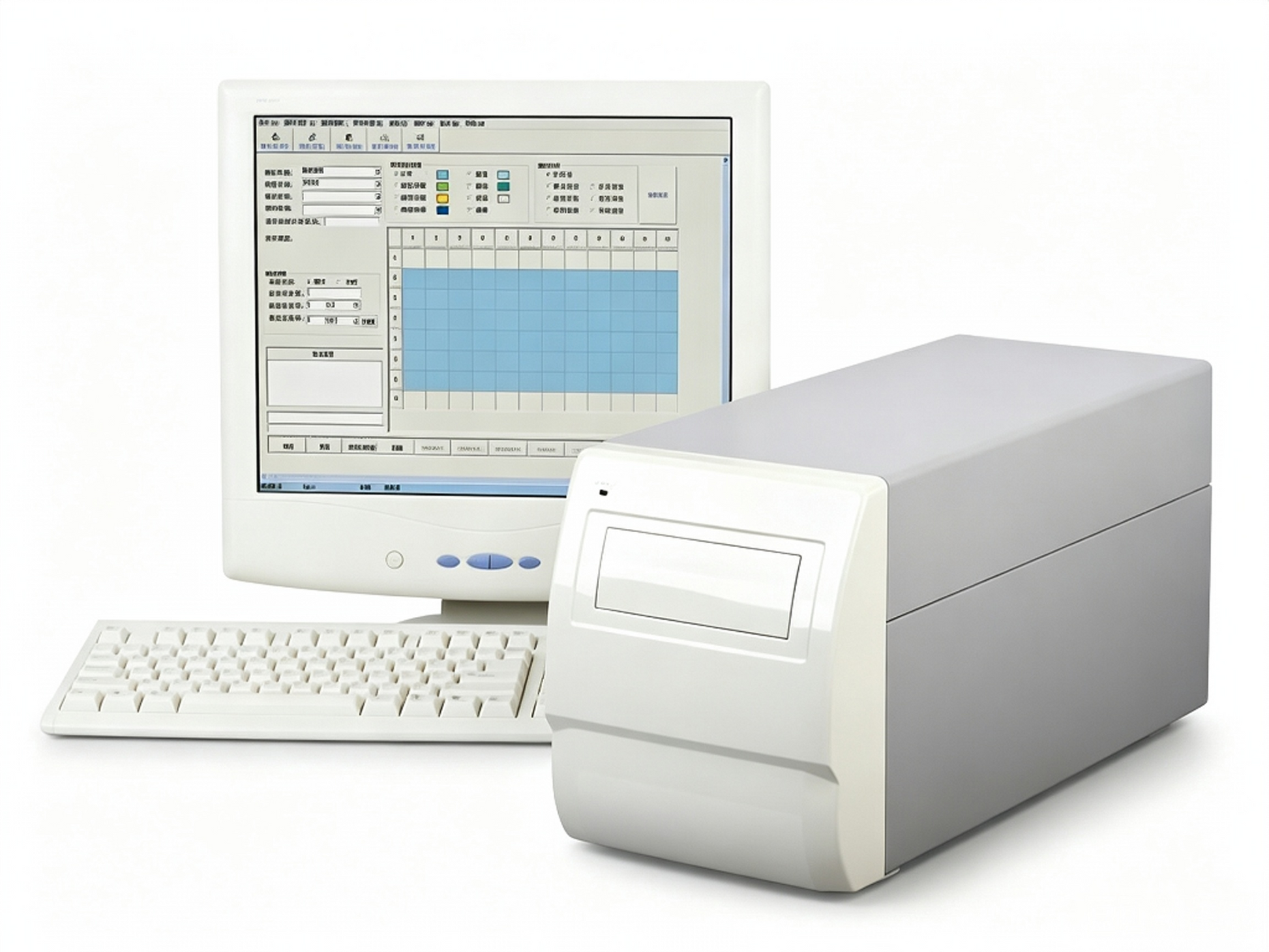

The Global Healthcare Medical RT-6500 Microplate Reader is a versatile, PC‑controlled ELISA reader engineered for accurate and efficient microplate analysis in clinical, research, and industrial laboratories. Featuring UV wavelength capability (including 340nm), temperature control with programmable incubation time, and support for three test methods—end point, fixed time, and kinetic—this microplate reader delivers the flexibility and precision required for a wide range of immunoassay applications.

Designed with user‑friendly Windows‑based software for simple operation, the RT‑6500 offers fast and precise test results. The system includes 5 filter wavelengths (340, 405, 450, 492, 630nm) with a bandwidth of <8nm and an absorbance range of 0.000‑4.000 Abs—ensuring reliable performance across diverse assay requirements. Whether you're performing ELISA assays in clinical diagnostics, food safety testing, or research laboratories, the RT‑6500 delivers the performance, versatility, and ease of use you need.

This device is intended for professional use in laboratory settings by trained professionals. Not a substitute for professional medical diagnosis.

Key Features

🔬 UV Wavelength Capability

The RT-6500 is available with a UV wavelength, including 340nm, expanding its application range to include assays that require ultraviolet detection. This capability makes it suitable for a broader spectrum of laboratory tests beyond standard visible wavelength ELISA.

🌡️ Temperature Control & Programmable Incubation

The RT-6500 features temperature control with programmable incubation time and adjustable temperature—enabling precise incubation conditions directly on the instrument. This integrated incubation function streamlines workflow by eliminating the need for separate incubators and ensures consistent assay conditions.

📊 Three Test Methods

The RT-6500 supports three test methods to accommodate diverse assay requirements:

🔧 High-Precision Optical System

• Absorbance Range: 0.000‑4.000 Abs

• Resolution: 0.01 Abs (displayed), 0.0001 Abs (calculated)

• Light Source: Halogen Lamp

• Wavelength Accuracy: ±1nm

• Bandwidth: <8nm

• 5 Standard Filters: 340, 405, 450, 492, 630nm

💻 User‑Friendly PC Software

The RT-6500 operates as a compact PC‑controlled system running on Windows‑based software with a user‑friendly interface for simple operation. This design enables comprehensive data management, assay programming, and result analysis through an intuitive computer interface.

📋 Comprehensive Calculation Modes

The RT-6500 supports a full range of calculation modes, including:

• Absorbance

• Cut‑off

• Single‑point calibration

• Broken‑line regression

• Multi‑point percentage

• Linear regression

• Logarithmic curve

• Exponential curve

• Power curve

Specifications

What's Included

• RT-6500 Microplate Reader Main Unit

• 5 Standard Filters (340, 405, 450, 492, 630nm)

• Halogen Lamp

• Windows‑Based Operation Software

• USB/RS‑232 Connection Cable

• Power Cable

• User Manual

Applications

The RT-6500 Microplate Reader is suitable for:

• Clinical Diagnostics – ELISA testing for infectious diseases, hormones, tumor markers, and autoimmune disorders

• Immunology Laboratories – Antibody and antigen detection assays

• Food Safety Testing – Allergen detection, foodborne pathogen screening

• Veterinary Diagnostics – Animal disease testing and veterinary ELISA assays

• Pharmaceutical Research – Drug development and quality control assays

• Life Science Research – Protein quantification, cytokine analysis, and molecular biology applications

• Public Health Laboratories – Disease surveillance and screening programs

• Research Laboratories & Blood Banks – UV‑capable detection for specialized assays

Why Choose the RT-6500?

FAQ

Q: What is the RT-6500 Microplate Reader?

A: The RT-6500 is a versatile, PC‑controlled ELISA reader featuring UV wavelength capability (including 340nm), temperature control with programmable incubation, and three test methods for clinical, research, and industrial laboratories.

Q: Does the RT-6500 have UV capability?

A: Yes. The RT-6500 is available with a UV wavelength, including 340nm, expanding its application range to include assays that require ultraviolet detection.

Q: Does the RT-6500 have temperature control?

A: Yes. The RT-6500 features temperature control with programmable incubation time and adjustable temperature for precise assay conditions.

Q: What test methods does the RT-6500 support?

A: The RT-6500 supports three test methods: End Point, Fixed Time, and Kinetic.

Q: What filters does the RT-6500 come with?

A: The RT-6500 includes 5 standard filters: 340, 405, 450, 492, and 630nm

Q: What is the absorbance range and resolution?

A: The RT-6500 offers an absorbance range of 0.000‑4.000 Abs with a resolution of 0.01 Abs (displayed) and 0.0001 Abs (calculated).

Q: What calculation modes are available?

A: The RT-6500 supports absorbance, cut‑off, single‑point calibration, broken‑line regression, multi‑point percentage, linear regression, logarithmic curve, exponential curve, and power curve calculation modes.

Q: How is the RT-6500 operated?

A: The RT-6500 is a PC‑controlled system running on Windows‑based software with a user‑friendly interface for simple operation.

Q: What applications is the RT-6500 suitable for?

A: The RT-6500 is suitable for clinical diagnostics, immunology, food safety testing, veterinary diagnostics, pharmaceutical research, life science research, and public health laboratories.
