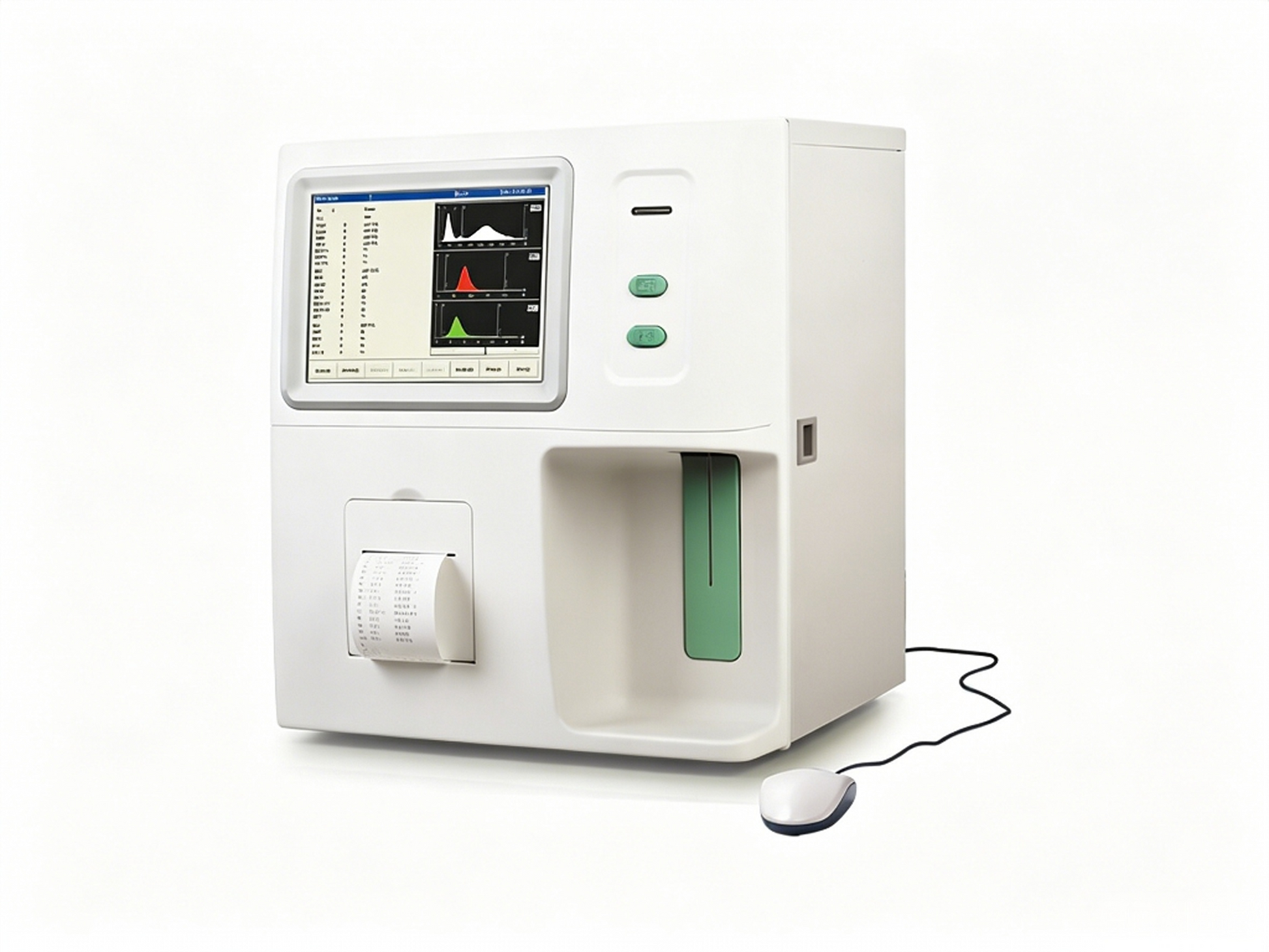

RT-7200 Hematology Analyzer | 3‑Part Diff CBC Machine with 23 Parameters
RT-7200 Hematology Analyzer | 3‑Part Diff CBC Machine with 23 Parameters
Automatic 3‑part differential hematology analyzer with 23 parameters, 3 histograms, 3 counting modes, and 30,000‑result storage. Ideal for hospitals, clinics, and clinical laboratories.
The Global Healthcare Medical RT-7200 Hematology Analyzer is a fully automatic 3‑part differential hematology system engineered for reliable and efficient complete blood count (CBC) analysis in clinical laboratories, hospitals, and clinics. Featuring a single counting channel, 23 reportable parameters including 3 histograms, and three versatile counting modes, the RT‑7200 delivers consistent, high‑quality results with a throughput of over 30 tests per hour.
Designed for ease of use and maximum efficiency, the RT‑7200 features a large 8‑inch color LCD display with mouse and keyboard support, an internal or external printer option, and an external AC adapter that reduces electrical noise for enhanced accuracy. With up to 30,000 sample results storage capacity and multi‑format output of test results, the RT‑7200 is the ideal choice for laboratories seeking a reliable, cost‑effective hematology solution.
This device is intended for professional use in clinical laboratory settings by trained professionals. Not a substitute for professional medical diagnosis.
Key Features
📊 23 Parameters & 3 Histograms
The analyzer provides a 3‑part white blood cell differential, delivering 23 parameters including three histograms (WBC, RBC, PLT) for comprehensive hematological assessment. The 23 parameters include:
| Parameter Category | Specific Parameters |
|---|---|
| White Blood Cells | WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA% |
| Red Blood Cells | RBC, HGB, HCT, MCV, MCH, MCHC, RDW‑CV, RDW‑SD |
| Platelets | PLT, P‑LCR, MPV, PDW, PCT |
Plus 3 histograms: WBC, RBC, PLT
🧪 Three Versatile Counting Modes
The RT‑7200 supports three counting modes to accommodate various sample types:
| Mode | Sample Type | Volume Required |
|---|---|---|
| Whole Blood | Venous whole blood | 9.8 µL |
| Pre‑diluted Blood | Pre‑diluted peripheral blood | 20 µL |
| Peripheral Blood | Anti‑coagulated peripheral blood | 9.8 µL |
🖥️ Large 8‑inch Color LCD Display
The RT‑7200 features a large 8‑inch color LCD display that provides a clear, intuitive interface for easy operation. The system supports mouse and keyboard input with multiple Chinese input methods, making data entry simple and efficient.
📋 Extensive Data Storage & Multi‑Format Output
The analyzer can store up to 30,000 sample results (including histograms) and supports multi‑format output of test results for flexible reporting.
🛡️ Advanced Blockage Removal & Easy Maintenance
The RT‑7200 includes back flush, soaking, and high‑volt burning to remove blockages in the reading chamber, ensuring consistent performance and minimizing downtime. The 3‑doors open design allows for easy maintenance and service access.
🔌 External Power Supply for Accuracy
An external power supply adaptor reduces electrical noises, enhancing measurement accuracy and reliability.
📊 Comprehensive Quality Control
The RT‑7200 features L‑J, X‑B, and X‑R quality control charts, supporting both manual and automatic calibration.
🌍 Multi‑Language Software
Multi‑language software is supported, making the RT‑7200 suitable for international laboratory settings.
Specifications
Applications
The RT‑7200 Hematology Analyzer is suitable for:
-
Hospitals & Medical Centers – Routine CBC screening and diagnostic testing
-
Clinical Laboratories – Hematology analysis with 23 parameters
-
Private Clinics – Point‑of‑care complete blood counts
-
Primary Care Facilities – Efficient patient testing
-
Outpatient Clinics – Rapid turnaround testing
Why Choose the RT‑7200?
What's Included
-
RT‑7200 Hematology Analyzer Main Unit
-
8‑inch Color LCD Display
-
Mouse and Keyboard
-
Internal Printer (or external printer option)
-
External AC Power Adapter
-
Power Cable
-
User Manual
-
Installation and Training Support
FAQ
Q: What is the RT‑7200 Hematology Analyzer?
A: The RT‑7200 is a fully automatic 3‑part differential hematology analyzer designed for efficient and reliable complete blood count (CBC) analysis in clinical laboratories, hospitals, and clinics.
Q: How many parameters does the RT‑7200 report?
A: The RT‑7200 provides 23 parameters including 3 histograms (WBC, RBC, PLT) for comprehensive hematological assessment.
Q: What counting modes does the RT‑7200 support?
A: The RT‑7200 supports three counting modes: whole blood, pre‑diluted blood, and peripheral blood.
Q: What is the sample volume required?
A: The RT‑7200 requires 9.8 µL for whole blood samples and 20 µL for pre‑diluted samples.
Q: How much data can the RT‑7200 store?
A: The RT‑7200 can store up to 30,000 sample results including histograms.
Q: Does the RT‑7200 have a built‑in printer?
A: Yes. The RT‑7200 includes an internal printer, with an external printer option also available.
Q: How does the RT‑7200 maintain accuracy?
A: The RT‑7200 uses an external AC adapter to reduce electrical noises, enhancing measurement accuracy. It also includes back flush, soaking, and high‑volt burning to remove blockages in the reading chamber.
Q: What quality control features are available?
A: The RT‑7200 features L‑J, X‑B, and X‑R quality control charts, supporting both manual and automatic calibration.
Q: What interfaces does the RT‑7200 support?
A: The RT‑7200 supports RS‑232, VGA, Parallel, USB, and Ethernet interfaces.
Q: What certifications does the RT‑7200 have?
A: The RT‑7200 is CE and ISO13485 certified.
