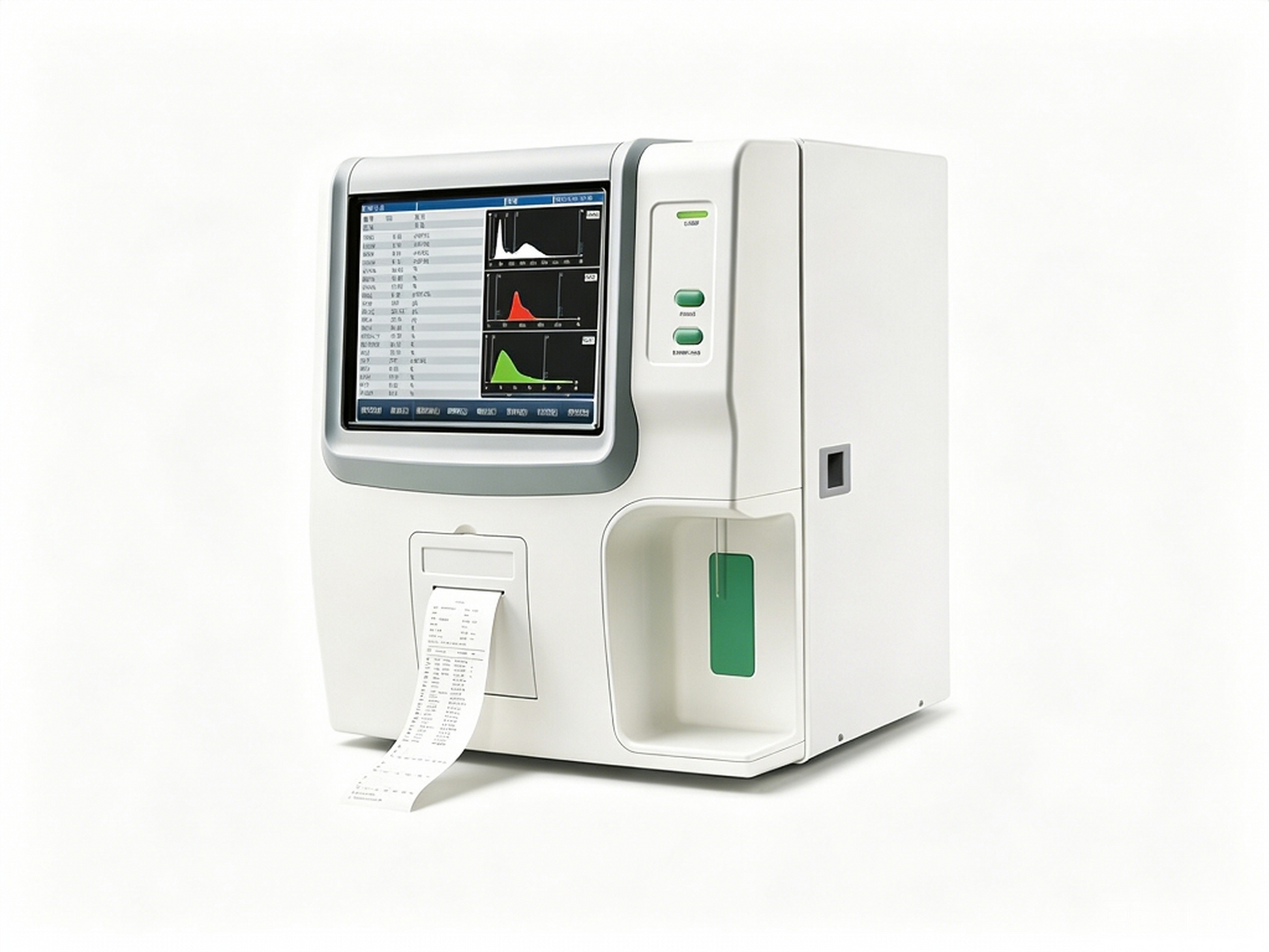

RT-7600S Hematology Analyzer | 3-Part Diff CBC Machine with 23 Parameters

The Global Healthcare Medical RT-7600S Hematology Analyzer is a fully automatic 3‑part differential hematology system engineered for reliable and efficient complete blood count (CBC) analysis in clinical laboratories, hospitals, and clinics. Featuring two counting channels, 23 reportable parameters including 3 histograms, and three versatile counting modes, the RT‑7600S delivers consistent, high‑quality results with a throughput of up to 60 tests per hour.

Designed for ease of use and maximum efficiency, the RT‑7600S features a large color LCD display with mouse and keyboard support, a built‑in thermal printer (with external printer option), and an external AC adapter that reduces electrical noise for enhanced accuracy. With up to 35,000 sample results storage capacity and multi‑format output of test results, the RT‑7600S is the ideal choice for laboratories seeking a reliable, cost‑effective hematology solution.

This device is intended for professional use in clinical laboratory settings by trained professionals. Not a substitute for professional medical diagnosis.

Key Features

⚡ High‑Throughput Performance – Up to 60 T/H

The RT‑7600S delivers a throughput of up to 60 tests per hour, ensuring efficient processing of routine CBCs in busy laboratory environments. This high‑speed performance helps reduce turnaround times and improve patient care without compromising result quality.

📊 23 Parameters & 3 Histograms

The analyzer provides a 3‑part white blood cell differential, delivering 23 parameters including three histograms (WBC, RBC, PLT) for comprehensive hematological assessment. This includes essential CBC parameters such as WBC, RBC, hemoglobin, hematocrit, platelet count, and the three‑part differential (lymphocytes, monocytes, and granulocytes).

🧪 Three Versatile Counting Modes

The RT‑7600S supports three counting modes to accommodate various sample types:

🖥️ Large Color LCD Display with Peripheral Support

The RT‑7600S features a large color LCD display that provides a clear, intuitive interface for easy operation. The system supports mouse, keyboard, and printer with USB port, making data entry and result output simple and efficient.

🖨️ Built‑in Thermal Printer

The RT‑7600S includes a built‑in thermal printer for immediate, on‑the‑spot printing of test results, with an external printer option available.

📋 Extensive Data Storage & Multi‑Format Output

The analyzer can store up to 35,000 sample results (including histograms) and supports multi‑format output of test results for flexible reporting.

🛡️ Advanced Blockage Removal & Maintenance

The RT‑7600S includes back flush, soaking, and high‑volt burning to remove blockages in the reading chamber, ensuring consistent performance and minimizing downtime. The 3‑doors open design allows for easy maintenance and service access.

🔌 External Power Supply for Accuracy

An external power supply adaptor reduces electrical noises, enhancing measurement accuracy and reliability.

🌍 Multi‑Language Software

Multi‑language software is available on request, making the RT‑7600S suitable for international laboratory settings.

📋 Three Calibration Sets

The RT‑7600S features three sets of calibration coefficients for different sample types: anti‑coagulating whole blood, anti‑coagulating peripheral blood, and pre‑diluted peripheral blood.

🐾 Veterinary Applications

The RT‑7600S is also available for veterinary applications, supporting animal blood analysis.

Specifications

What's Included

• RT‑7600S Hematology Analyzer Main Unit

• Large Color LCD Display

• Built‑in Thermal Printer

• Mouse and Keyboard (USB)

• External AC Power Adapter

• Power Cable

• User Manual

• Installation and Training Support

Applications

The RT‑7600S Hematology Analyzer is suitable for:

• Hospitals & Medical Centers – Routine CBC screening and diagnostic testing

• Clinical Laboratories – High‑volume hematology analysis

• Private Clinics – Point‑of‑care complete blood counts

• Primary Care Facilities – Efficient patient testing

• Outpatient Clinics – Rapid turnaround testing

• Veterinary Clinics – Animal blood analysis (veterinary version available)

Why Choose the RT‑7600S?



FAQ

Q: What is the RT‑7600S Hematology Analyzer?

A: The RT‑7600S is a fully automatic 3‑part differential hematology analyzer designed for efficient and reliable complete blood count (CBC) analysis in clinical laboratories, hospitals, and clinics, with a throughput of up to 60 tests per hour.

Q: How many parameters does the RT‑7600S report?

A: The RT‑7600S provides 23 parameters including 3 histograms (WBC, RBC, PLT) for comprehensive hematological assessment.

Q: What counting modes does the RT‑7600S support?

A: The RT‑7600S supports three counting modes: whole blood, pre‑diluted blood, and peripheral blood.

Q: What is the sample volume required?

A: The RT‑7600S requires 9.8µL for whole blood samples and 20µL for pre‑diluted samples.

Q: How much data can the RT‑7600S store?

A: The RT‑7600S can store up to 35,000 sample results including histograms.

Q: Does the RT‑7600S have a built‑in printer?

A: Yes. The RT‑7600S includes a built‑in thermal printer, with an external printer option also available.

Q: How does the RT‑7600S maintain accuracy?

A: The RT‑7600S uses an external AC adapter to reduce electrical noises, enhancing measurement accuracy. It also includes back flush, soaking, and high‑volt burning to remove blockages in the reading chamber.

Q: Is there a veterinary version available?

A: Yes. The RT‑7600S is also available for veterinary applications.

Q: What calibrations does the RT‑7600S support?

A: The RT‑7600S features three sets of calibration coefficients: anti‑coagulating whole blood, anti‑coagulating peripheral blood, and pre‑diluted peripheral blood.

Q: What certifications does the RT‑7600S have?

A: The RT‑7600S is CE and ISO13485 certified.
