RT-7600Vet Veterinary Hematology Analyzer | 3‑Part Diff CBC Machine for Multi‑Species
RT-7600Vet Veterinary Hematology Analyzer | 3‑Part Diff CBC Machine for Multi‑Species
Fully automated 3‑part differential veterinary hematology analyzer with 20 parameters, 60 T/H throughput, 7‑species presets, and 50,000‑result storage. Ideal for mixed‑animal practices and veterinary diagnostic labs.

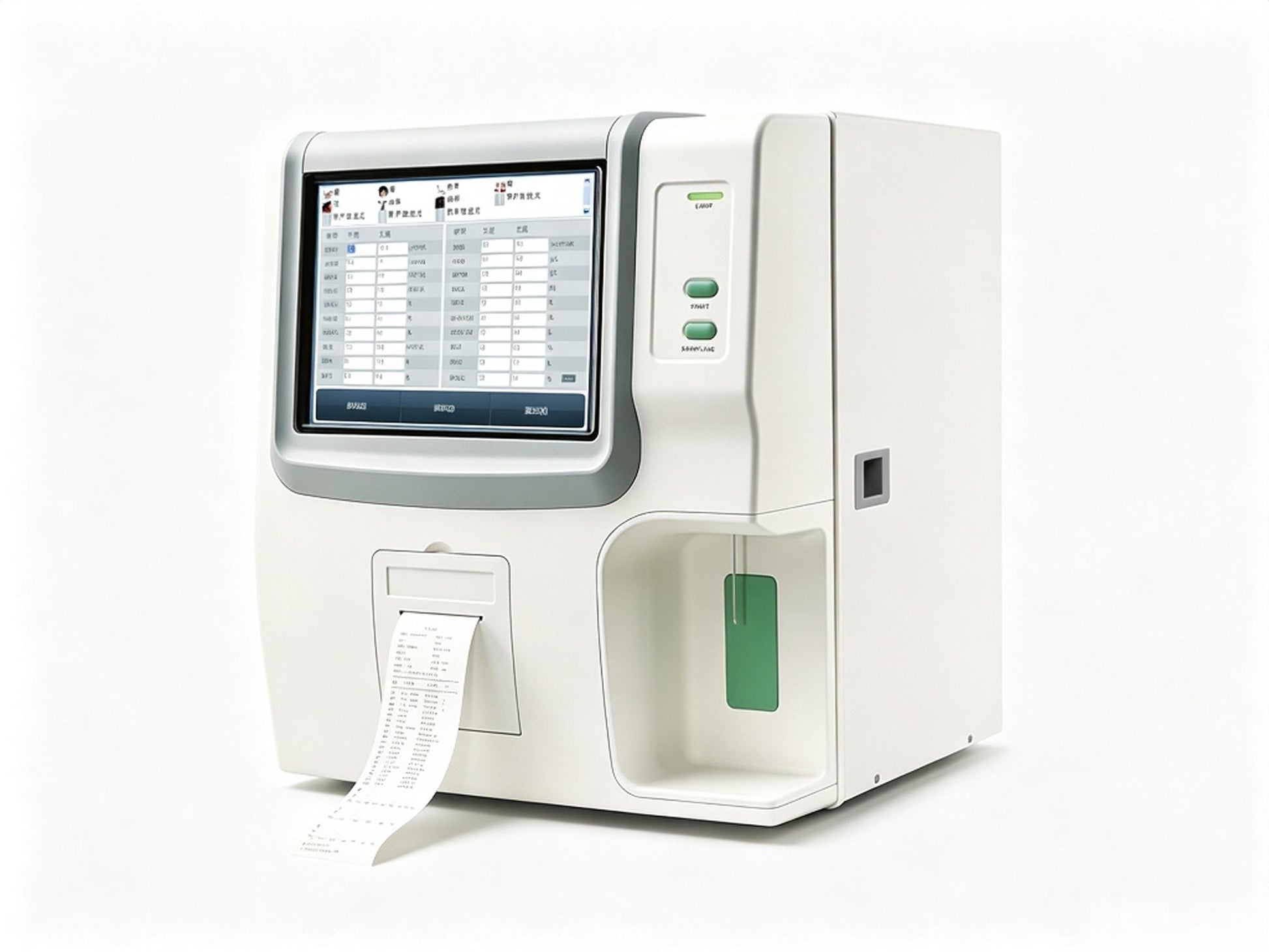

The Global Healthcare Medical RT-7600Vet 3‑Part Veterinary Hematology Analyzer is a fully automated, multi‑species hematology system designed specifically for the demanding needs of veterinary clinics, animal hospitals, and diagnostic laboratories. This analyzer delivers reliable, comprehensive complete blood count (CBC) results with a throughput of 60 samples per hour, enabling efficient processing of routine and STAT workloads in busy clinical environments.
Engineered with advanced electrical impedance technology for counting WBC, RBC, and PLT, the RT-7600Vet provides a 3‑part white blood cell differential with 20 parameters and 3 histograms. With 7 pre‑determined animal settings (cat, rabbit, horse, dog, pig, monkey, goat) and 4 user‑defined settings on request, the analyzer supports a wide range of species—making it the ideal choice for mixed‑animal practices.
This device is intended for professional use in veterinary clinical settings by trained professionals. Not a substitute for professional veterinary diagnosis.
Key Features
🐾 Multi‑Species Compatibility with 7+ Animal Settings
The RT-7600Vet is designed for veterinary applications with 7 pre‑determined animal settings (cat, rabbit, horse, dog, pig, monkey, goat) and 4 user‑defined settings on request. This flexibility makes it ideal for mixed‑animal practices treating dogs, cats, horses, cattle, sheep, pigs, and more.
📊 20 Parameters & 3 Histograms
The analyzer provides a comprehensive 3‑part white blood cell differential, delivering 20 parameters including:
| Parameter Category | Specific Parameters |
|---|---|
| White Blood Cells | WBC, LYM#, LYM%, MID#, MID%, GRAN#, GRAN% |
| Red Blood Cells | RBC, HGB, HCT, MCV, MCH, MCHC, RDW‑CV, RDW‑SD |
| Platelets | PLT, MPV, PDW, PCT, P‑LCR |
Plus 3 histograms: WBC, RBC, PLT
⚡ High‑Throughput Performance – 60 Samples/Hour
With a throughput of 60 samples per hour, the RT-7600Vet ensures efficient processing of routine CBCs in busy veterinary environments. Analysis time is just 60 seconds per sample.
🩸 Low Sample Volume – 9.8 µL
The RT-7600Vet requires only 9.8 µL for whole blood samples and 20 µL for pre‑diluted samples—ideal for small animal patients where sample volume is limited.
🖥️ 10.4‑Inch TFT Touch Screen with Built‑In Printer
The analyzer features a 10.4‑inch TFT color LCD touch screen for intuitive, user‑friendly operation. A built‑in thermal printer enables immediate, on‑the‑spot printing of test results, with external printer options also available.
💾 50,000‑Result Storage
The RT-7600Vet can store up to 50,000 sample results including histograms, enabling comprehensive patient data management and long‑term trend analysis.
⚙️ Low Reagent Consumption & Cost‑Effective Operation
With micro‑volume sampling and low reagent consumption, the RT-7600Vet is designed for low‑cost operation. The intelligent reagent management system ensures efficient use of consumables.
🧪 Species‑Specific Reference Ranges
The analyzer provides species‑specific reference ranges to ensure accurate interpretation of results across different animal species.
🌍 Multi‑Language Support
The RT-7600Vet supports multiple languages including English, Chinese, Spanish, French, Russian, Kazakh, Portuguese, Turkish, Italian, and Czech, making it suitable for international veterinary practices.
🔌 Flexible Connectivity
Specifications
| Feature | Specification |
|---|---|
| Product Type | 3‑Part Differential Veterinary Hematology Analyzer |
| Model | RT‑7600Vet |
| Throughput | 60 samples/hour |
| Analysis Time | 60 seconds |
| Reportable Parameters | 20 parameters + 3 histograms |
| Differential | 3‑part (lymphocytes, mid‑range cells, granulocytes) |
| Technology | Electrical impedance + colorimetry |
| Sample Volume (Whole Blood) | 9.8 µL |
| Sample Volume (Pre‑diluted) | 20 µL |
| Display | 10.4‑inch TFT Color Touch Screen |
| Data Storage | 50,000 sample results including histograms |
| Printer | Built‑in thermal printer (external optional) |
| Animal Settings | 7 pre‑determined + 4 user‑defined |
| Languages | 10+ languages |
| Connectivity | LAN (RS‑232), 3 x USB |
| Power Supply | 100‑240V AC |
| Certifications | CE |
Applications
The RT-7600Vet Veterinary Hematology Analyzer is suitable for:
-
Veterinary Clinics & Animal Hospitals – Routine CBC testing and diagnostic screening
-
Mixed‑Animal Practices – Versatile testing across multiple species with 7+ animal settings
-
Veterinary Reference Laboratories – High‑volume diagnostic testing with 60 T/H throughput
-
Emergency & Critical Care – Rapid 60‑second CBC results
-
Research Institutions – Veterinary research and clinical studies
-
Species Supported – Dogs, cats, horses, cattle, sheep, pigs, rabbits, goats, monkeys, and more
-
Sample Types – Whole blood, pre‑diluted blood
Why Choose the RT-7600Vet?
| Standard Veterinary Analyzers | Global Healthcare Medical RT-7600Vet |
|---|---|
| Limited species support | 7 pre‑set + 4 user‑definable animal settings |
| Higher sample volume | 9.8 µL – low sample volume |
| Basic display | 10.4‑inch TFT touch screen – intuitive operation |
| No built‑in printer | Built‑in thermal printer – instant results |
| Limited storage | 50,000‑result storage – comprehensive data management |
| Higher reagent consumption | Low reagent consumption – cost‑effective operation |
| Single language | 10‑language support – international usability |
What's Included
-
RT-7600Vet Veterinary Hematology Analyzer Main Unit
-
10.4‑inch TFT Touch Screen Display
-
Built‑in Thermal Printer
-
3‑Part Differential Analysis System
-
Power Cable
-
User Manual
-
Installation and Training Support
FAQ
Q: What is the RT-7600Vet Veterinary Hematology Analyzer?
A: The RT-7600Vet is a fully automated 3‑part differential hematology analyzer designed specifically for veterinary applications, delivering 20 parameters, 3 histograms, and a throughput of 60 samples per hour for multi‑species CBC analysis.
Q: How many animal species does the RT-7600Vet support?
A: The RT-7600Vet comes with 7 pre‑determined animal settings (cat, rabbit, horse, dog, pig, monkey, goat) and supports 4 user‑defined settings on request.
Q: What is the sample volume required?
A: The RT-7600Vet requires only 9.8 µL for whole blood samples and 20 µL for pre‑diluted samples.
Q: What is the throughput of the RT-7600Vet?
A: The RT-7600Vet delivers a throughput of 60 samples per hour with a 60‑second analysis time.
Q: How many parameters does the RT-7600Vet report?
A: The RT-7600Vet provides 20 parameters including a 3‑part white blood cell differential plus 3 histograms (WBC, RBC, PLT).
Q: Does the RT-7600Vet have a built‑in printer?
A: Yes. The RT-7600Vet includes a built‑in thermal printer, with external printer options also available.
Q: How much data can the RT-7600Vet store?
A: The RT-7600Vet can store up to 50,000 sample results including histograms.
Q: What languages does the RT-7600Vet support?
A: The RT-7600Vet supports 10+ languages including English, Chinese, Spanish, French, Russian, Kazakh, Portuguese, Turkish, Italian, and Czech.
Q: What technology does the RT-7600Vet use?
A: The RT-7600Vet uses electrical impedance for counting WBC, RBC, and PLT, and colorimetry for hemoglobin measurement.
Q: What species are supported by the RT-7600Vet?
A: The RT-7600Vet supports a wide range of species including dogs, cats, horses, cattle, sheep, pigs, rabbits, goats, monkeys, and more.
