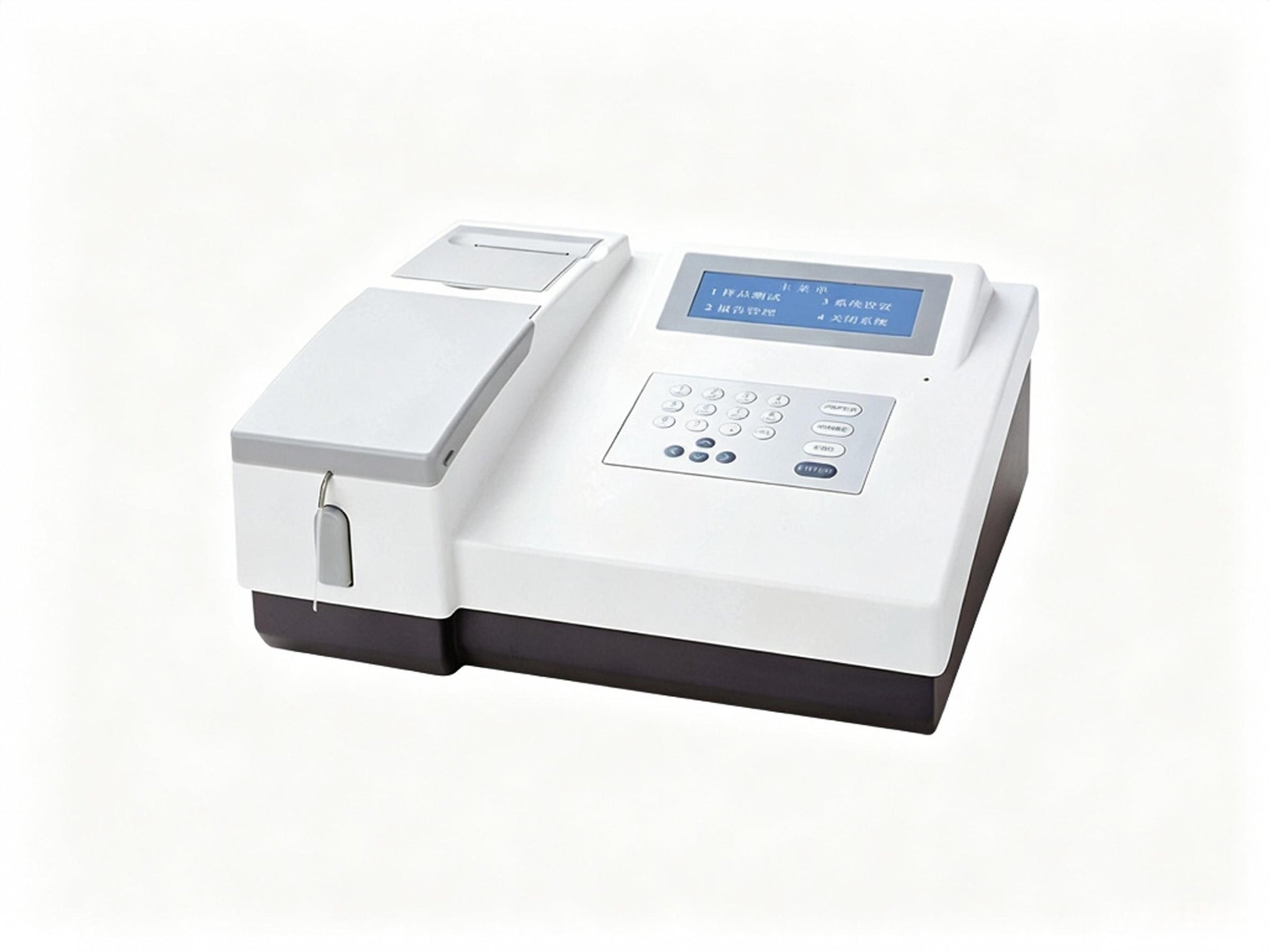

RT-9200 Chemistry Analyzer | Semi‑Auto Biochemistry System with Real‑Time Curve Monitoring

Semi‑automatic clinical chemistry analyzer with large LCD display, real‑time curve monitoring, power‑off protection, and open reagent system. Ideal for small to medium clinical and veterinary labs.

The Global Healthcare Medical RT-9200 Semi‑Automatic Chemistry Analyzer is a compact, versatile biochemistry system designed for reliable photometric testing in small to medium‑sized clinical and veterinary laboratories. Featuring a large LCD display, real‑time reaction curve monitoring, and intuitive Windows‑based operation with mouse or keypad control, this analyzer delivers accurate results with exceptional user convenience.

Built with a robust halogen lamp light source and advanced optical system, the RT‑9200 supports single‑wavelength and dual‑wavelength measurement modes, with a reagent open system that supports both flow cell and cuvette modes for maximum flexibility. Whether you are performing routine biochemistry panels in a clinical laboratory or veterinary diagnostics, the RT‑9200 delivers the reliability, flexibility, and ease of use you need.

This device is intended for professional use in clinical and veterinary laboratory settings by trained professionals. Not a substitute for professional medical diagnosis.

Key Features

🖥️ Large LCD Display & Windows Operation

The RT‑9200 features a large LCD display with a user‑friendly Windows interface and full Chinese operating system support. Operation can be performed via mouse or keypad for fast, convenient information input. The ergonomic design makes maintenance easier and operation simpler.

📈 Real‑Time Curve Monitoring

The analyzer displays real‑time reaction curves during each test, allowing operators to monitor the entire testing process. This feature provides full visibility into assay performance and helps ensure result quality.

💾 Automatic Data Saving & Power‑Off Protection

The RT‑9200 features automatic data saving and power‑off protection—data is automatically preserved even during unexpected power interruptions. This ensures test results are never lost and provides peace of mind in busy laboratory environments.

🔬 High‑Precision Optical System

• Light Source: Quartz halogen lamp (12V/20W)

• Wavelength Range: 330–800 nm

• Standard Filters: 340, 405, 492, 510, 546, 578, 630 nm with one spare slot

• Optional Filters: 3 additional filters available

• Bandwidth: ≤8 nm

• Absorbance Range: –0.500 to 3.500 Abs

• Resolution: 0.001 Abs (displayed), 0.0001 Abs (calculated)

• Wavelength Accuracy: ±2 nm

• Cross‑Contamination Rate: ≤1%

🔄 Multiple Testing Modes

The RT‑9200 supports single‑wavelength and dual‑wavelength measurement modes, providing flexibility for a wide range of assays and applications.

🧪 Open Reagent System

The RT‑9200 features a reagent open system that supports flow cell and cuvette modes. A closed system is available on request. This flexibility allows laboratories to choose from a wide range of reagent brands.

🔧 Dual Measurement Modes

The analyzer supports both flow cell and cuvette measurement modes, accommodating different sample types and testing requirements.

🏥 Wide Application Range

The RT‑9200 is suitable for clinical testing of routine biochemical indicators in human blood and other body fluids. It is also available for veterinary applications.

🔌 Flexible Connectivity

The RT‑9200 supports connectivity for data management and reporting, with RS‑232 interface and optional built‑in printer.

Specifications

What's Included

• RT‑9200 Semi‑Automatic Chemistry Analyzer Main Unit

• Large LCD Display

• Quartz Halogen Lamp (12V/20W)

• Standard Filter Set (340, 405, 492, 510, 546, 578, 630 nm)

• Windows‑Based Operation Software

• Mouse

• Power Cable

• User Manual

• Installation and Training Support

Applications

The RT‑9200 Semi‑Automatic Chemistry Analyzer is suitable for:

• Clinical Laboratories – Routine biochemistry testing for liver function, kidney function, blood glucose, lipids, and enzymes

• Hospitals – Comprehensive patient diagnostics across all departments

• Clinics – Point‑of‑care biochemistry analysis

• Veterinary Clinics – Animal blood chemistry testing

• Research Institutions – Biochemical research and assay development

• Public Health Laboratories – Screening and surveillance programs

• Sample Types – Serum, plasma, urine, cerebrospinal fluid, and other body fluids

Why Choose the RT‑9200?

FAQ

Q: What is the RT‑9200 Semi‑Automatic Chemistry Analyzer?

A: The RT‑9200 is a compact, semi‑automatic biochemistry analyzer designed for reliable photometric testing in small to medium‑sized clinical and veterinary laboratories, featuring a large LCD display, real‑time curve monitoring, and Windows‑based operation.

Q: What is the wavelength range?

A: The RT‑9200 covers a wavelength range of 330–800 nm with 7 standard filters (340, 405, 492, 510, 546, 578, 630 nm) and 3 optional additional filters.

Q: What is the absorbance range and resolution?

A: The absorbance range is –0.500 to 3.500 Abs with a resolution of 0.001 Abs (displayed) and 0.0001 Abs (calculated).

Q: Does the RT‑9200 have power‑off protection?

A: Yes. The RT‑9200 features automatic data saving and power‑off protection—data is automatically preserved even during unexpected power interruptions.

Q: Does the RT‑9200 display reaction curves?

A: Yes. The analyzer displays real‑time reaction curves during each test, allowing operators to monitor the entire testing process.

Q: Is the RT‑9200 an open reagent system?

A: Yes. The RT‑9200 features a reagent open system that supports flow cell and cuvette modes. A closed system is available on request.

Q: What measurement modes does the RT‑9200 support?

A: The RT‑9200 supports single‑wavelength and dual‑wavelength measurement modes.

Q: What sample types does the RT‑9200 support?

A: The RT‑9200 supports serum, plasma, urine, cerebrospinal fluid, and other body fluid samples for clinical biochemical testing.

Q: What is the cross‑contamination rate?

A: The cross‑contamination rate is ≤1%.

Q: What are the dimensions and weight of the RT‑9200?

A: Please contact us for detailed dimensions and weight specifications.
