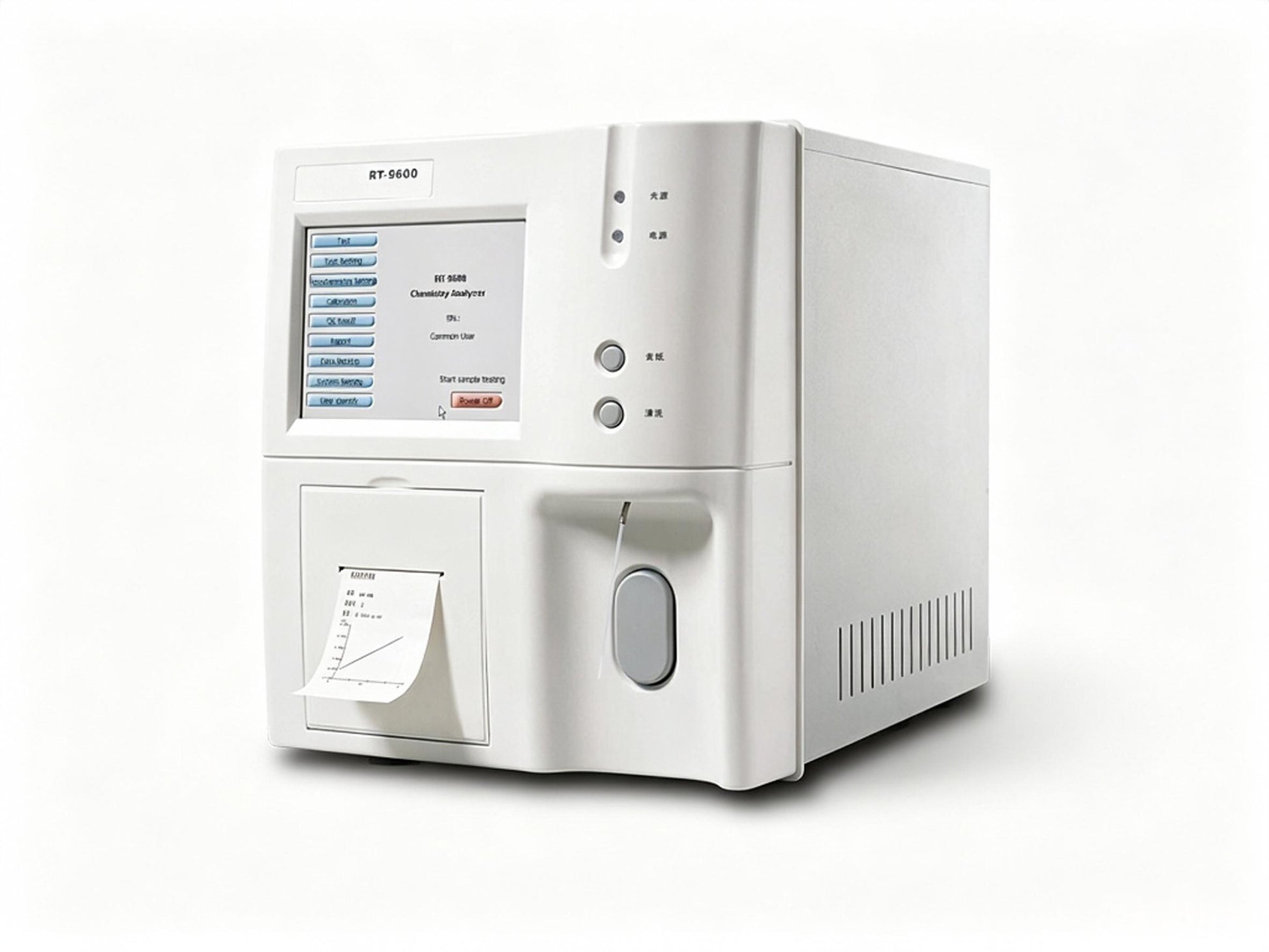

RT-9600 Chemistry Analyzer | Semi‑Auto Biochemistry System with Touch Screen & Grating
RT-9600 Chemistry Analyzer | Semi‑Auto Biochemistry System with Touch Screen & Grating
Semi‑automatic clinical chemistry analyzer with continuously adjustable grating (330‑800nm), touch screen, real‑time curve monitoring, and Westgard QC. Ideal for clinical and veterinary labs.
The Global Healthcare Medical RT-9600 Semi‑Automatic Chemistry Analyzer is a versatile, high‑precision biochemistry system designed for reliable photometric testing in clinical laboratories, hospitals, clinics, and veterinary practices. Featuring a large color LCD touch screen, continuously adjustable grating with 1nm step resolution, and real‑time reaction curve monitoring, this analyzer delivers exceptional accuracy and user convenience.
Built with a fully enclosed grating optical system covering a wavelength range of 330–800 nm with 1nm continuous adjustability, the RT‑9600 supports a comprehensive range of analytical methods including end‑point, two‑point, rate (kinetic), single‑wavelength, dual‑wavelength, reagent blank, sample blank, and immunoturbidimetric assays. Whether you are performing routine biochemistry panels in a clinical laboratory or veterinary diagnostics, the RT‑9600 delivers the reliability, flexibility, and ease of use you need.
This device is intended for professional use in clinical and veterinary laboratory settings by trained professionals. Not a substitute for professional medical diagnosis.
Key Features
🔬 Continuously Adjustable Grating Optical System
The RT-9600 features a fully enclosed grating with wavelength continuously adjustable from 330 to 800 nm in 1nm steps. This advanced optical design ensures stable, reliable performance with high accuracy across a wide range of assays, providing exceptional flexibility for diverse testing menus.
🖥️ Large Color LCD Touch Screen
The analyzer features a large color LCD display with touch screen operation, making assay setup, data entry, and result review simple and intuitive. The user‑friendly interface minimizes training time and reduces the risk of operator error.
📈 Real‑Time Reaction Curve Monitoring
The RT-9600 displays real‑time reaction curves during each test, allowing operators to monitor the entire testing process. This feature provides full visibility into assay performance and helps ensure result quality.
🧪 Comprehensive Analytical Methods
The RT-9600 supports a wide range of analytical methods to accommodate diverse assay requirements:
| Analytical Method | Application |
|---|---|
| End‑Point | Standard equilibrium assays |
| Two‑Point | Rate assays with two measurement points |
| Rate (Kinetic) | Continuous monitoring of reaction rates |
| Single‑Wavelength | Absorbance measurement at one wavelength |
| Dual‑Wavelength | Corrects for sample matrix interferences |
| Reagent Blank | Corrects for reagent absorbance |
| Sample Blank | Corrects for sample matrix effects |
| Immunoturbidimetric | Immunoassay applications |
💾 Large Data Storage & USB Connectivity
The RT-9600 features large‑capacity data storage and a USB port for data transfer, enabling efficient patient data management, long‑term trend analysis, and seamless data export.
📋 Westgard Multi‑Rule Quality Control
The analyzer includes Westgard multi‑rule quality control supporting three levels of QC. This comprehensive QC system ensures result accuracy and consistency, meeting the demands of modern clinical laboratory quality assurance.
🔧 Built‑In Self‑Checking
The RT-9600 features a built‑in self‑checking function to verify system integrity before each use, enhancing reliability and minimizing downtime.
🐾 Veterinary Application Available
The RT‑9600 is suitable for veterinary applications, supporting animal blood chemistry testing in veterinary clinics and laboratories.
Specifications
| Feature | Specification |
|---|---|
| Product Type | Semi‑Automatic Chemistry Analyzer |
| Model | RT‑9600 |
| Optical System | Fully enclosed grating, continuously adjustable |
| Wavelength Range | 330 – 800 nm |
| Wavelength Adjustment | 1nm step resolution |
| Measurement Range | –0.500 to 3.500 Abs |
| Resolution | 0.001 Abs (display), 0.0001 Abs (calculated) |
| Light Source | Halogen lamp, 12V/20W |
| Analytical Methods | End‑point, Two‑point, Rate, Single‑wavelength, Dual‑wavelength, Reagent blank, Sample blank, Immunoturbidimetric |
| Display | Large color LCD with touch screen |
| Data Storage | Large‑capacity memory |
| Data Transfer | USB port |
| Quality Control | Westgard multi‑rule, 3 QC levels |
| Dimensions | 37 × 28.4 × 31.8 cm |
| Net Weight | 11 kg |
| Certifications | CE, SFDA |
What's Included
-
RT-9600 Semi‑Automatic Chemistry Analyzer Main Unit
-
Continuously Adjustable Grating Optical System
-
Large Color LCD Touch Screen
-
Halogen Lamp (12V/20W)
-
USB Data Cable
-
Power Cable
-
User Manual
-
Installation and Training Support
Applications
The RT-9600 Semi‑Automatic Chemistry Analyzer is suitable for:
-
Clinical Laboratories – Routine biochemistry testing for liver function, kidney function, blood glucose, lipids, enzymes, and other analytes
-
Hospitals – Comprehensive patient diagnostics across all departments
-
Clinics – Point‑of‑care biochemistry analysis
-
Veterinary Clinics – Animal blood chemistry testing
-
Research Institutions – Biochemical research and assay development
-
Public Health Laboratories – Screening and surveillance programs
-
Sample Types – Serum, plasma, urine, cerebrospinal fluid, and other body fluids
Why Choose the RT-9600?
| Standard Semi‑Auto Analyzers | Global Healthcare Medical RT-9600 |
|---|---|
| Fixed wavelength filters | Continuously adjustable grating (330‑800nm, 1nm steps) – maximum flexibility |
| Basic display | Large color LCD touch screen – intuitive operation |
| Limited curve monitoring | Real‑time reaction curve display – full process visibility |
| Limited QC | Westgard multi‑rule with 3 QC levels – comprehensive quality control |
| Basic connectivity | USB port – easy data transfer |
| Limited methods | 8 analytical methods – end‑point, rate, dual‑wavelength, immunoturbidimetric, etc. |
| Limited storage | Large‑capacity data storage – extensive patient data management |
FAQ
Q: What is the RT-9600 Semi‑Automatic Chemistry Analyzer?
A: The RT-9600 is a versatile, high‑precision semi‑automatic biochemistry analyzer designed for reliable photometric testing in clinical and veterinary laboratories, featuring a continuously adjustable grating optical system and touch screen operation.
Q: What is the wavelength range and adjustment?
A: The RT-9600 covers a wavelength range of 330–800 nm with 1nm step continuous adjustment, providing exceptional flexibility for diverse assays.
Q: What analytical methods does the RT-9600 support?
A: The RT-9600 supports end‑point, two‑point, rate (kinetic), single‑wavelength, dual‑wavelength, reagent blank, sample blank, and immunoturbidimetric methods.
Q: What is the measurement range and resolution?
A: The measurement range is –0.500 to 3.500 Abs with a resolution of 0.001 Abs (display) and 0.0001 Abs (calculated) .
Q: Does the RT-9600 have a touch screen?
A: Yes. The RT-9600 features a large color LCD display with touch screen operation.
Q: Does the RT-9600 display reaction curves?
A: Yes. The analyzer displays real‑time reaction curves during each test, allowing operators to monitor the entire testing process.
Q: What quality control features are available?
A: The RT-9600 includes Westgard multi‑rule quality control supporting three levels of QC.
Q: Does the RT-9600 have data transfer capabilities?
A: Yes. The RT-9600 features a USB port for data transfer and large‑capacity data storage.
Q: What are the dimensions and weight of the RT-9600?
A: The RT-9600 measures 37 × 28.4 × 31.8 cm and weighs 11 kg.
Q: Is the RT-9600 suitable for veterinary use?
A: Yes. The RT-9600 is suitable for veterinary applications, supporting animal blood chemistry testing in veterinary clinics and laboratories.
Q: What sample types does the RT-9600 support?
A: The RT-9600 supports serum, plasma, urine, cerebrospinal fluid, and other body fluid samples for clinical biochemical testing.
