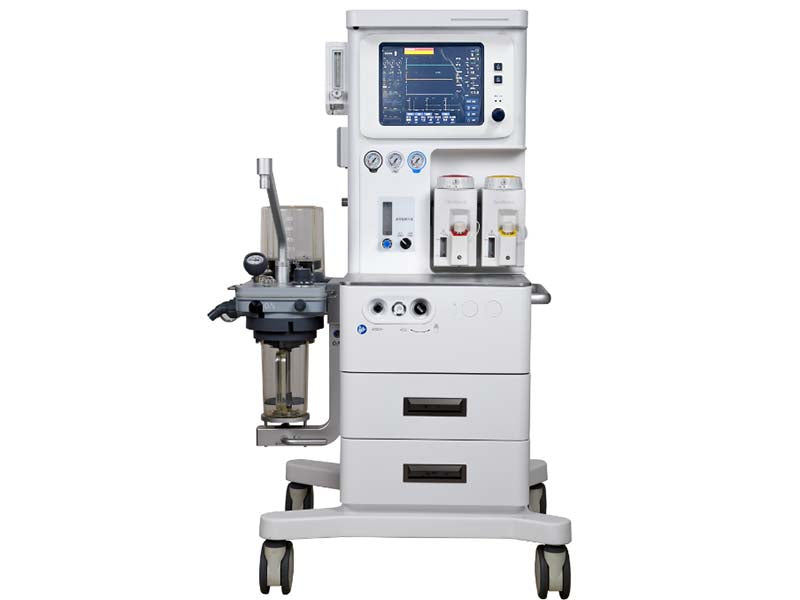

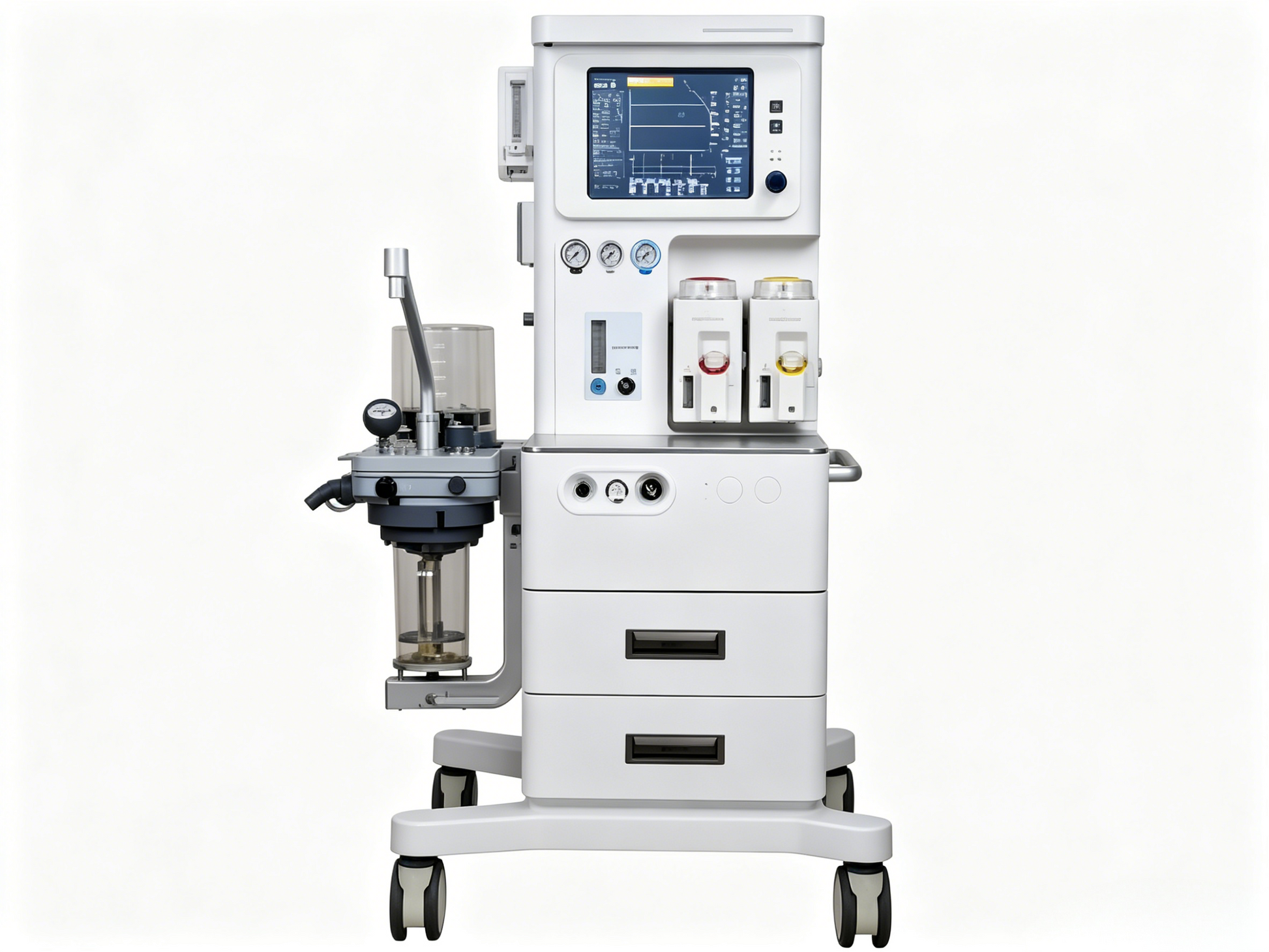

GHM S12A Pro Anesthesia Machine #

Compact Powerhouse with Advanced Ventilation & Standard ETCO₂

The GHM S12A Pro packs premium features into a space‑saving 12‑inch design. With a proportional valve, electronic flow meter, and a full suite of ventilation modes including PRVC and PSV, it delivers exceptional performance for both adult and pediatric patients – all at a highly competitive price.

Key Features

• 12" Colorful LCD Touchscreen
  Crisp, intuitive interface for easy navigation and real‑time waveform viewing.

• Proportional Valve
  Ultra‑precise gas mixing and rapid flow response – reduces waste and improves efficiency.

• Electronic Flow Meter
  Digital accuracy for fresh gas flow measurement, ensuring consistent delivery.

• Advanced Ventilation Modes
  Includes IPPV (VCV), A/C (SIPPV), PCV, PSV, SIMV, SIGH, MANUAL, and PRVC – ideal for complex adult and pediatric respiratory support.

• Standard On‑Screen ETCO₂ Monitoring
  Built‑in capnography for enhanced patient safety – no extra module needed.

• Optional Anesthetic Gas Module
  Available on the monitor for advanced agent monitoring and low‑flow anesthesia.

• Built‑in Battery (≥2 hours)
  Reliable backup for intra‑hospital transport or unexpected power outages.

• Top Light
  Illuminates the breathing circuit and work area for better visibility during setup and procedures.

• 1.5‑Liter CO₂ Absorber
  Adequate capacity for most surgical procedures, balancing compact size and runtime.

• Two Vaporizer Positions
  Standard configuration includes two vaporizers (save $500 if only one is required).

• Oxygen Sensor & ACGO
  Standard O₂ monitoring and an Auxiliary Common Gas Outlet for emergency use.

• Four Castors with Brake
  Easy maneuverability with secure locking.

• Global Power Compatibility
  Operates on 100V–240V, 50/60Hz – ready for worldwide use.

• Full Graphical Display
  View pressure‑time, flow‑time, pressure‑volume loop, volume‑time, and ETCO₂‑time curves for complete respiratory mechanics analysis.

• Wide Adjustable Parameters
  Frequency (1‑100 bpm), tidal volume (0‑1500 ml), PEEP (0‑30 cmH₂O), pressure control (5‑60 cmH₂O), inspiratory ratio (4:1‑1:8 adult / 2:1‑1:8 pediatric), trigger sensitivity, sigh, apnea ventilation, and more.

Why Choose the GHM S12A Pro?

• Premium features at a mid‑range price – EXW just $10,399 (with two vaporizers).

• Standard ETCO₂ – No extra cost for capnography.

• PRVC + PSV – Advanced modes typically found on much more expensive machines.

• Compact footprint – Perfect for ORs with limited space.

• One‑year free warranty + lifetime maintenance – Long‑term support.

• MOQ 1 unit – Ideal for single‑unit trials or expanding your fleet.
