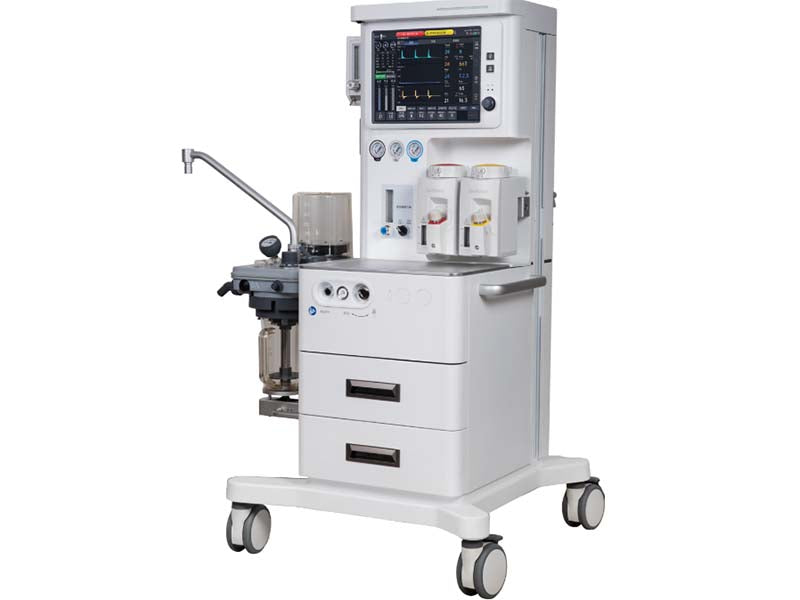

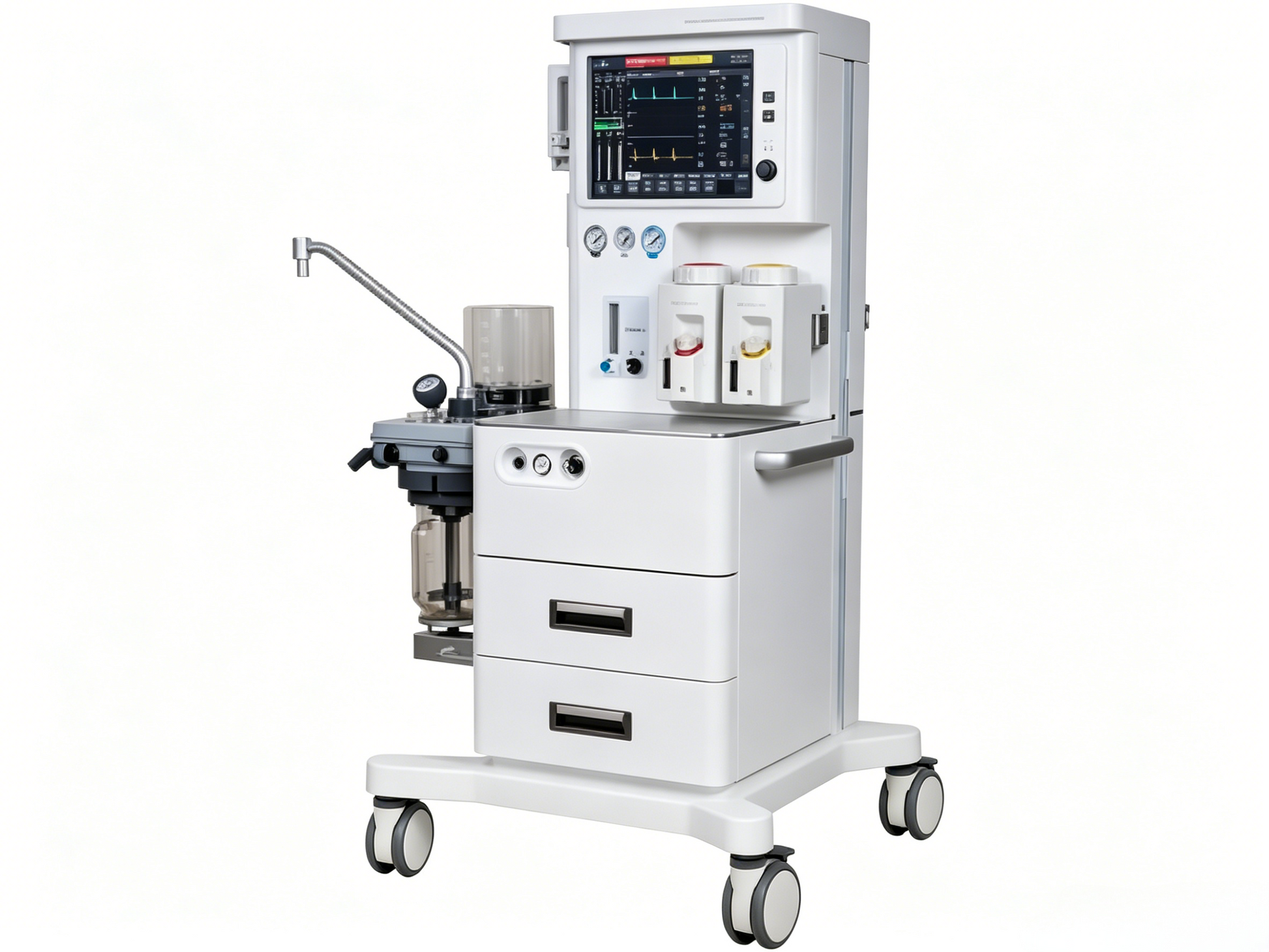

GHM S15A Pro Anesthesia Machine #

Advanced Clinical Performance for Modern Operating Rooms

The GHM S15A Pro is a high-performance anesthesia workstation designed to deliver precision, safety, and efficiency. With a large touchscreen interface and comprehensive ventilation modes, it meets the demands of both adult and pediatric anesthesia.

Key Features:

• 15" Colorful LCD Touchscreen
  Intuitive, high-resolution display for easy monitoring and parameter adjustment.

• Proportional Valve Technology
  Enables precise gas delivery and rapid response to flow changes.

• Electronic Flow Meter
  Accurate digital measurement and control of fresh gas flow.

• Comprehensive Ventilation Modes
  Includes IPPV (VCV), A/C (SIPPV), PCV, SIMV, SIGH, MANUAL, PSV, and PRVC – suitable for a wide range of patient needs.

• Standard On-Screen ETCO₂ Monitoring
  Real-time capnography for enhanced patient safety.

• Optional Anesthetic Gas Module
  Available on-screen for advanced agent monitoring.

• Built-in Battery (≥2 hours)
  Ensures uninterrupted operation during patient transport or power outages.

• Top Light
  Improves visibility around the breathing circuit and work area.

• 2-Liter Absorber Capacity
  Reduces the frequency of soda lime changes during long procedures.

• Two Vaporizer Positions
  Standard configuration includes two vaporizers; optional single vaporizer available at a reduced price.

• Oxygen Sensor & ACGO
  Standard oxygen monitoring and Auxiliary Common Gas Outlet for emergency use.

• Sturdy Four Castors with Brake
  Smooth mobility with secure locking.

• Wide Power Compatibility
  Operates on 100V–240V, 50/60Hz – ideal for global use.

• Graphical Display Modes
  Pressure-time, flow-time, pressure-volume loop, volume-time, and ETCO₂-time curves for advanced respiratory mechanics monitoring.

• Extensive Adjustable Parameters
  Frequency, inspiratory time, tidal volume (0–1500ml), PEEP (0–30 cmH₂O), pressure control (5–60 cmH₂O), trigger sensitivity, sigh, apnea ventilation, and more.

Why Choose the GHM S15A Pro?

• Reliable & Cost-Effective – Premium features at a competitive EXW price of $11,988.

• Global Standard Compliance – Compatible with O₂, N₂O, and AIR sources (280–600 kPa).

• One-Year Free Warranty + Lifetime Maintenance – Peace of mind with long-term support.
