Global Healthcare Medical

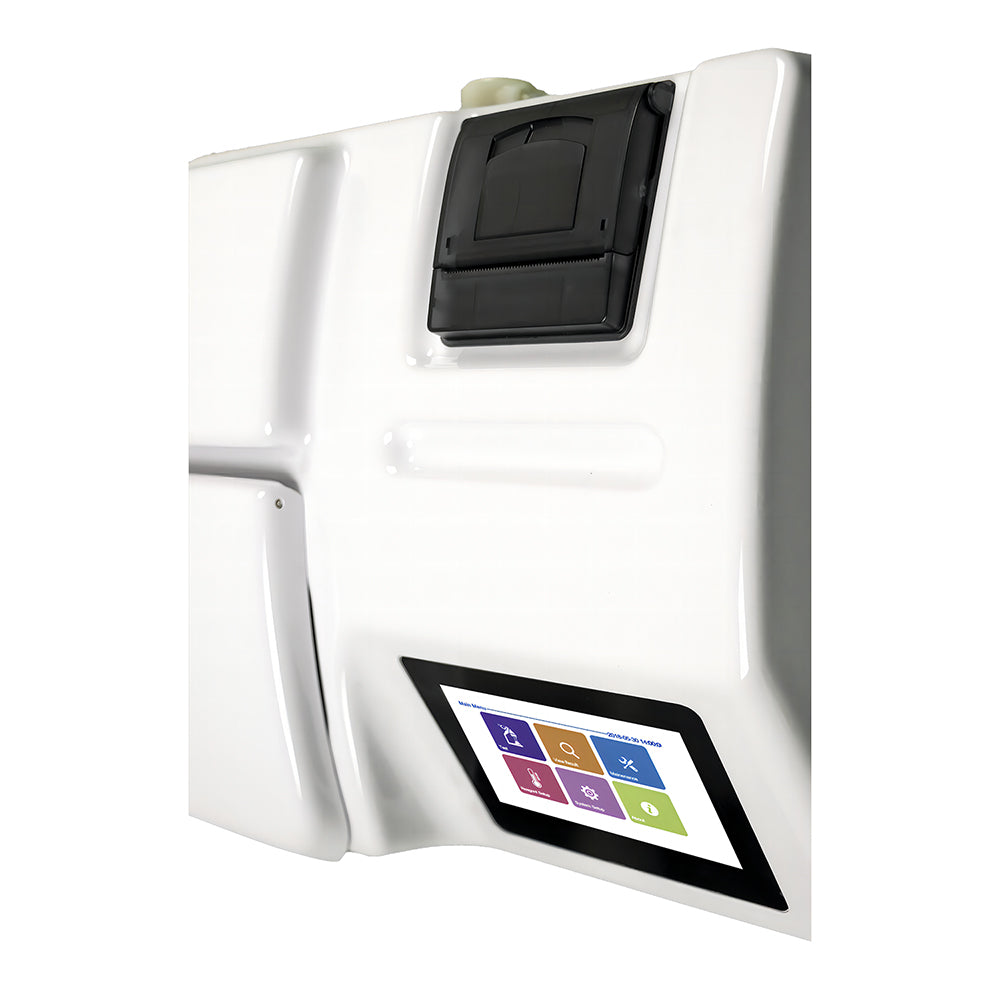

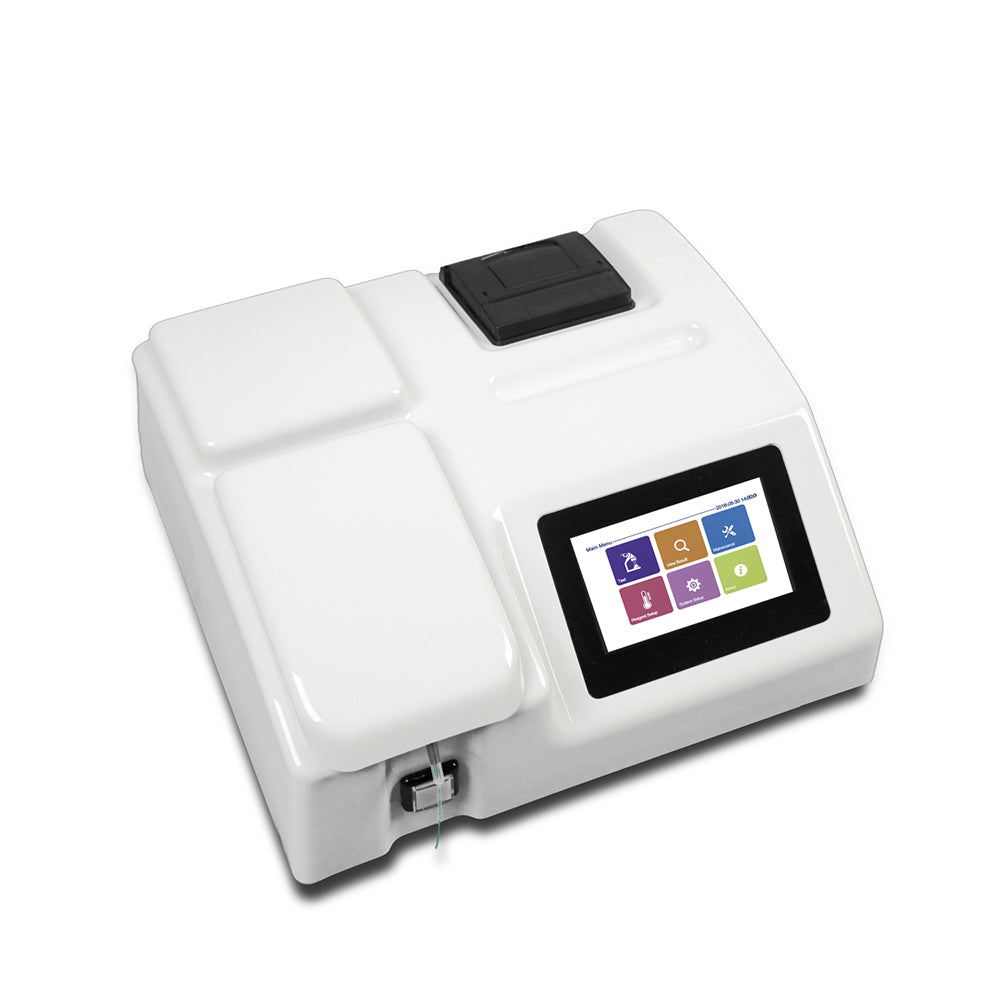

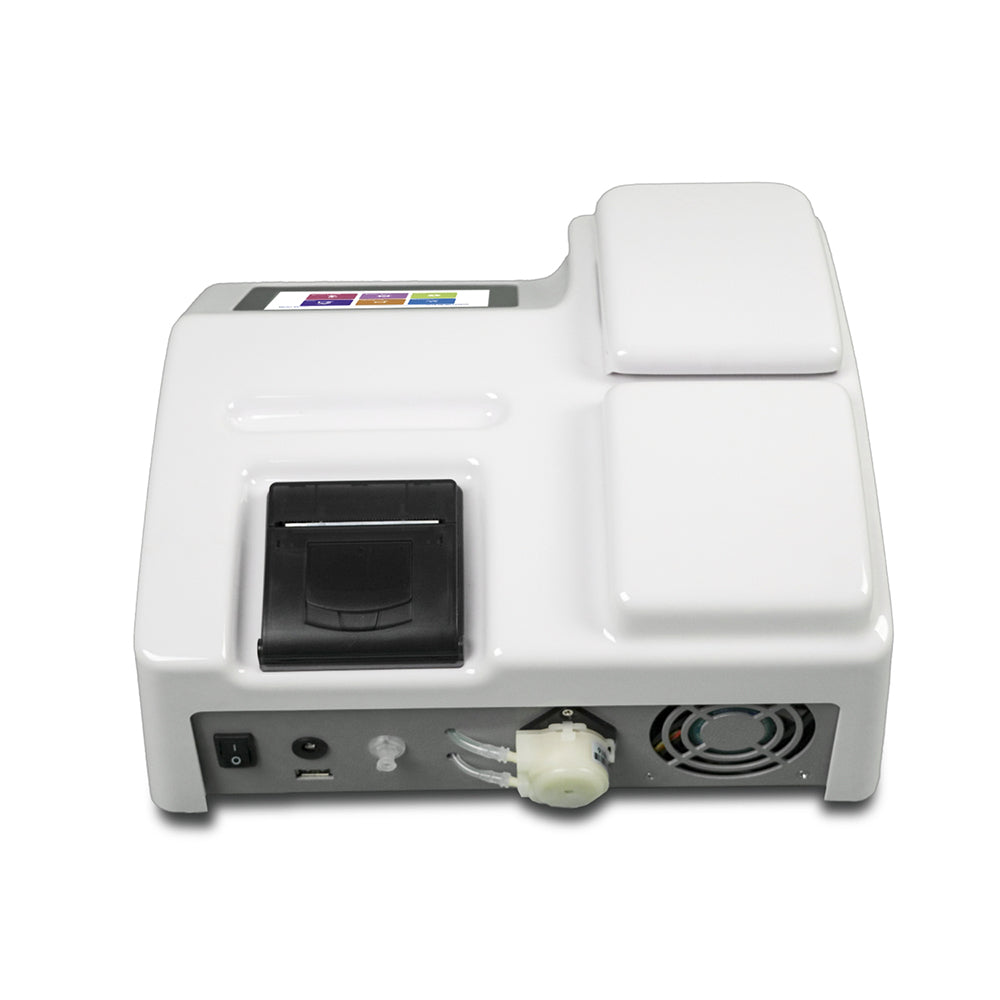

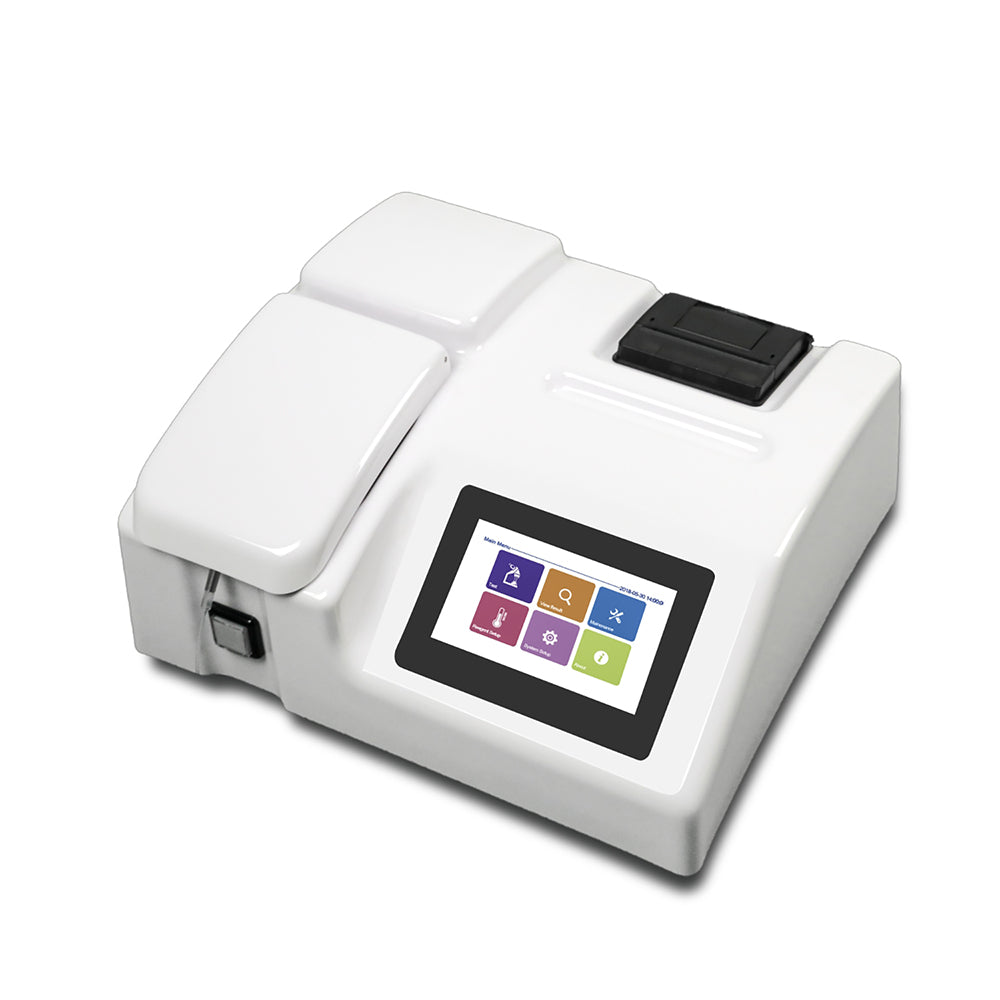

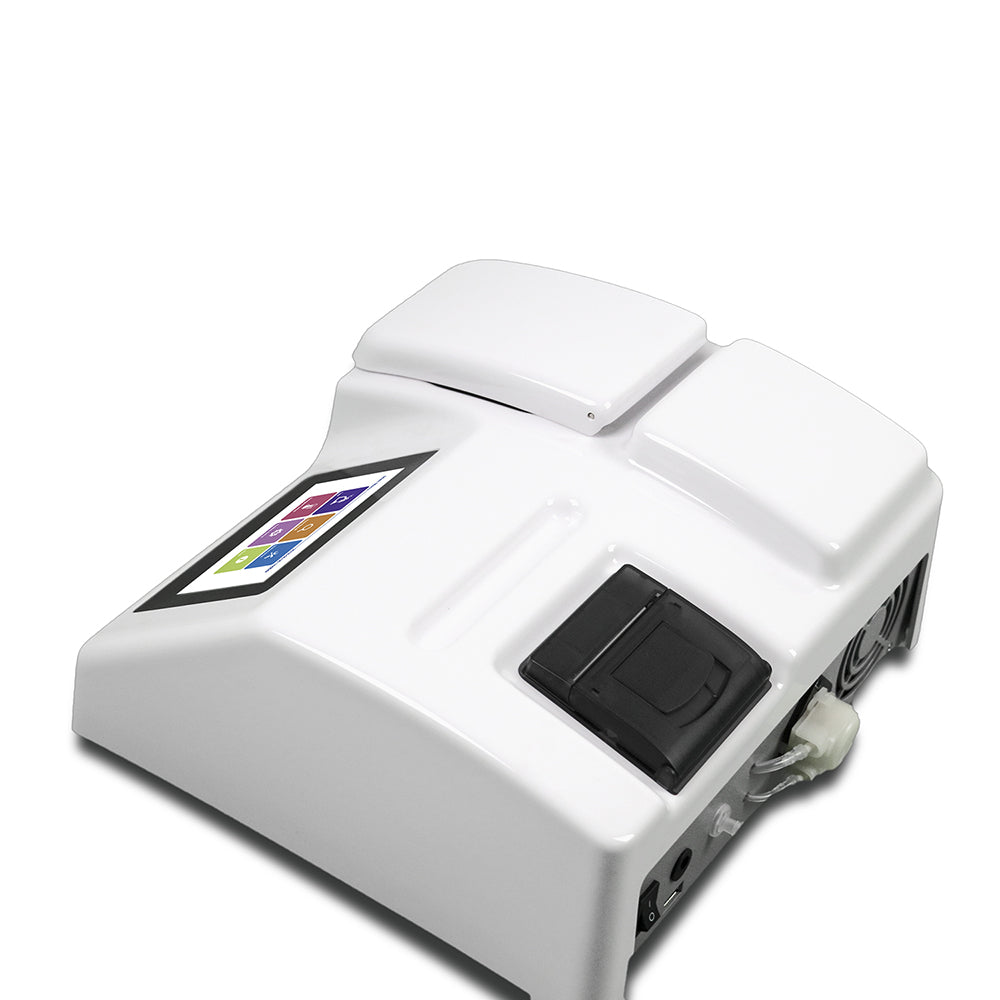

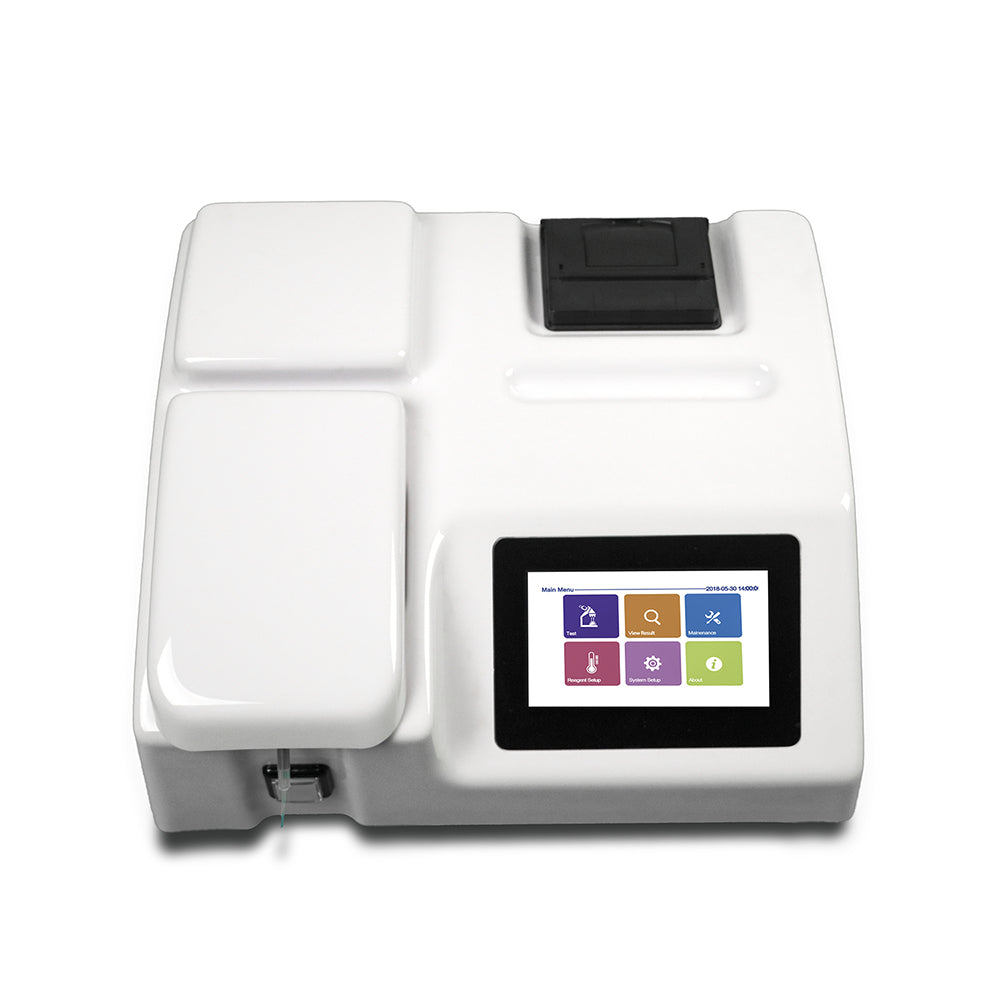

Semi Automatic Chemistry Analyzer Biochemistry Analyzer #
Semi Automatic Chemistry Analyzer Biochemistry Analyzer #
Couldn't load pickup availability
Model:GHM030414S
A Semi-Automatic Chemistry Analyzer is a type of clinical laboratory equipment used to measure biochemical substances in patient samples—commonly blood, serum, plasma, or urine. Unlike fully automated analyzers, it requires manual steps for sample preparation or reagent loading, but automates the measurement process. It is widely used in small to medium-sized labs, clinics, and hospitals, particularly in cost-sensitive or low-throughput environments.
*Windows embedded compact 7 smart operation system
*4.3" inch true color touch screen(800*480 pixels)
*Flow cell & cuvette testing mode
*Huge storage of more than 300 programs & 1000 sample results
Specifications:
|
Test method |
1point end,2 point end(Sample blank),Kinetics,Fixed-time |
|
Optics |
6 standard filters:340nm,405nm,505nm, 546nm,578nm,630nm |
|
Lamp house |
Long-life tungsten halogen lamp(6V/10W),auto-sleep function |
|
Display |
4.3"TFT LCD with touch screen,800* 480 pixels |
|
Printer |
Built-in thermal printer,57mm printer paper |
|
Flow cell capacity & optical path |
32μl, 10mm |
|
Resolution |
0.0001 Abs |
|
Photometric range |
0.0000-3.0000 Abs |
|
CPU |
ARM Cortex-M3,120M Hz |
|
Memory |
Over 300 programs,1000 results can be stored |
|
Interface |
1USB Port.External keyboard,mouse facility |
|
Power requirement |
Wide power supply AC 100 240V,50/60 Hz |
|
External dimension |
300mm*270mm*150mm(L*W*H) |
|
Weight |
3.4KG |
